Home >> Plymouth >> 1994 >> Colt L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> Part 1 of 2

Part 1 of 2

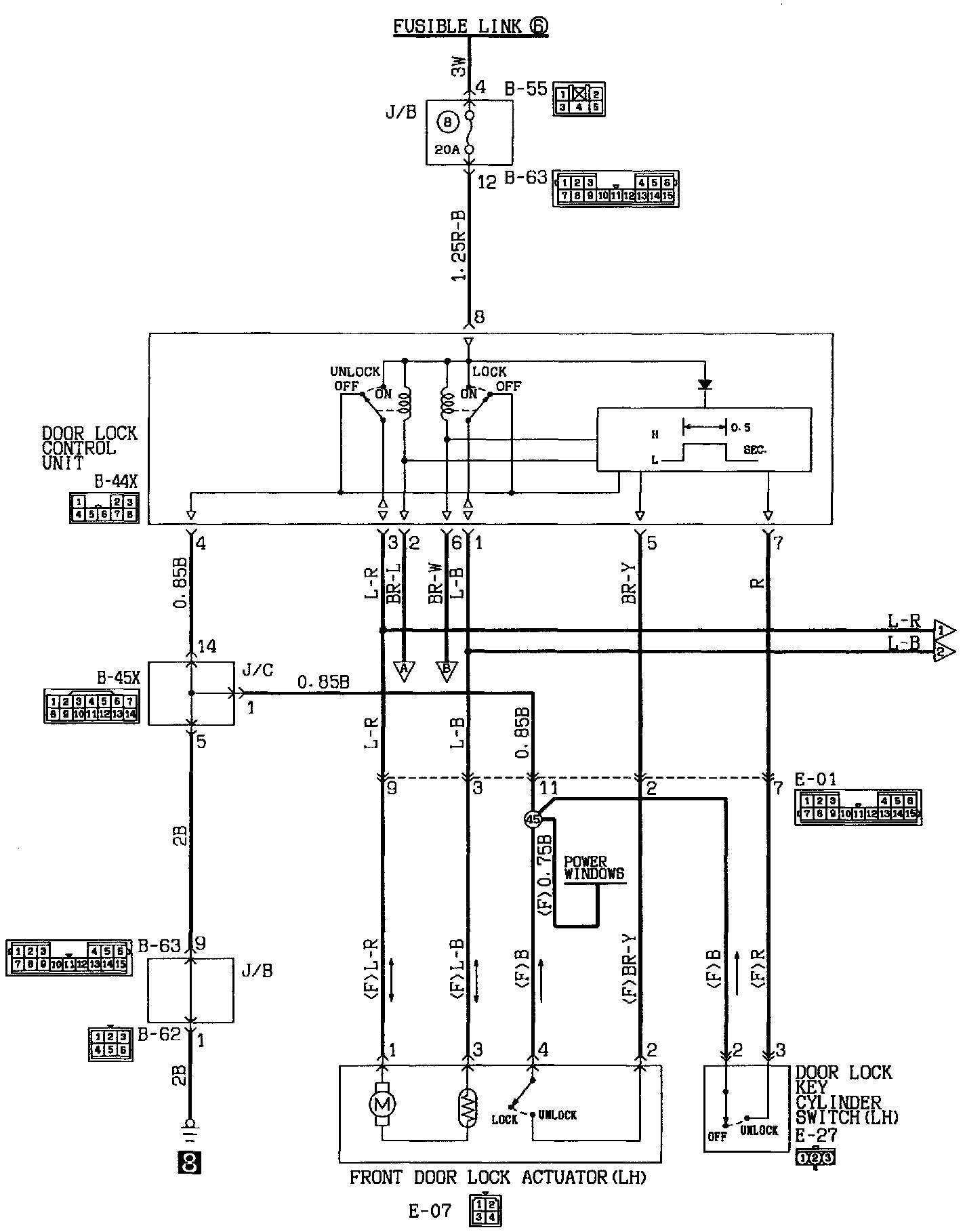

Central Door Locking Circuit <4-Door Models Only> (Part 1 Of 2):
