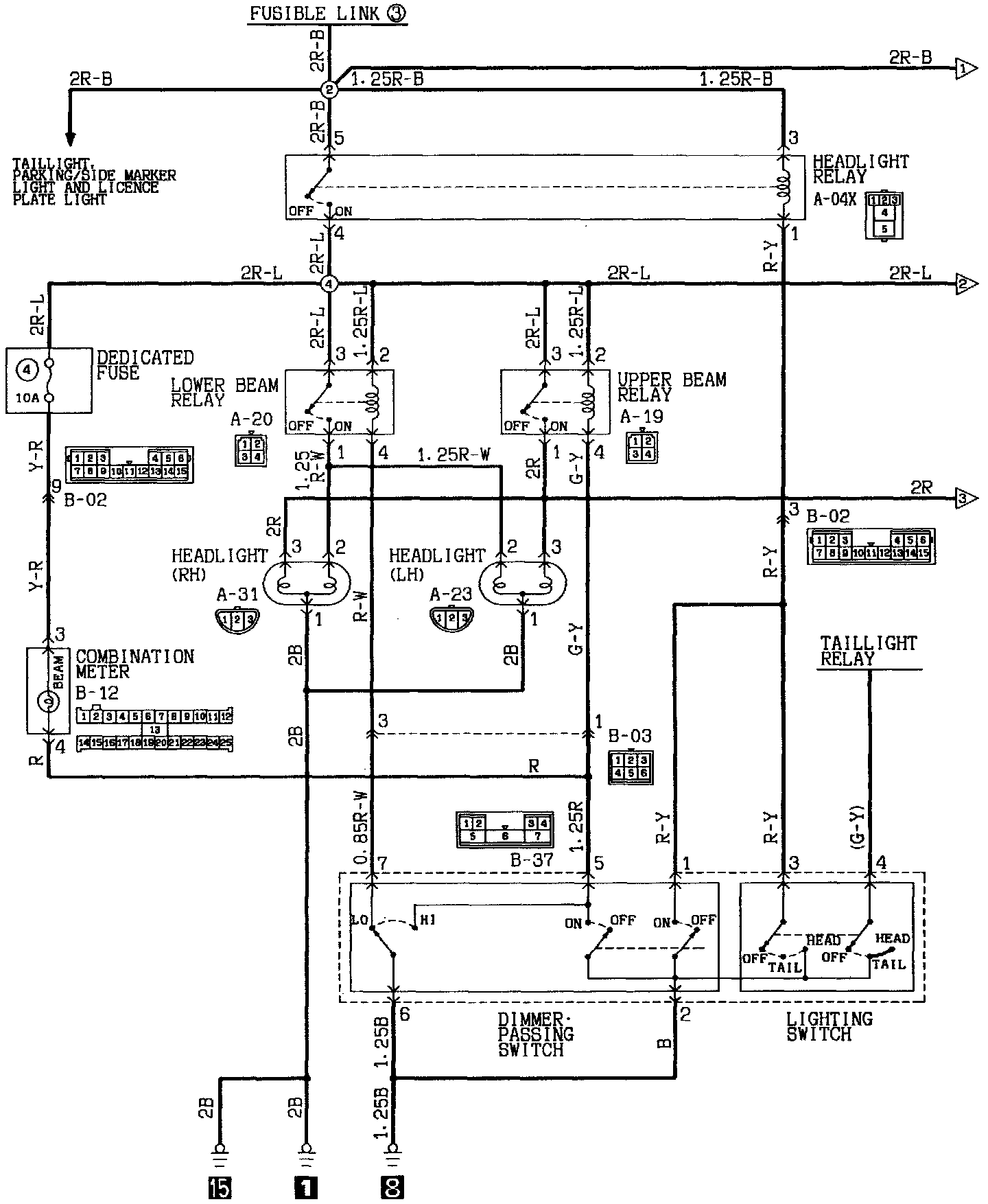

Headlight Circuit Diagram <Vehicles For CANADA> (Part 1 Of 2):
Headlight Circuit Diagram <Vehicles For CANADA> (Part 2 Of 2):
