4-Door Models For CANADA

Parking And Side-Marker Light, Hazard Light Circuit Diagram <4-Door Models For CANADA> (Part 1 Of 2):

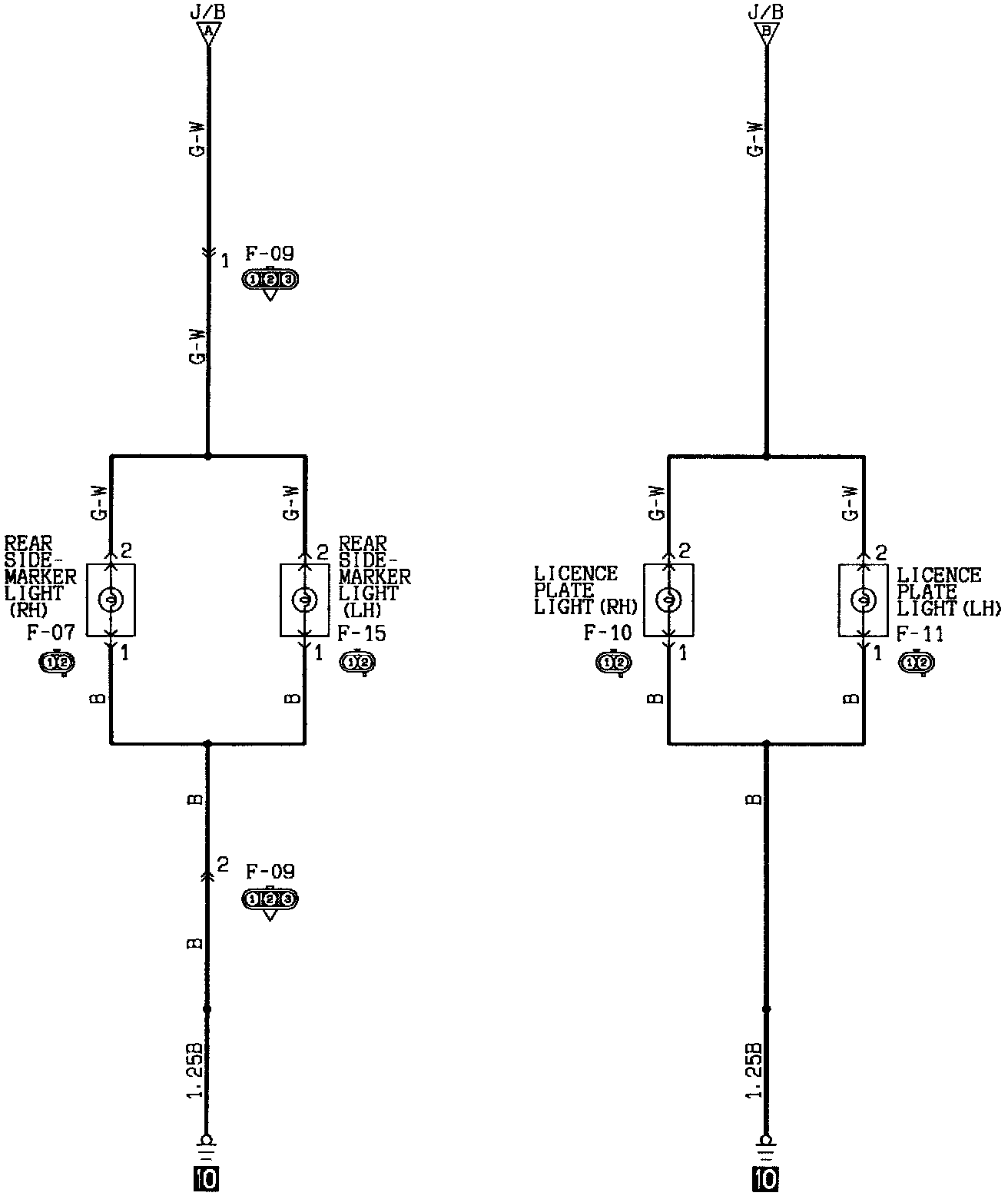

Parking And Side-Marker Light, Hazard Light Circuit Diagram <4-Door Models For CANADA> (Part 2 Of 2):
