Connector A - 01 to 34

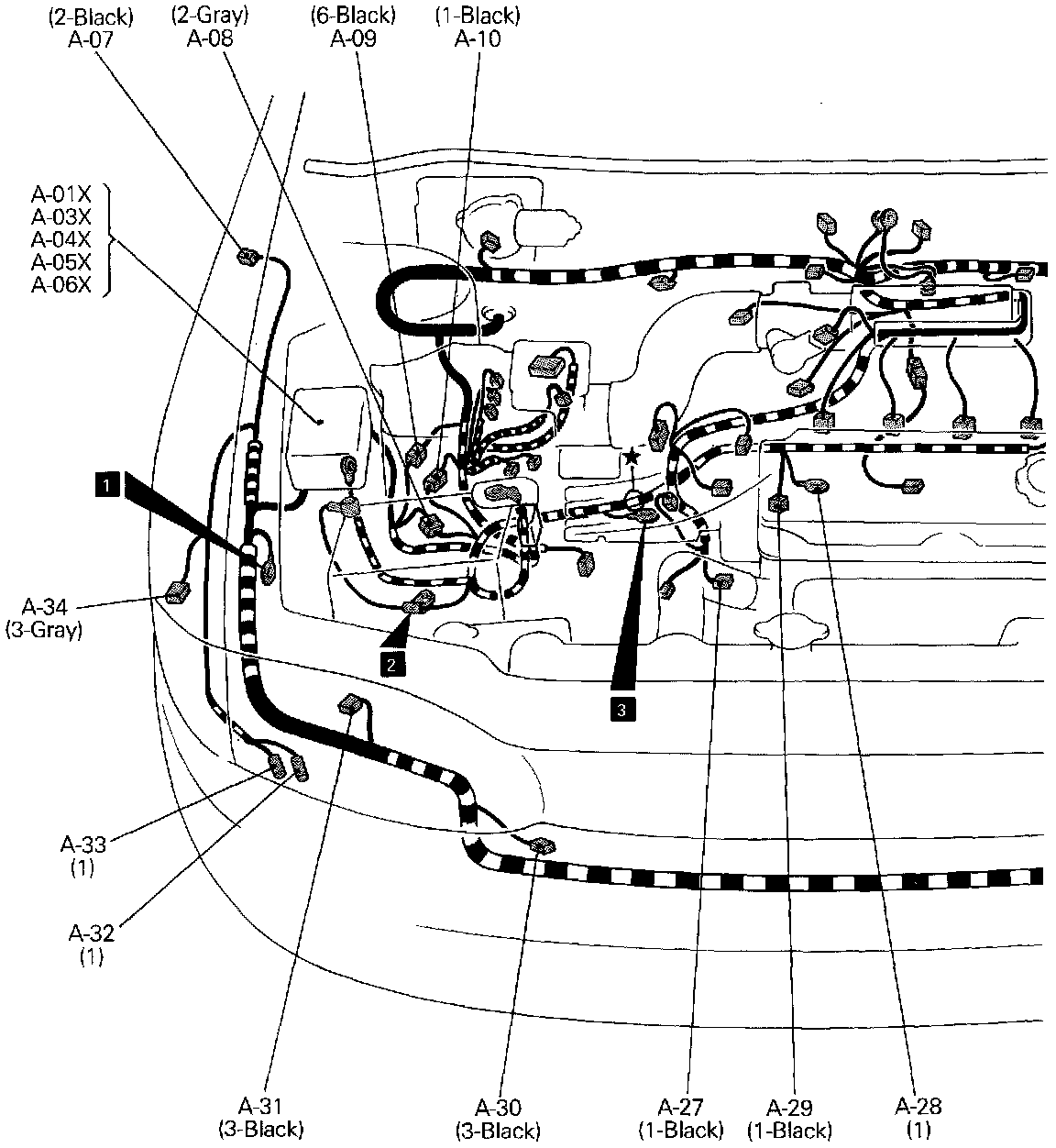

Connector [A-01] - [A-34] (Part 1 Of 2):

Connector [A-01] - [A-34] (Part 2 Of 2):

Vehicles With Daytime Running Light:

A-01X to A-06X Refer to CENTRALIZED JUNCTION
A-01X Generator relay
A-02X -
A-03X Radiator fan motor relay
A-04X Headlight relay
A-05X Taillight relay
A-06X IOD or storage connector
A-07 ABS speed sensor (Front: RH)
A-08 Front wiring harness and battery cable assembly combination
A-09 Front wiring harness and control wiring harness combination
A-10 Control wiring harness and battery cable assembly combination
A-11 ABS speed sensor (Front: LH)
A-12 ABS hydraulic unit
A-13 ABS hydraulic unit
A-14 Auto-cruise control actuator
A-15 Front turn signal light (LH)
A-16 ABS valve relay
A-17 ABS motor relay
A-18 DRL control unit
A-19 Upper beam relay
A-20 Lower beam relay
A-21 Horn (LH)
A-22 Horn (LH)
A-23 Headlight (LH)
A-24 Power steering pressure switch
A-25 Generator
A-26 Generator
A-27 Oil pressure switch
A-28 Starter
A-29 Starter
A-30 Radiator fan assembly
A-31 Headlight (RH)
A-32 Horn (RH)
A-33 Horn (RH)
A-34 Front turn signal light (RH)

Remarks:
1. The mark "STAR" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example: [1]), refer to Grounding Locations.
3. "-" means that the connector with code-number is not used.
