Connector A - 35 to 69

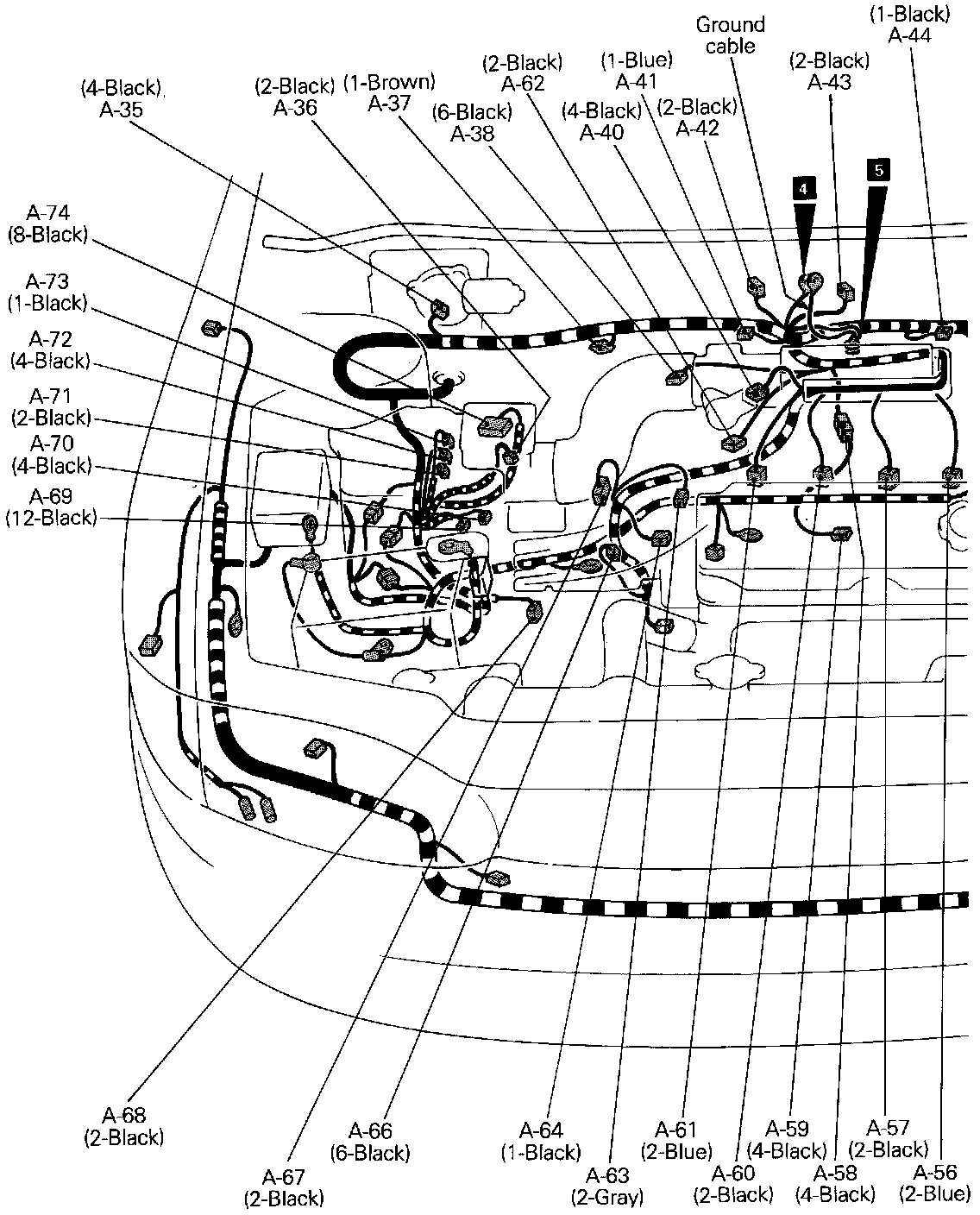

Connector [A-35] - [A-75] (Part 1 Of 2):

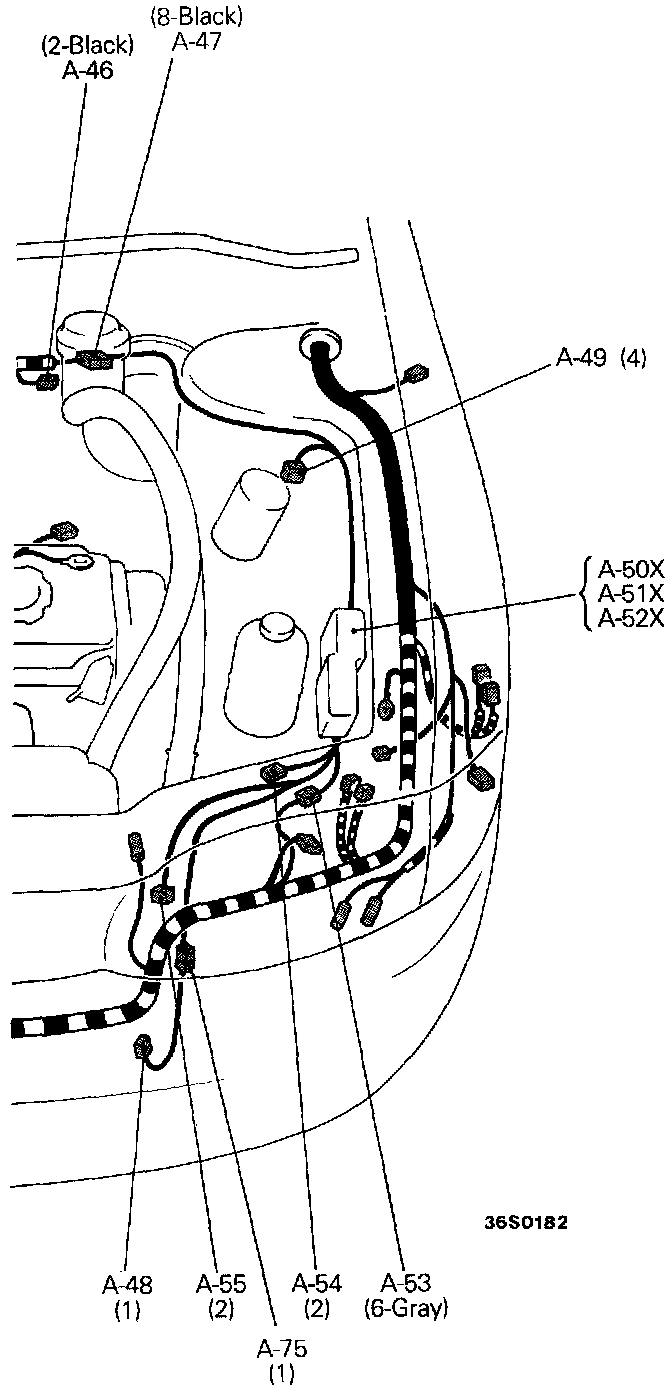

Connector [A-35] - [A-75] (Part 2 Of 2):

A-35 Windshield wiper motor
A-36 Windshield washer motor
A-37 Ignition timing adjustment connector
A-38 Idle air control motor
A-39 -
A-40 Throttle position sensor
A-41 Engine speed detection connector
A-42 EGR solenoid
A-43 Evaporative emission purge solenoid
A-44 Fuel pump check connector
A-45 -
A-46 Brake fluid level switch
A-47 Control wiring harness and A/C wiring harness combination
A-48 Magnetic clutch and refrigerant temperature switch
A-49 Triple pressure switch
A-50X thru A-52X Refer to CENTRALIZED JUNCTION
A-50X Condenser fan motor relay
A-51X Fan motor control relay
A-52X A/C compressor clutch relay
A-53 Front wiring harness and A/C wiring harness combination
A-54 Resistor
A-55 Condenser fan motor
A-56 Injector No.1
A-57 Injector No.2
A-58 Control wiring harness and heated oxygen sensor wiring harness combination
A-59 Heated oxygen sensor (front)
A-60 Injector No.3
A-61 Injector No.4
A-62 EGR temperature sensor
A-63 Engine coolant temperature sensor
A-64 Engine coolant temperature gauge unit
A-65 -
A-66 Distributor assembly
A-67 Distributor assembly
A-68 Back-up light switch
A-69 Park/neutral position switch
A-70 4A/T control solenoid valve
A-71 A/T fluid temperature sensor
A-72 Pulse generator
A-73 Kickdown servo switch
A-74 Volume air flow sensor
A-75 A/C wiring harness and A/C joint harness combination

Remarks:
1. The mark "STAR" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example: [1]), refer to Grounding Locations.
3. "-" means that the connector with code-number is not used.
