4-Door Models

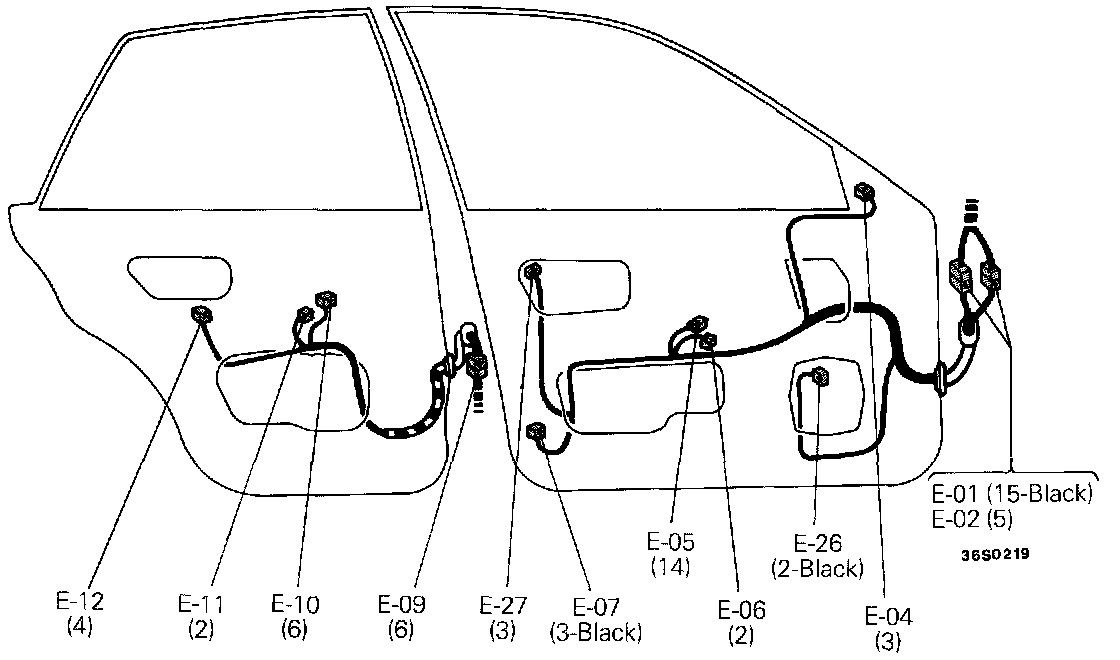

Connector [E] - Driver's Side Door:

Connector [E] - Passenger's Side Door:

E-01 Body wiring harness and front door wiring harness
E-02 (LH) combination
E-03 -
E-04 Remote controlled mirror (LH)
E-05 Power window main switch
E-06 Front power window motor (LH)
E-07 Front door lock actuator (LH)
E-08 -
E-09 Body wiring harness and rear door wiring harness (LH) combination
E-10 Rear power window sub switch (LH)
E-11 Rear power window motor (LH)
E-12 Rear door lock actuator (LH)
E-13 Body wiring harness and front door wiring harness
E-14 (RH) combination
E-15 Body wiring harness and door wiring harness (RH) combination

E-16 Remote controlled mirror (RH)
E-17 Door lock switch (RH)
E-18 Front power window motor (RH)
E-19 Front power window sub-switch
E-20 Front door lock actuator (RH)
E-21 Door latch switch (RH)
E-22 Body wiring harness and rear door wiring harness (RH) combination
E-23 Rear power window sub switch (RH)
E-24 Rear power window motor (RH)
E-25 Rear door lock actuator (RH)
E-26 Front speaker (LH)
E-27 Door lock key cylinder switch (LH)
E-28 Front speaker (RH)
E-29 Door lock key cylinder switch (RH)
