Air Conditioning System

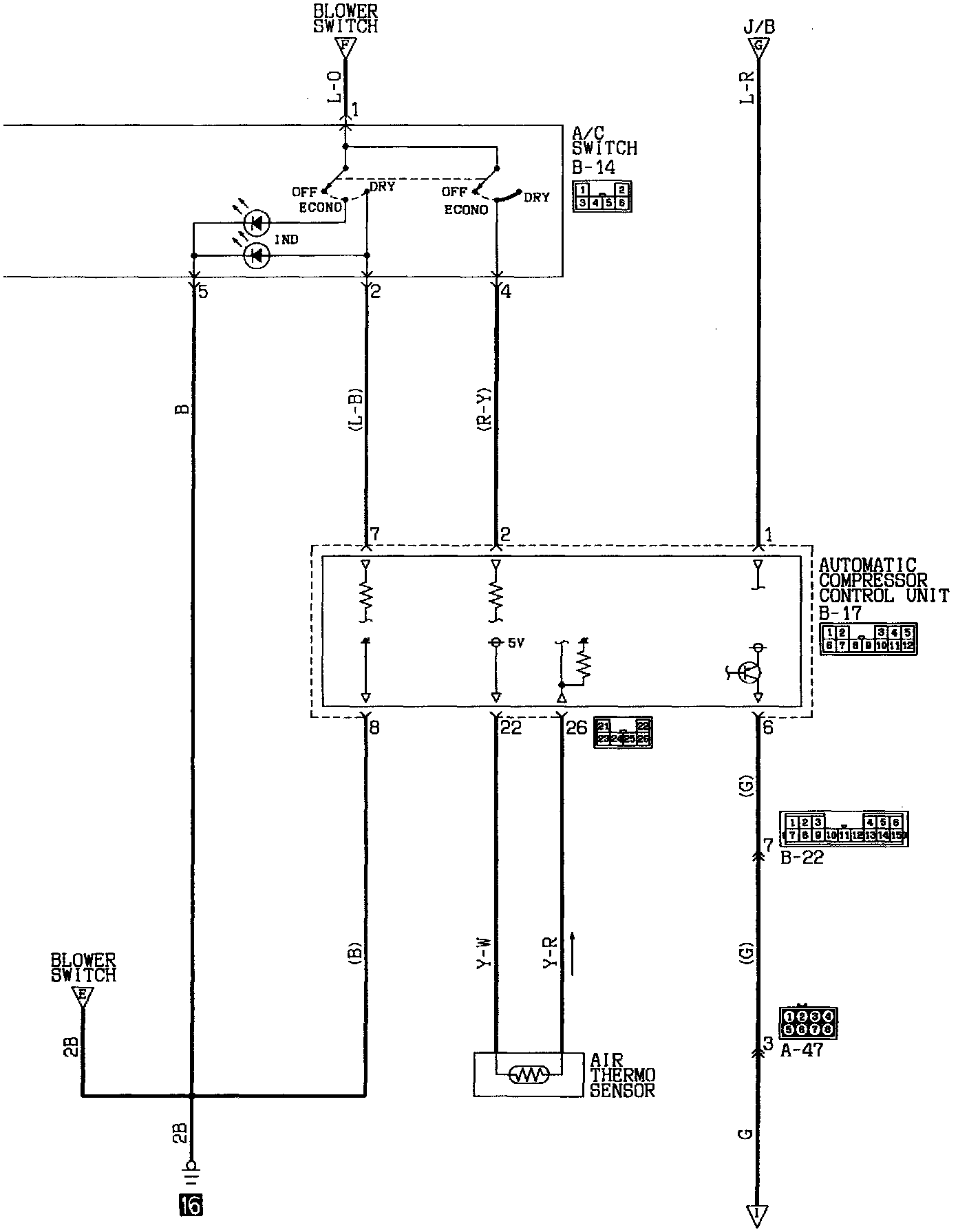

Air Conditioning Circuit (Part 1 Of 7):

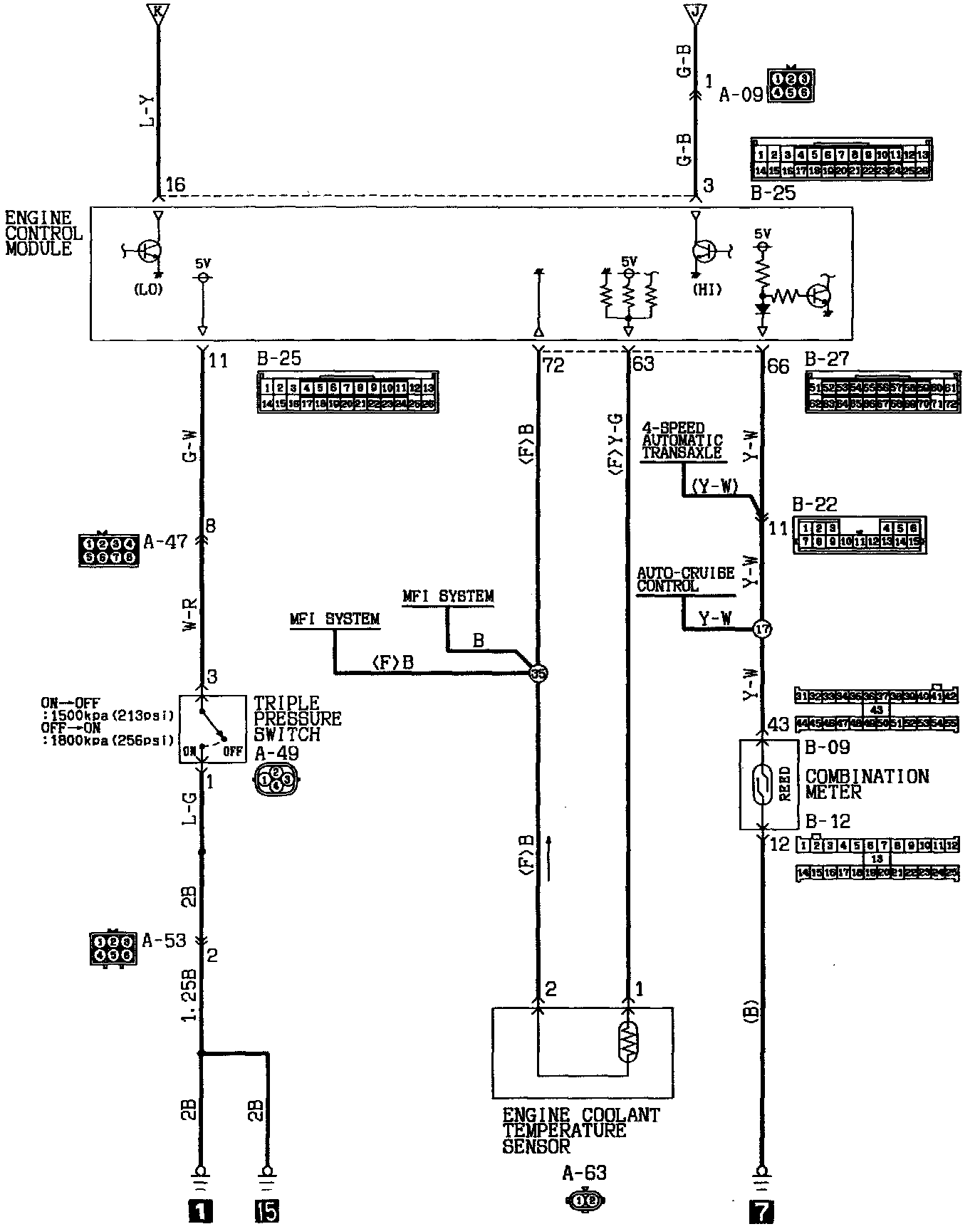

Air Conditioning Circuit (Part 2 Of 7):

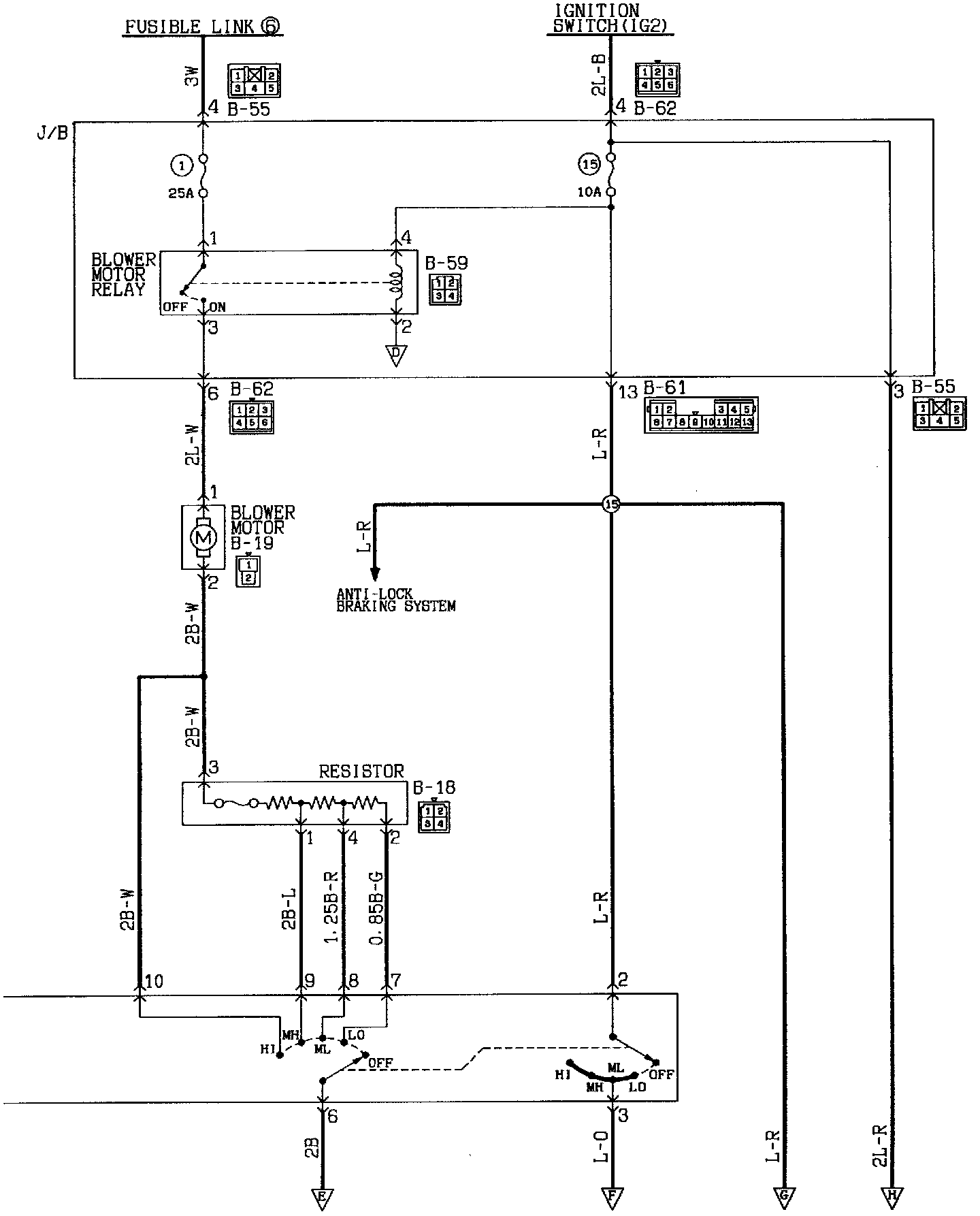

Air Conditioning Circuit (Part 3 Of 7):

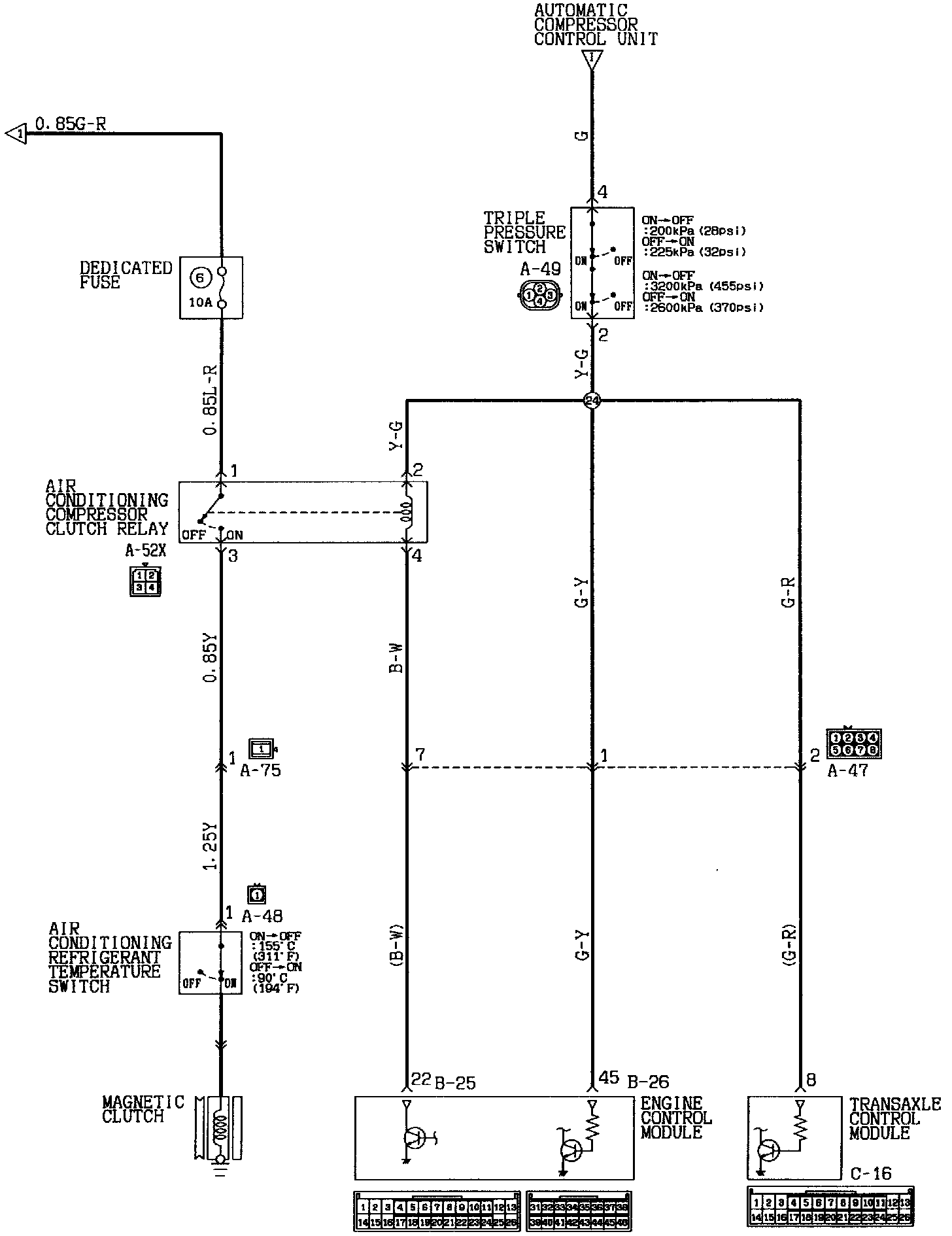

Air Conditioning Circuit (Part 4 Of 7):

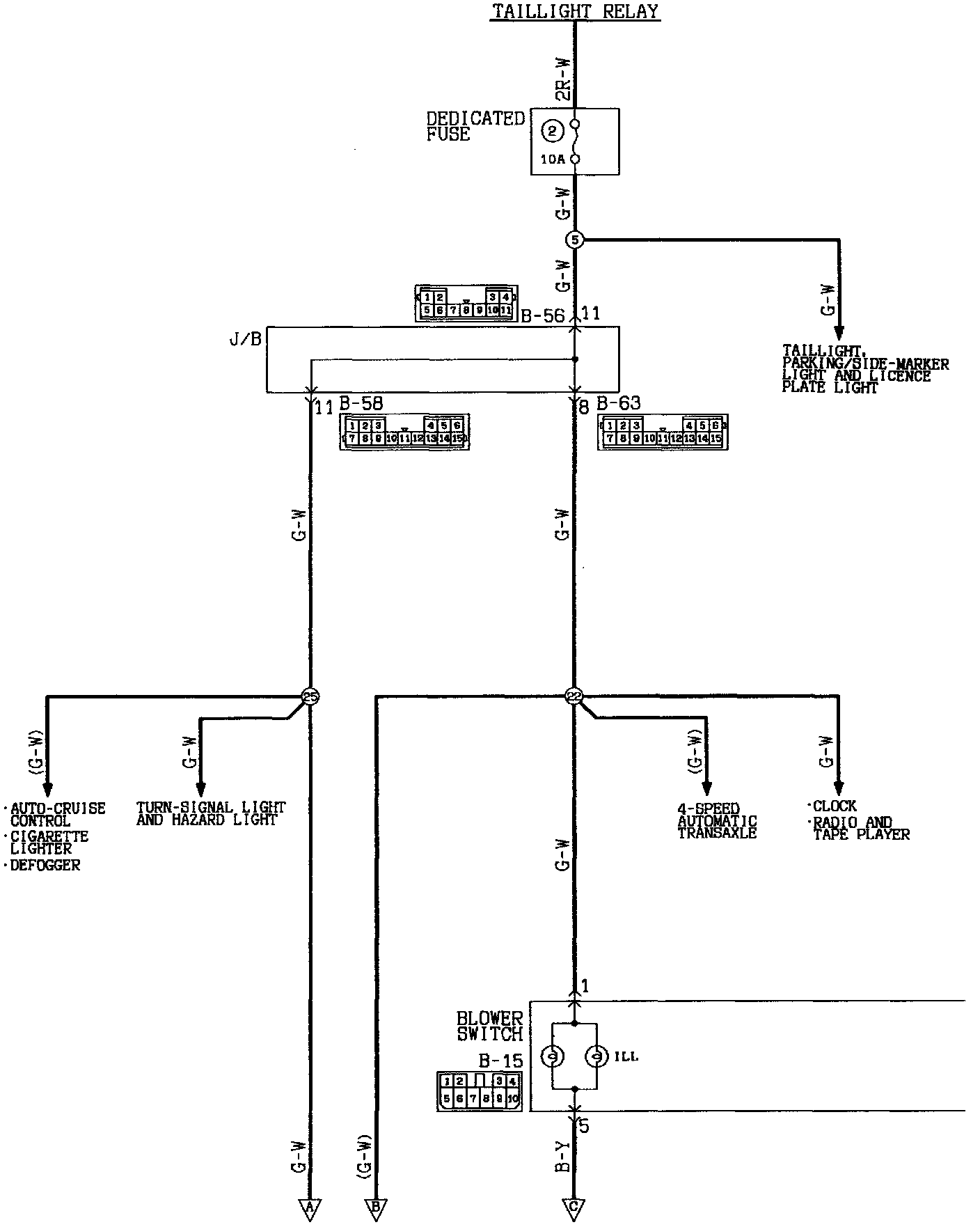

Air Conditioning Circuit (Part 5 Of 7):

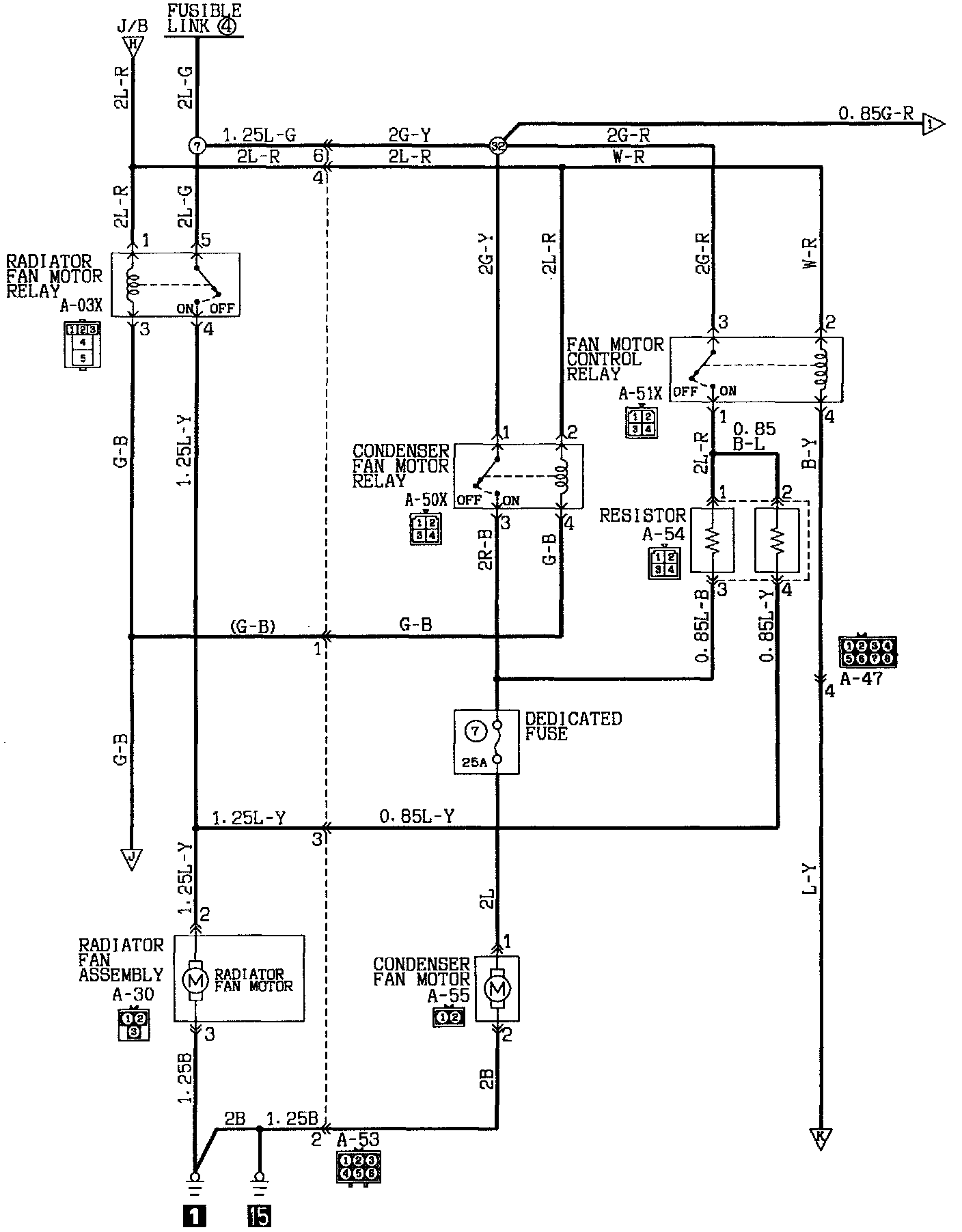

Air Conditioning Circuit (Part 6 Of 7):

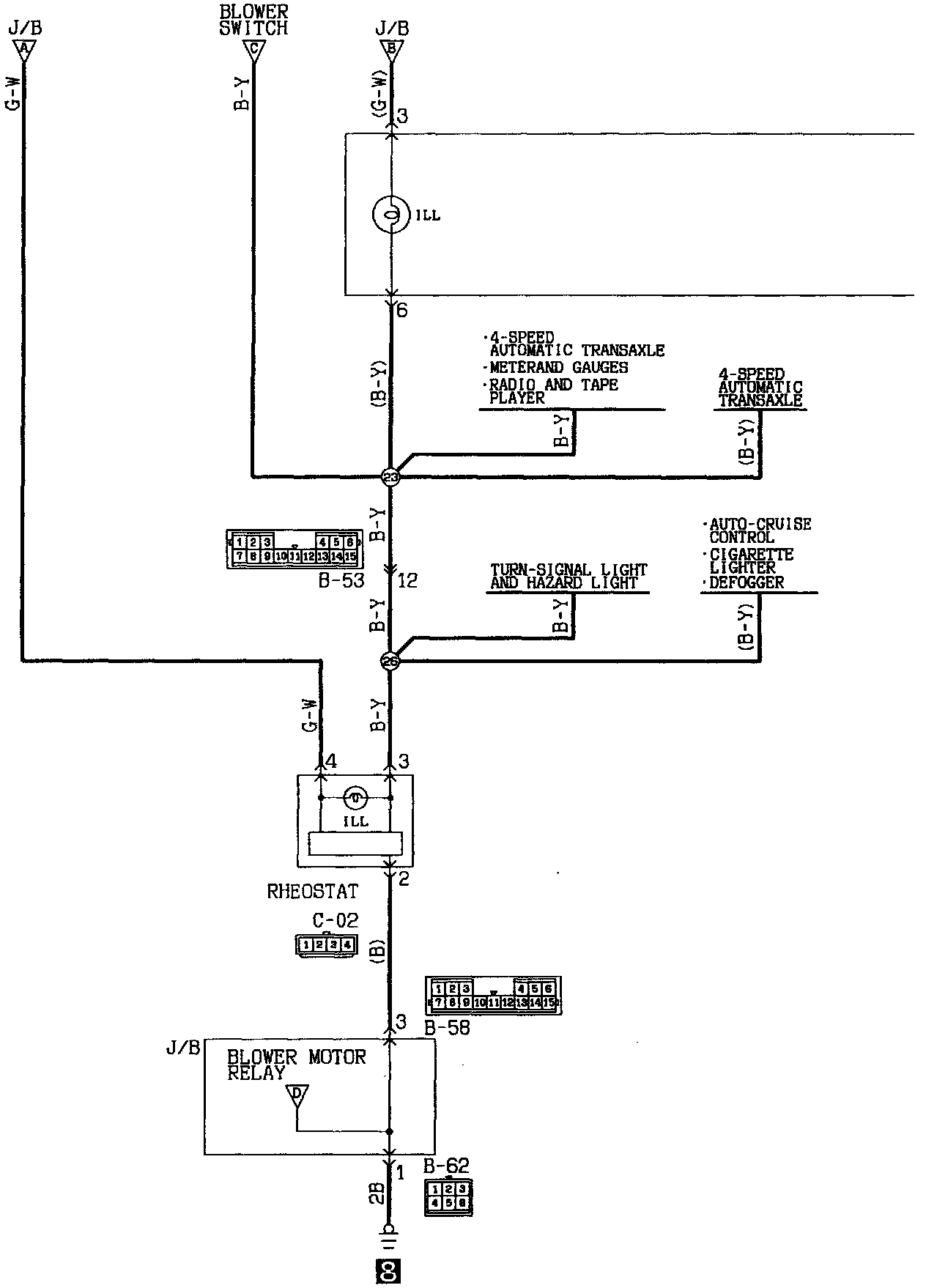

Air Conditioning Circuit (Part 7 Of 7):
