Home >> Plymouth >> 1994 >> Colt L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Part 2 of 3

Part 2 of 3

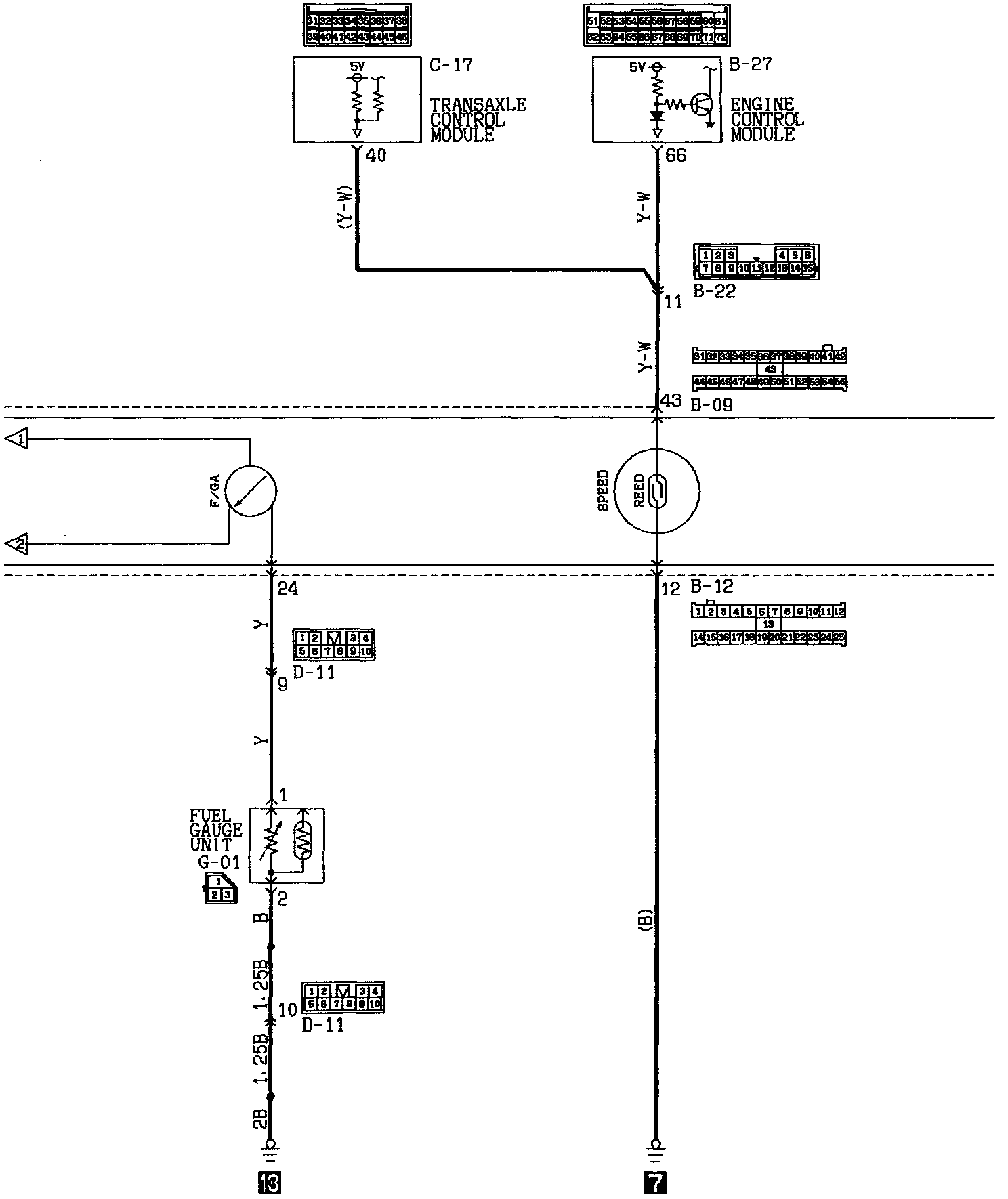

Meters And Gauges Circuit Diagram (Part 2 Of 3):
