Instrument Cluster Replacement

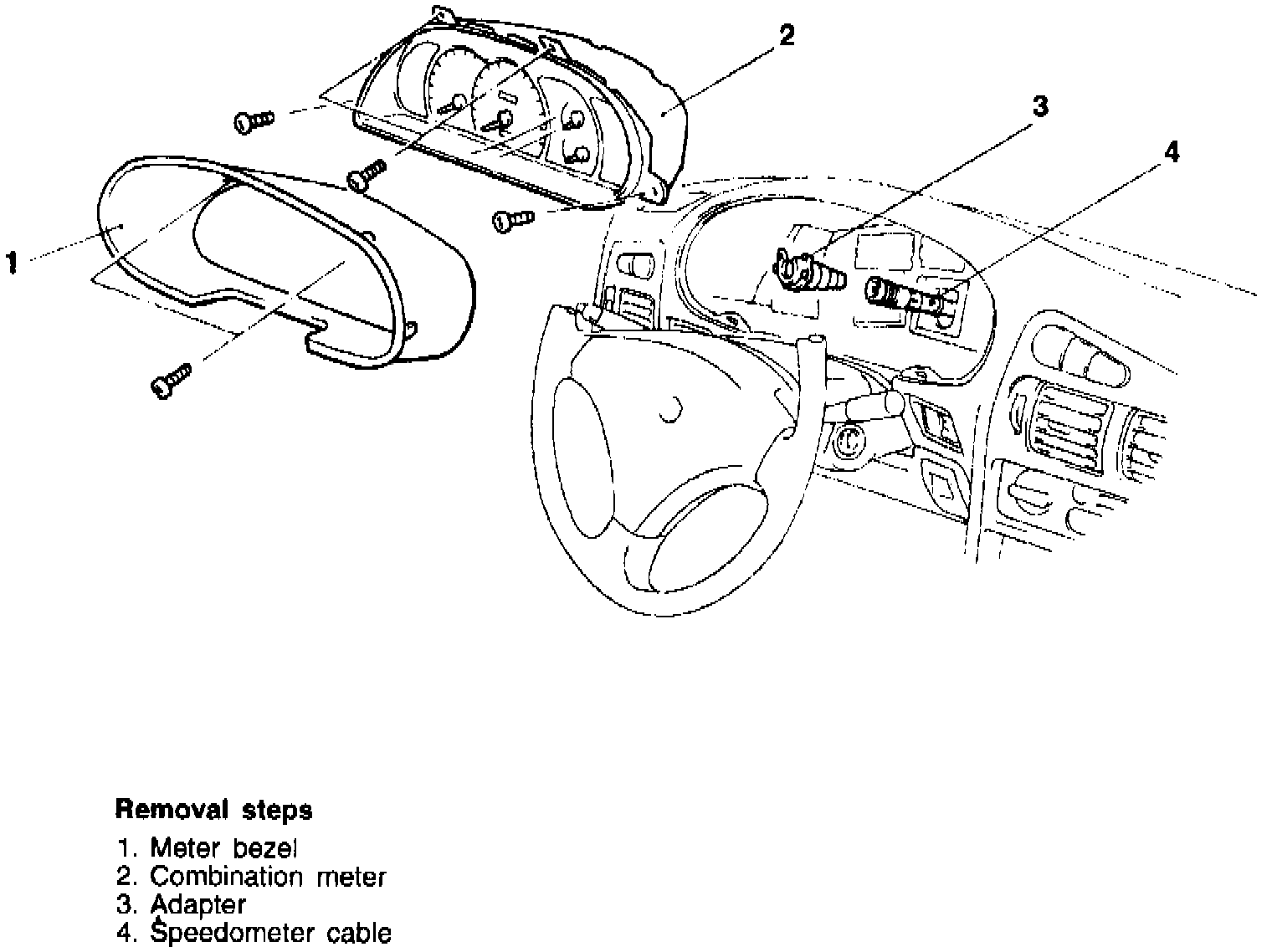

Fig. 4 Instrument Cluster Replacement:

1. Disconnect battery ground cable.
2. Remove meter bezel.
3. Disconnect combination meter then remove from instrument panel.
4. Remove adapter lock, pull speedometer cable slightly into passenger compartment then rear side of adapter from cable.
5. Turn adapter so notched section is aligned with tab on cable side, remove adapter by sliding it backwards.
6. Reverse procedure to install.
