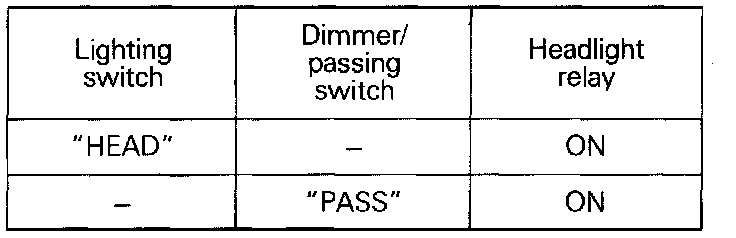

Conditions For Switch-ON Of Headlight Relay:

Conditions for Switch-ON of Headlight Relay

Low-Beam Operation
^ The headlight relay is switched ON when the lighting switch is set to the "HEAD" position.

^ The low beam of the headlights will illuminate when, in this condition, the dimmer/passing switch is set to the "LO" position.

Upper-Beam Operation
^ The headlight relay is switched ON when the lighting switch is set to the "HEAD" position.

^ The high beam of the headlights will illuminate when, in this condition, the dimmer/passing switch is set to the "HI" position.

Upper-Beam Indicator Light
^ This indicator illuminates during use of the high beam of the headlights, and when the passing signal (high beam) is activated, thus indicating that the headlights' high beam is illuminated.

Passing Operation
^ When the dimmer/passing switch is set to the "ON" position, the headlight relay is switched ON and the upper beam of the headlight illuminates.
