Mounting Aimers

Mounting Aimers:

1. If necessary to expose adjusting screws, remove headlight trim rings.

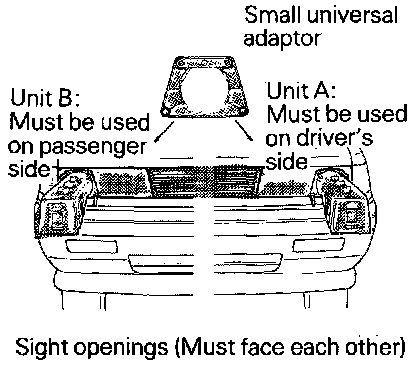

2. Snap proper adaptor into position on each aimer making full contact with aimer mounting flange.

3. Position aimers on headlights by pushing piston handle forward, engaging rubber suction cup. Immediately pull back piston handle until it locks in place.
NOTE:
Steel inserts are molded into position on the adaptor to insure accuracy. These inserts must be in contact with the three guide points on the lights when the aimers are properly positioned.
