Removal and Installation

Headlight Removal:

HEADLIGHT REMOVAL
After removing the inside of the headlight while pulling the bumper towards you as shown in the illustration, remove the outside, and then remove the headlight.
NOTE:
Remove the reservoir tank before removing the right side headlight.

Headlight Installation:

HEADLIGHT INSTALLATION

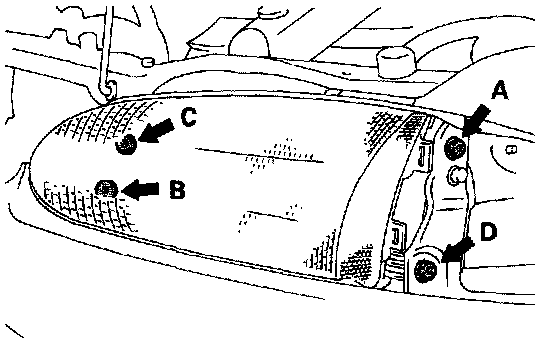

Tighten the mounting nuts in the order A, B, C and D.
