Electrical Diagrams

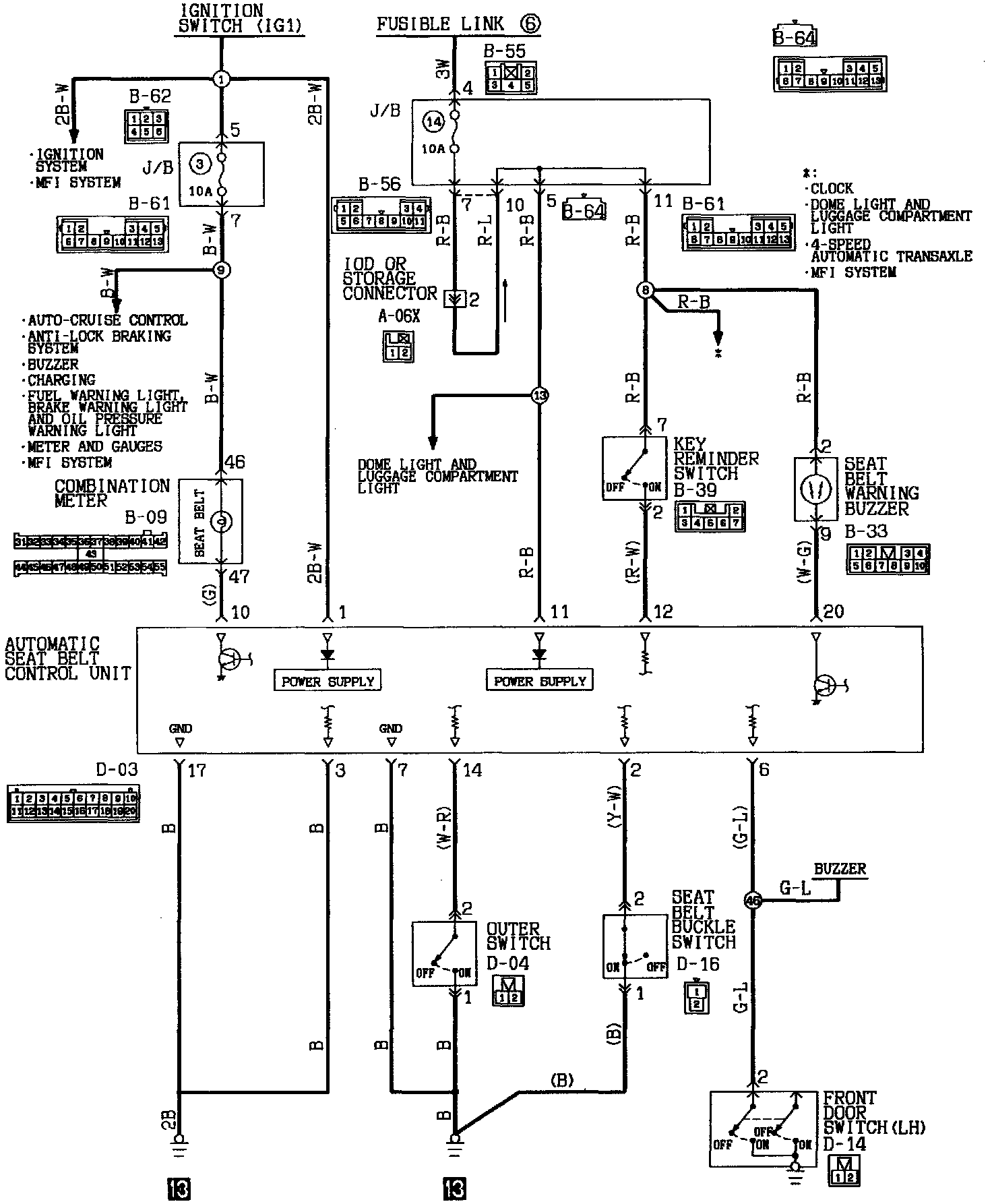

Automatic Seat Belt Circuit <Vehicles For U.S.> (Part 1 Of 2):

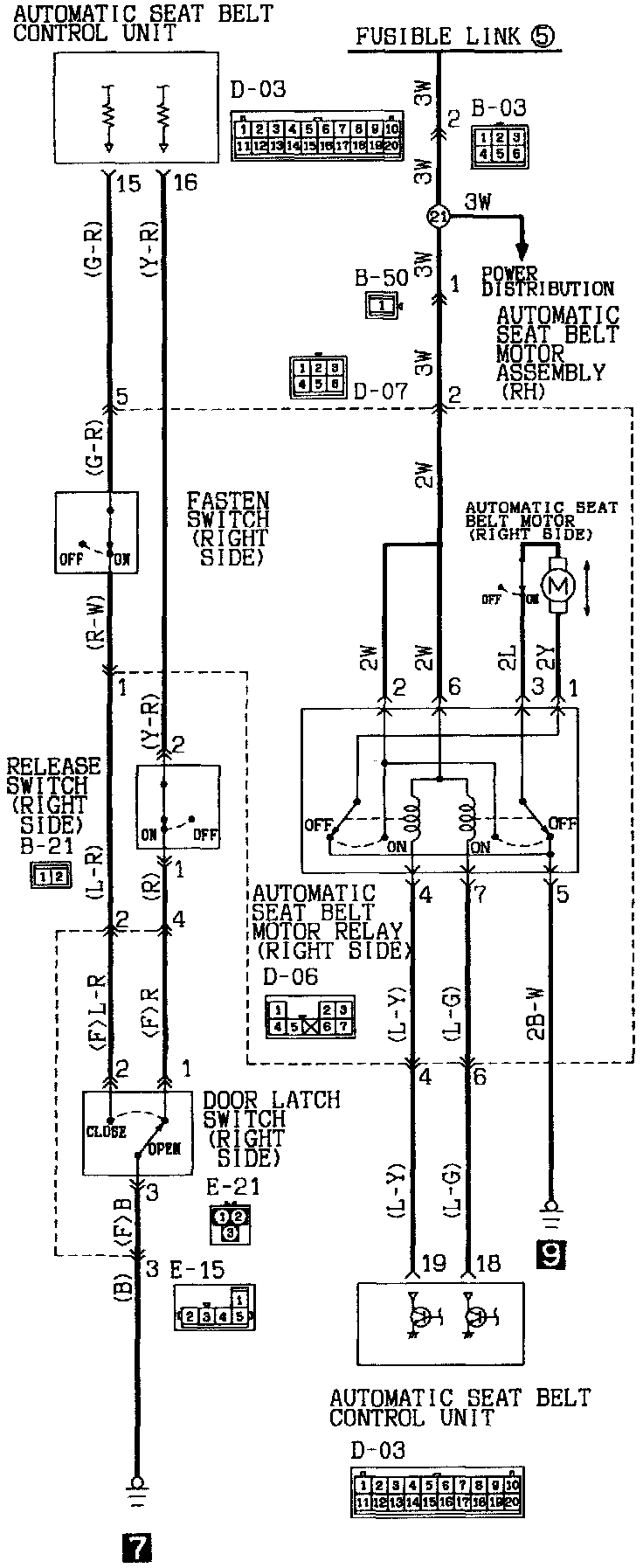

Automatic Seat Belt Circuit <Vehicles For U.S.> (Part 2 Of 2):
