Diagrams
>>
Electrical Diagrams
>>
Without Intermittent Wiper System
Without Intermittent Wiper System

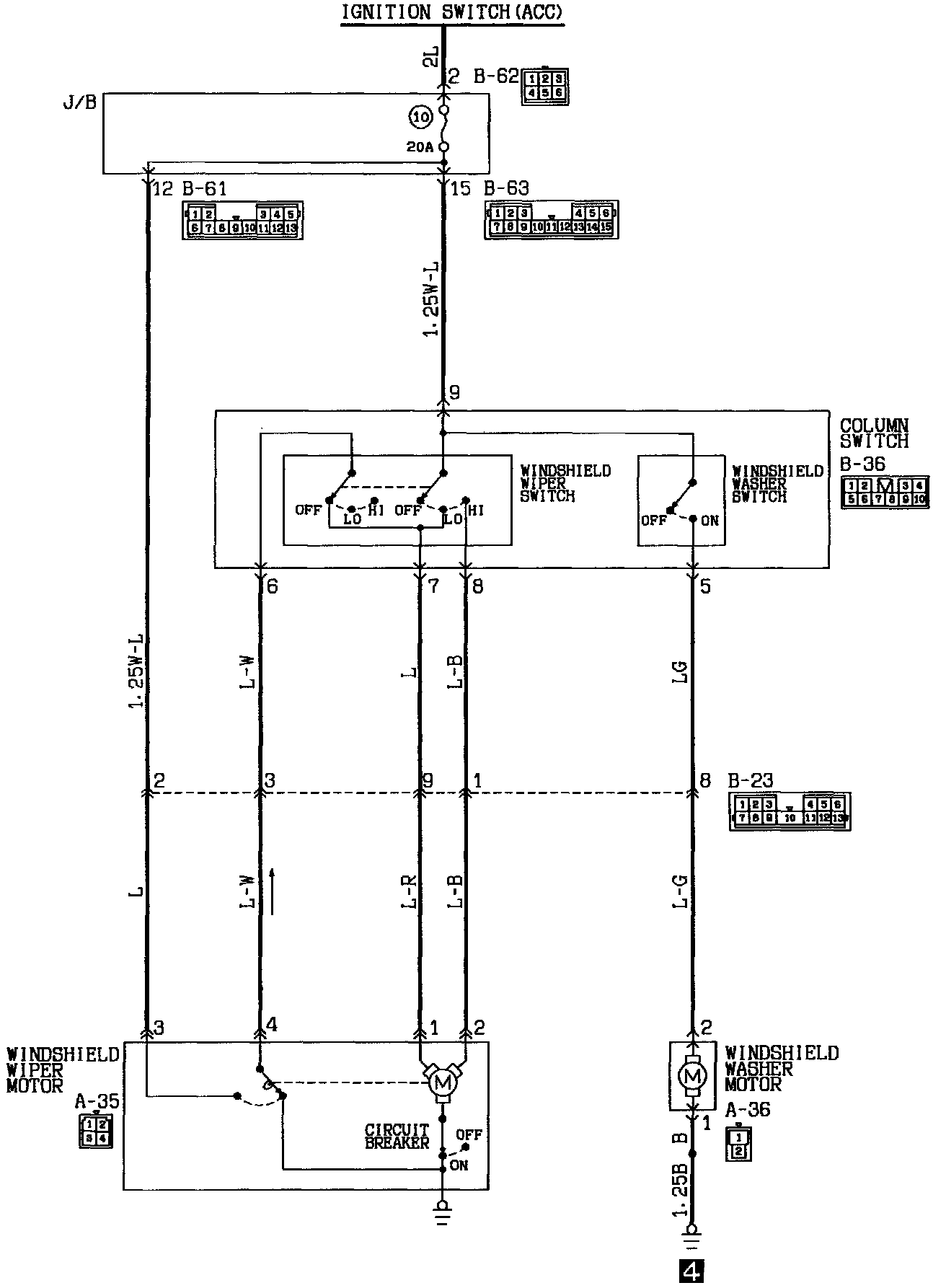

Windshield Wiper And Washer Circuit Diagram <Vehicles Without Intermittent Wiper>:
