Symptom Related Diagnostic Procedures

Fig 2 Anti-Lock Brake Toubleshooting (Part 1 Of 3). AWD Models:

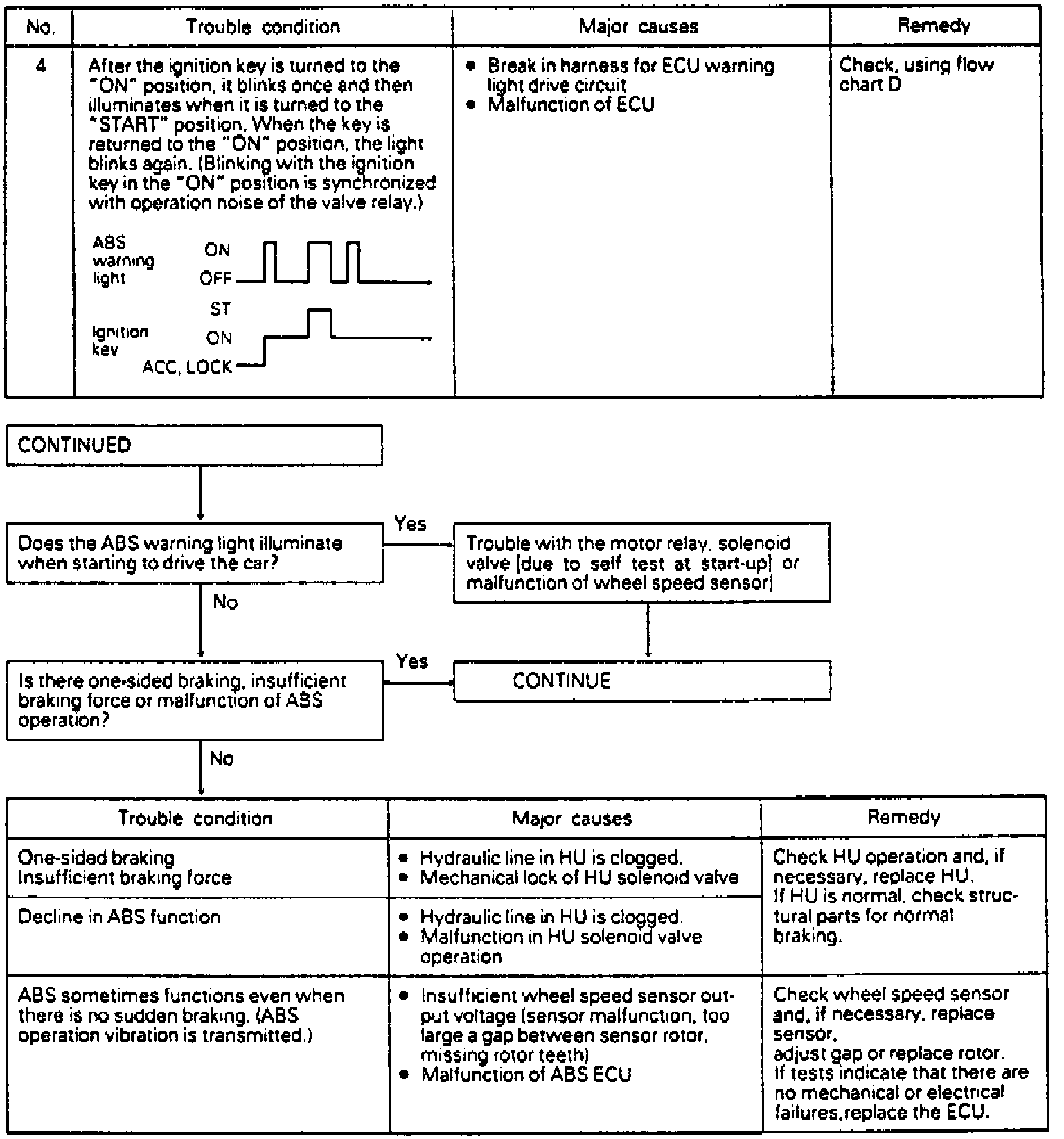

Fig 2 Anti-Lock Brake System Troubleshooting (Part 2 Of 3):

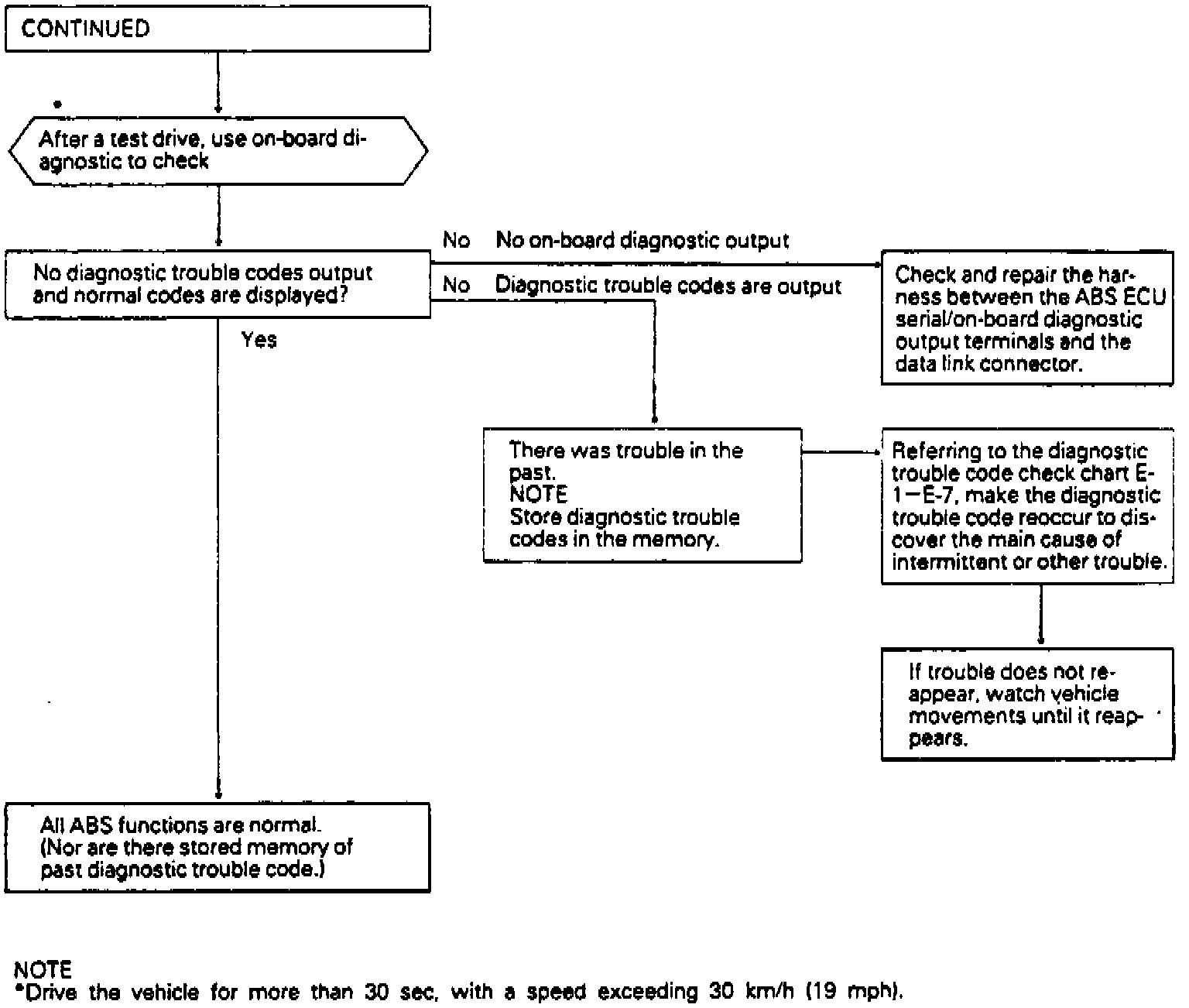

Fig 2 Anti-Lock Brake System Troubleshooting (Part 3 Of 3):
