Colt Vista AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Starter System
Starter System

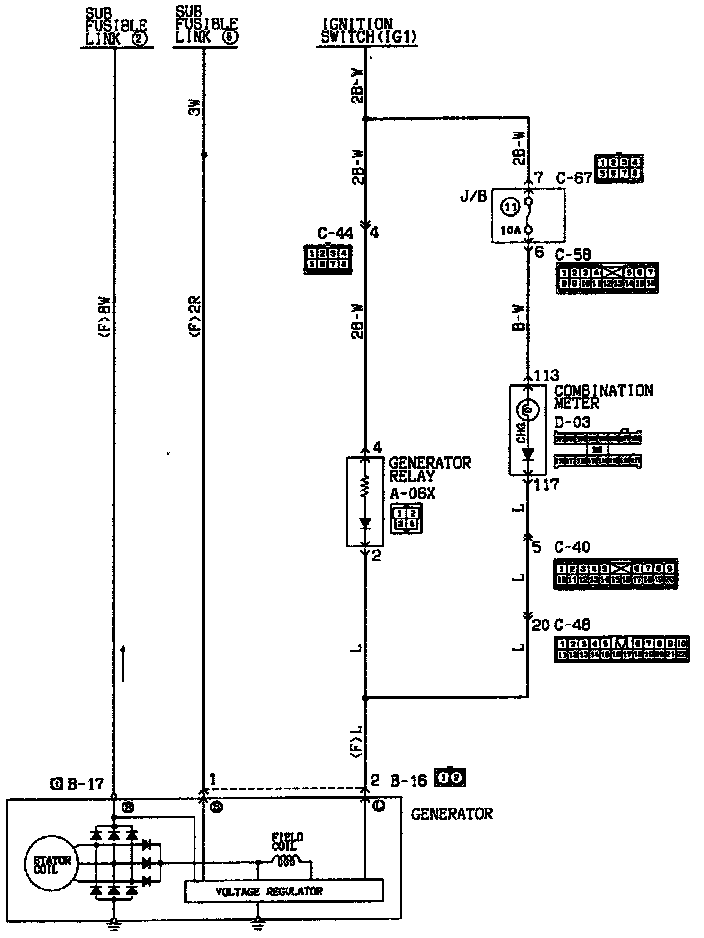

Troubleshooting Circuit Diagram:
