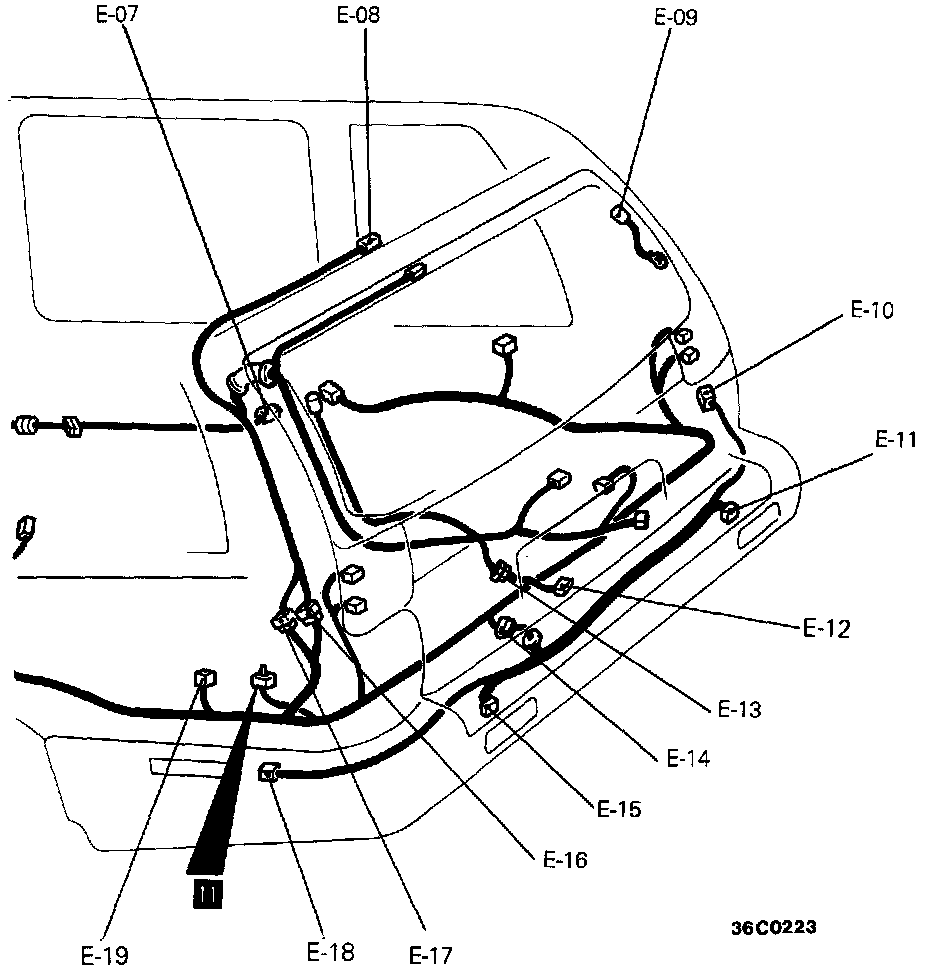

Connector E-01 Thru E-35

Interior (Part 1 Of 4):

Interior (Part 2 Of 4):

E-01 Front door wiring harness (right side) and main wiring harness combination
E-02 Remote control mirror
E-03 Front door switch (right side)
E-04 thru E-06 -
E-07 Rear door lock actuator (right side)
E-08 Cargo light
E-09 Defogger (-)
E-10 Rear side marker light (right side)
E-11 Back up light (right side)
E-12 Liftgate lock actuator
E-13 Liftgate wiring harness and Liftgate sub wiring harness combination
E-14 Rearwiring harness and rearbumperwiring harness combination
E-15 Back up light (left side)
E-16 Rear wiring harness and liftgate wiring harness
E-17 combination
E-18 Rear side marker light (left side)
E-19 Rear speaker (left side)
E-20 -
E-21 thru E-27 -
E-28 Front door switch (left side)
E-29 -
E-30 Front power window motor (left side)
E-31 Front power window main switch
E-32 Door speaker (left side)
E-33 Front door wiring harness (left side) and main wiring harness combination
E-34 Remote control mirror (left side)
E-35 Release switch (left side)


Remarks:
1. The mark "star" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example [11]). refer to Grounding Location.
3. "-" means that the connector with code-number is not used.
