Connector E-36 Thru E-83

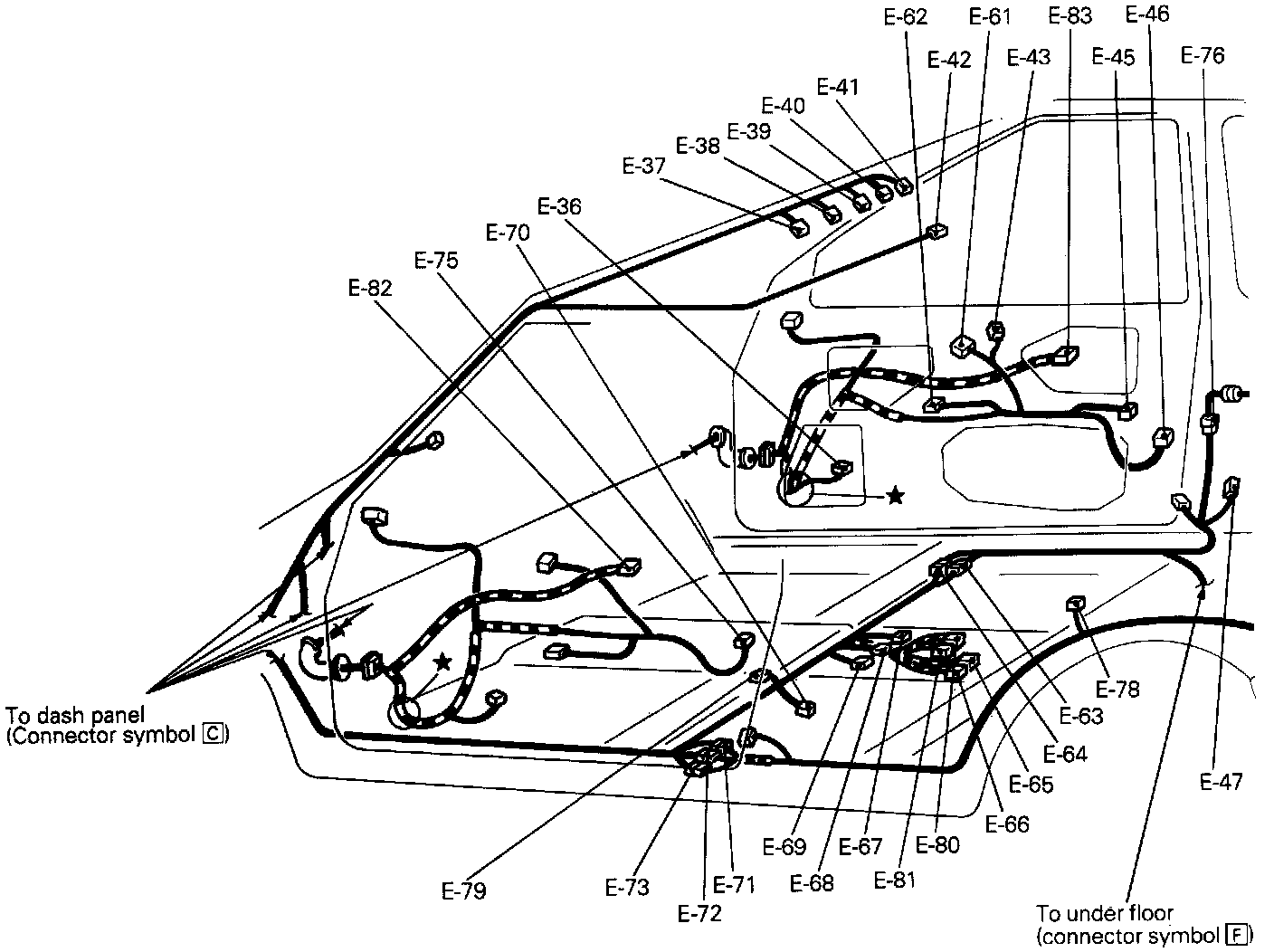

Interior (Part 3 Of 4):

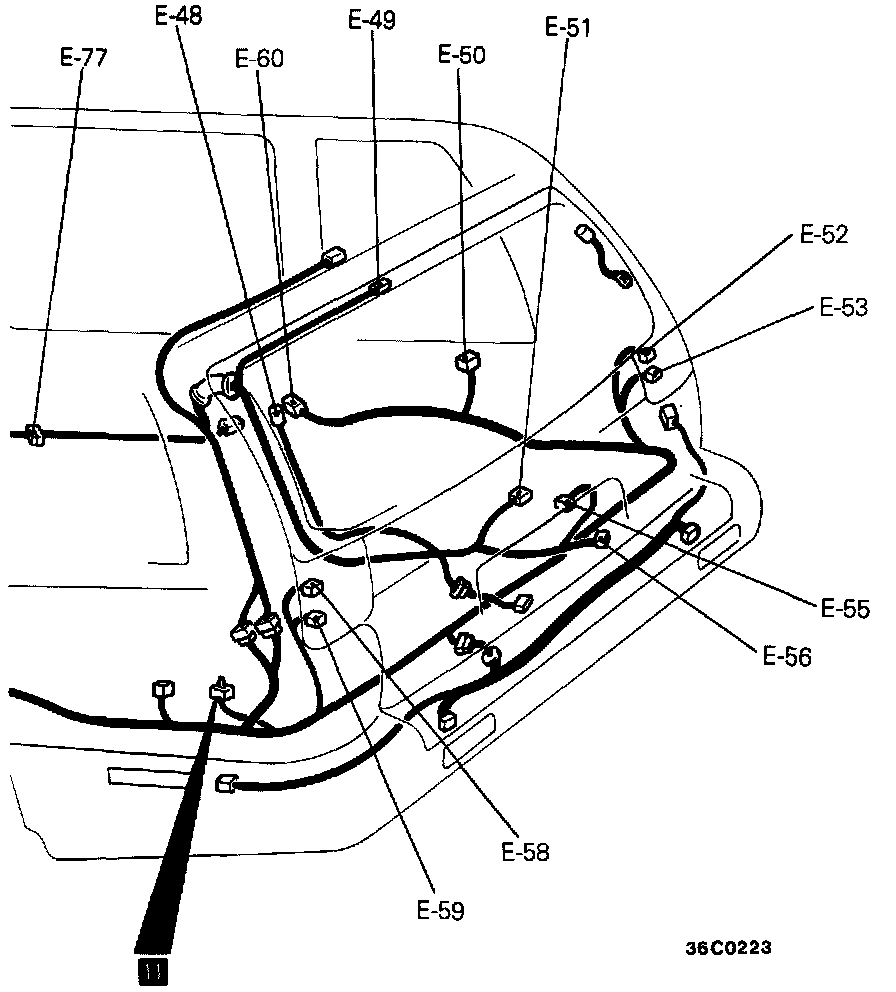

Interior (Part 4 Of 4):

E-36 Door speaker (right side)
E-37 Sunroof control relay
E-38 Sunroof relay
E-39 Dome light (vehicles with sunroof)
E-40 Limit switch
E-41 Sunroof motor
E-42 Dome light (vehicles without sunroof)
E-43 Door lock switch (door side)
E-44 -
E-45 Door latch switch (right side)
E-46 Front door lock actuator (right side)
E-47 Automatic seat belt (right side)
E-48 Defogger(+)
E-49 High mounted stop light
E-50 Rear speaker (right side)
E-51 Rear wiper motor
E-52 Rear combination light (right side)
E-53 Rear combination light (right side)
E-54 -
E-55 License plate light
E-56 Liftgate switch
E-57 -
E-58 Rear combination light (left side)
E-59 Rear combination light (left side)
E-60 Rear door switch (right side)
E-61 Front power window sub switch
E-62 Front power window motor (right side)
E-63 Main wiring harness and assist wiring harness combination
E-64 Main wiring harness and assist wiring harness combination
E-65 Automatic seatbelt control unit
E-66 Outer switch
E-67 Remote control mirror switch
E-68 ABS G sensor
E-69 Parking brake switch
E-70 Seatbelt buckle switch
E-71 thru E-73 Main wiring harness and rear wiring harness combination
E-74 -
E-75 Front door lock actuator (left side)
E-76 Contact switch (body side)
E-77 Contact switch (door side)
E-78 Keyless entry control unit
E-79 Heated oxygen sensor (rear)
E-80 SRS Diagnosis unit
E-81 SRS Diagnosis unit
E-82 Key switch (left side)
E-83 Key switch (right side)

Remarks:
1. The mark "star" shows the standard mounting position of wiring harness.
2. For details concerning the ground point (example: [1]), refer to Grounding Location.
3. "-" means that the connector with code-number is not used.
