Plymouth
>>
1994
>>
Colt Vista FWD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Door Locks
>>
Vehicles With Keyless Entry System
>>
Part 2 of 4
Part 2 of 4

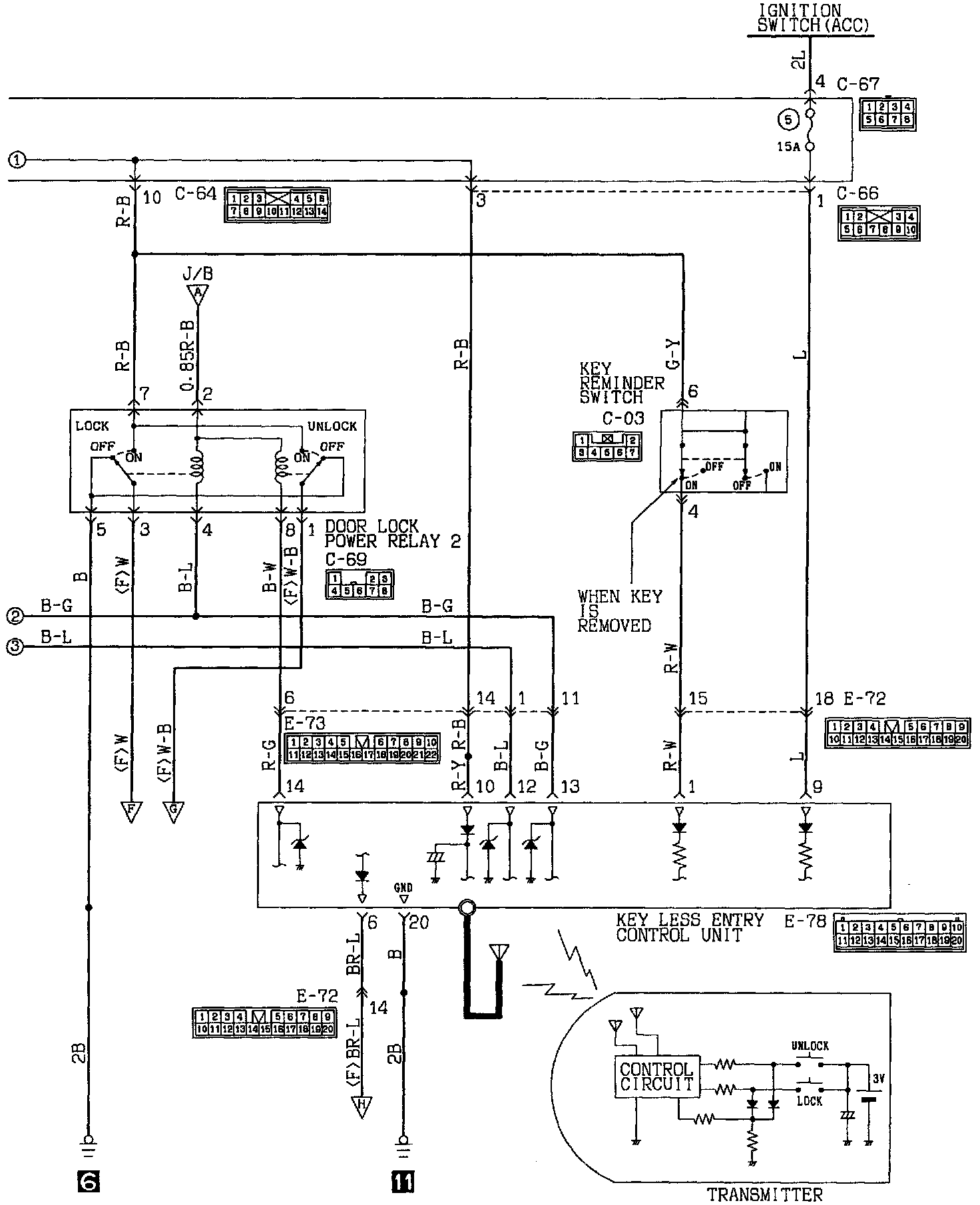

With Keyless Entry System (Part 2 Of 4):
