Procedure 3

SRS warning light does not go out

[Explanation]

A short-circuited harness between the SRS warning light and SDU is suspected.

Probable cause of trouble

^ Defective harness, connector

^ Defective combination meter

^ Defective SDU

Caution

1. After the ignition switch has been placed at the LOCK position and the negative (-) terminal of the battery has been disconnected, wait for more than 60 seconds before starting work. Wind a tape around the disconnected (-) terminal for insulation.

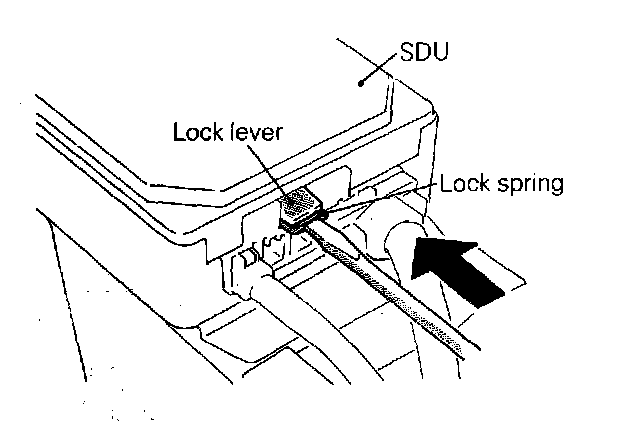

2. To unlock the SDU connector, put a flat tip screwdriver on the lock spring (metallic portion) of the lock lever as shown, and press it horizontally toward the inside of the unit. In this case, do not force the lock lever up. Do not put the flat tip screwdriver in the clearance between the lock lever and lock spring (metallic portion).
