Home >> Plymouth >> 1994 >> Colt Vista FWD L4-2350cc 2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Relay Box >> Part 4 of 4

Part 4 of 4

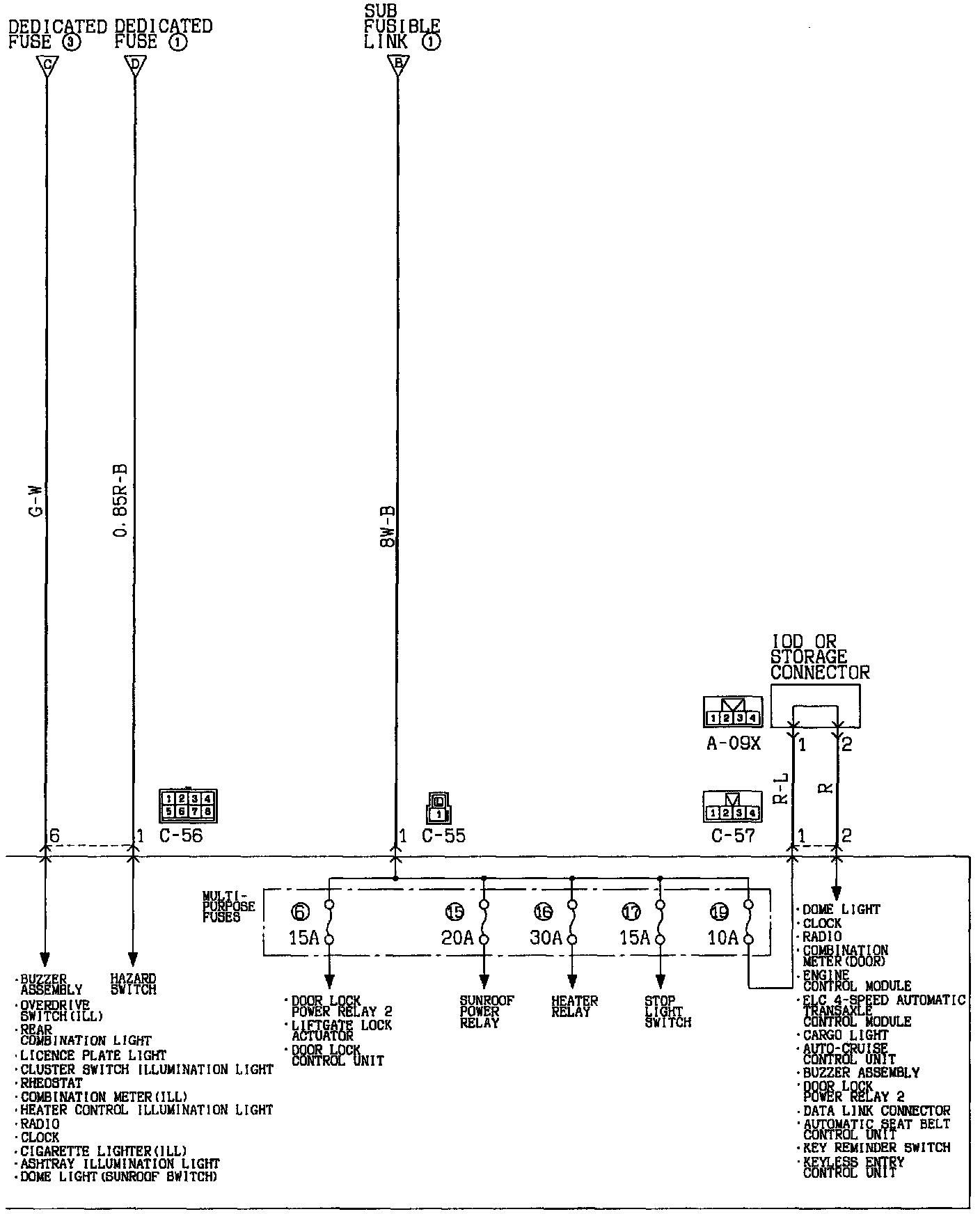

Power Distribution (Part 4 Of 4):
