Home >> Plymouth >> 1994 >> Sundance L4-153 2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 5

Part 5

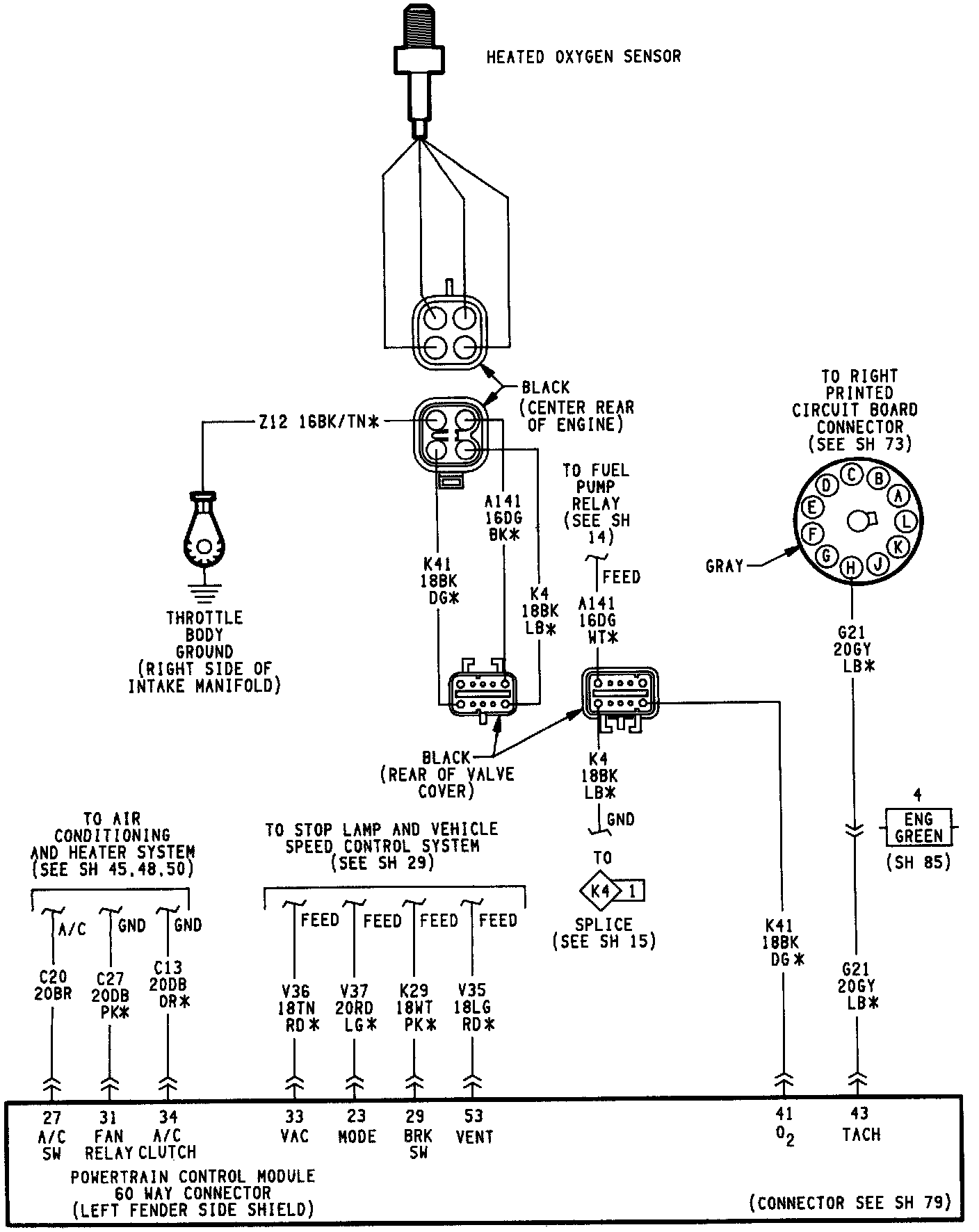

Fuel Injection System (Part 5 of 5):
