Home
>>
Plymouth
>>
1994
>>
Sundance V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

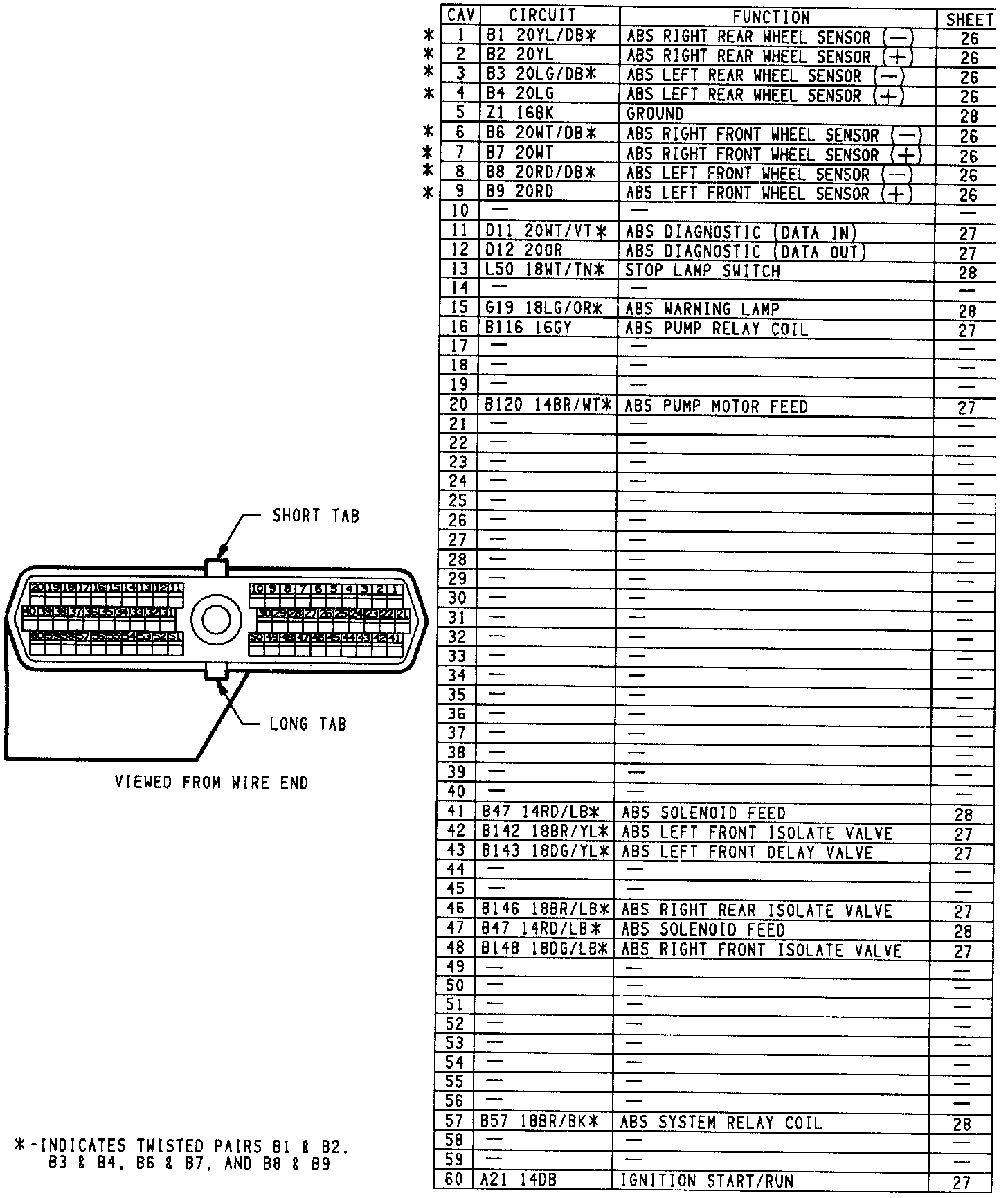

Anti-lock Brake System Controller Connector:
