Instrument Cluster / Carrier
>>
Body to Instrument Panel Wiring
Body to Instrument Panel Wiring

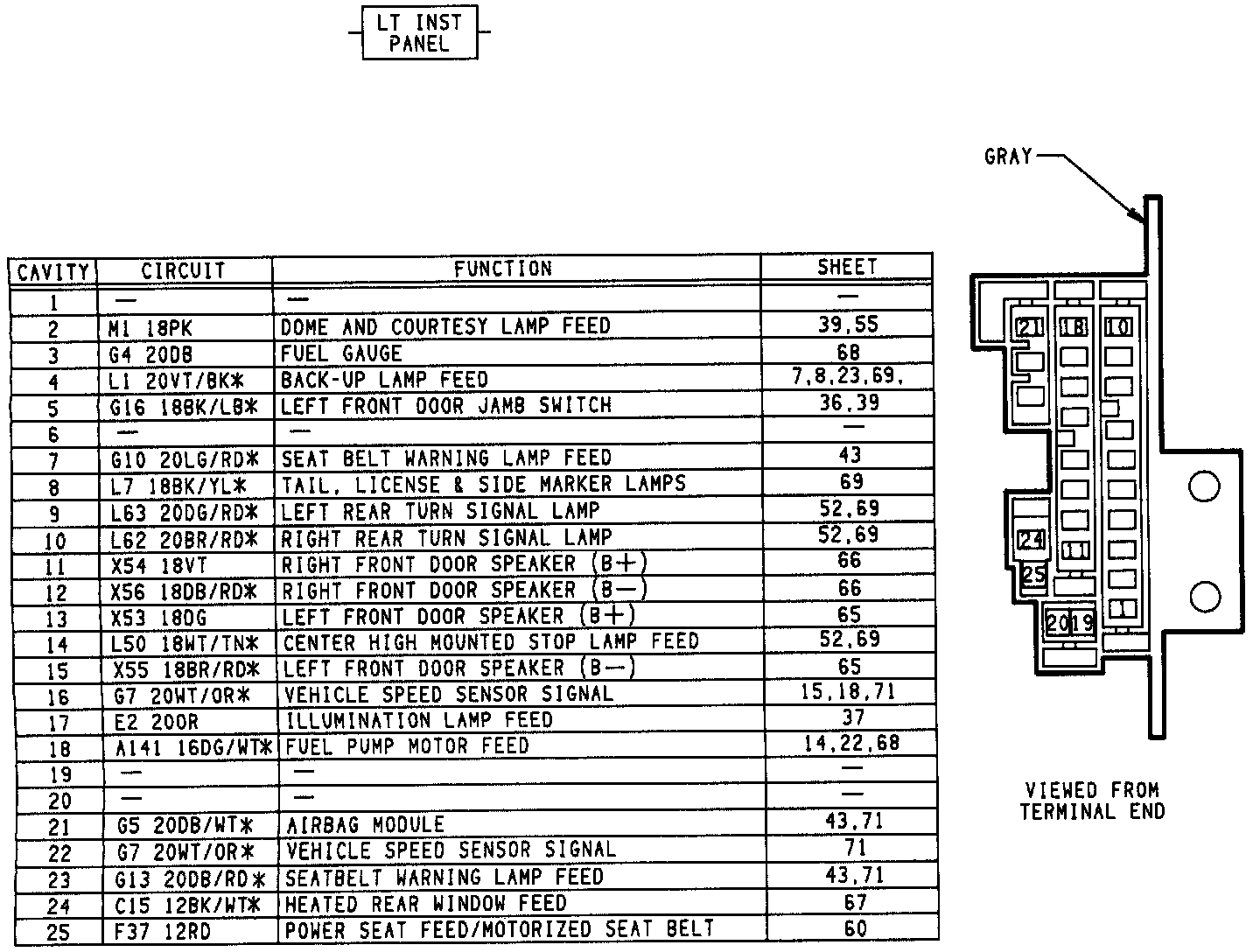

Body To Instrument Panel Wiring:
