Home
>>
Plymouth
>>
1994
>>
Sundance V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
Instrument Panel to Engine
Instrument Panel to Engine

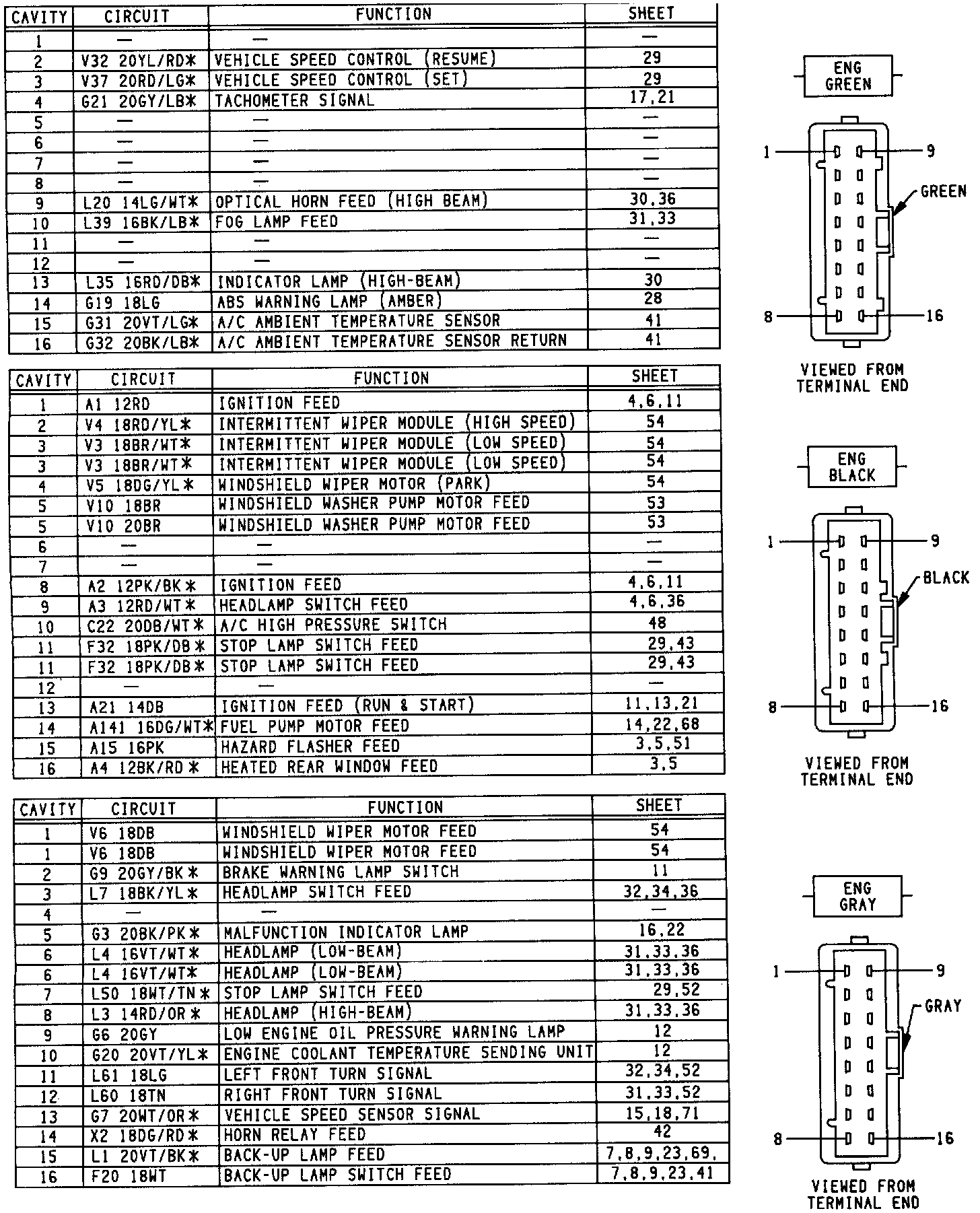

Instrument Panel To Engine Wiring:
