Instrument Cluster / Carrier
>>
Right Instrument Panel Interface
Right Instrument Panel Interface

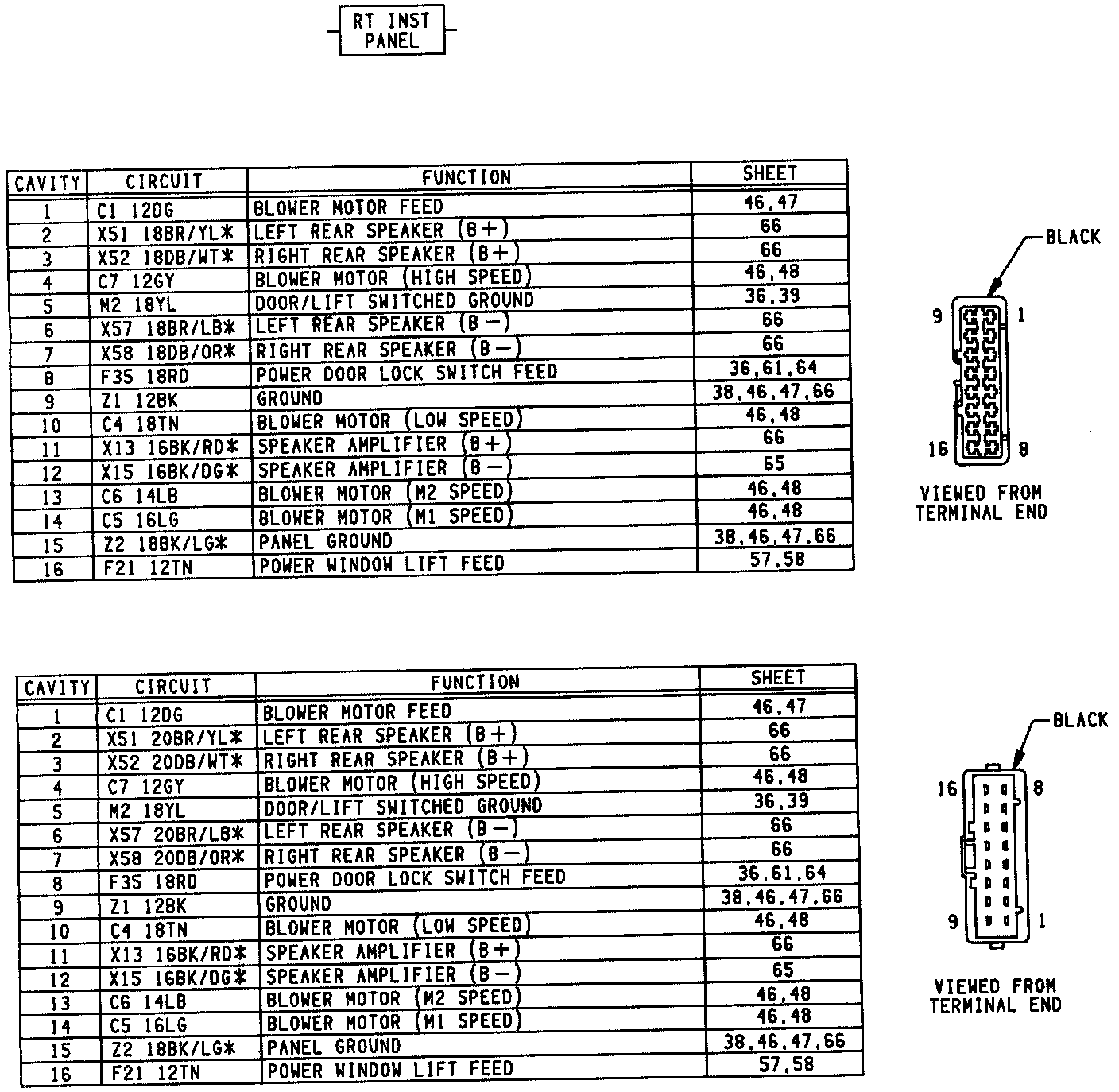

Right Instrument Panel Interface:
