Sundance V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Control Module
Seat Belt Control Module

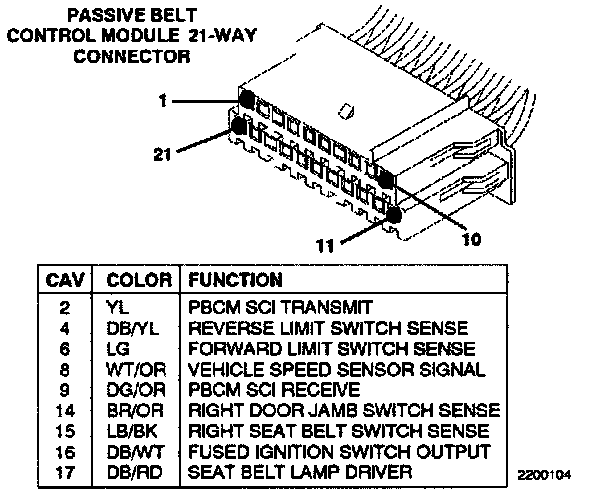

Passive Belt Control Module (PBCM) Connector:

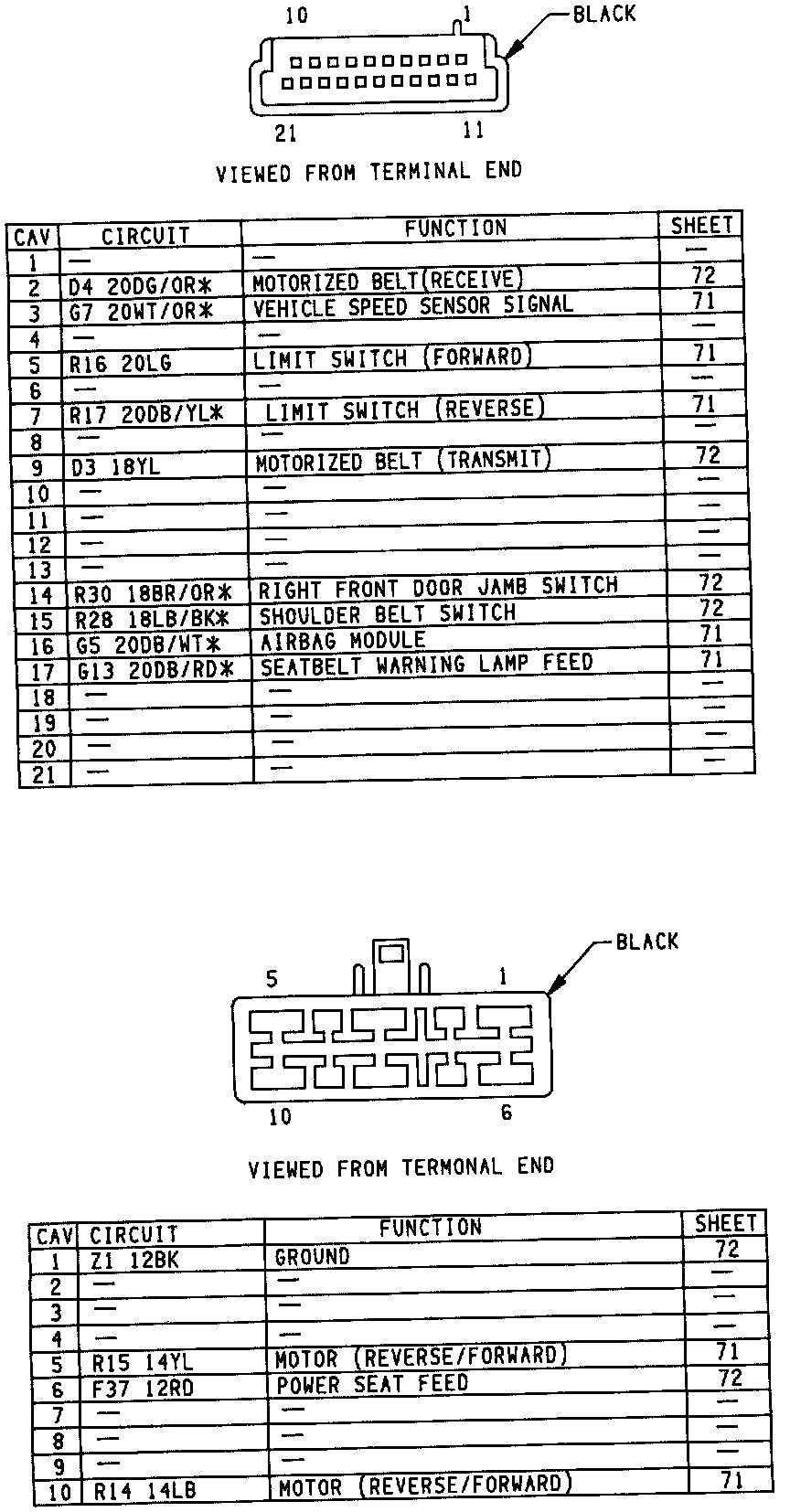

Passive Seatbelt Control Module:
