Home
>>
Plymouth
>>
1994
>>
Sundance V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Air Conditioning System
Air Conditioning System

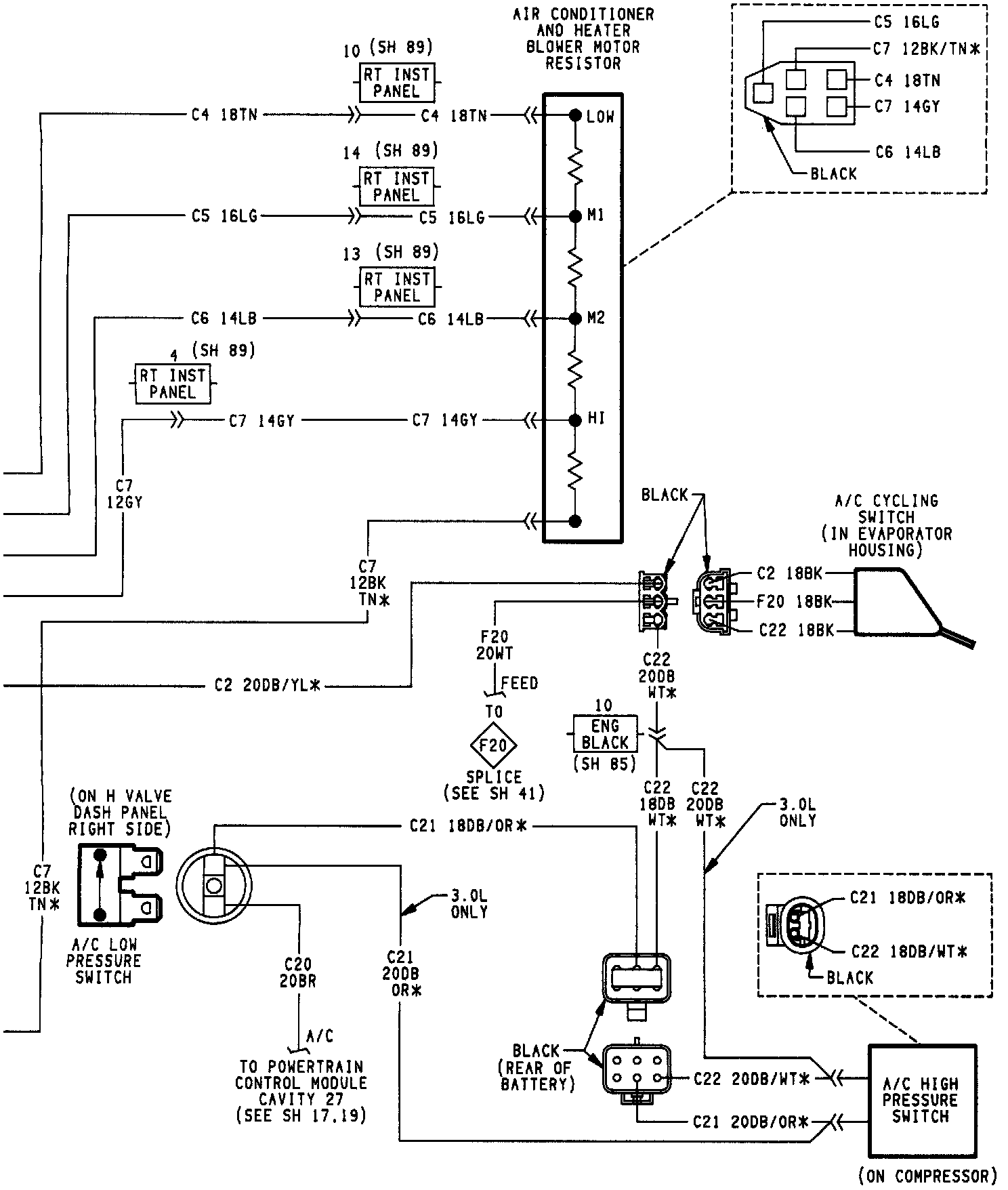

Air Conditioning And Heater System (Part 1 of 2):

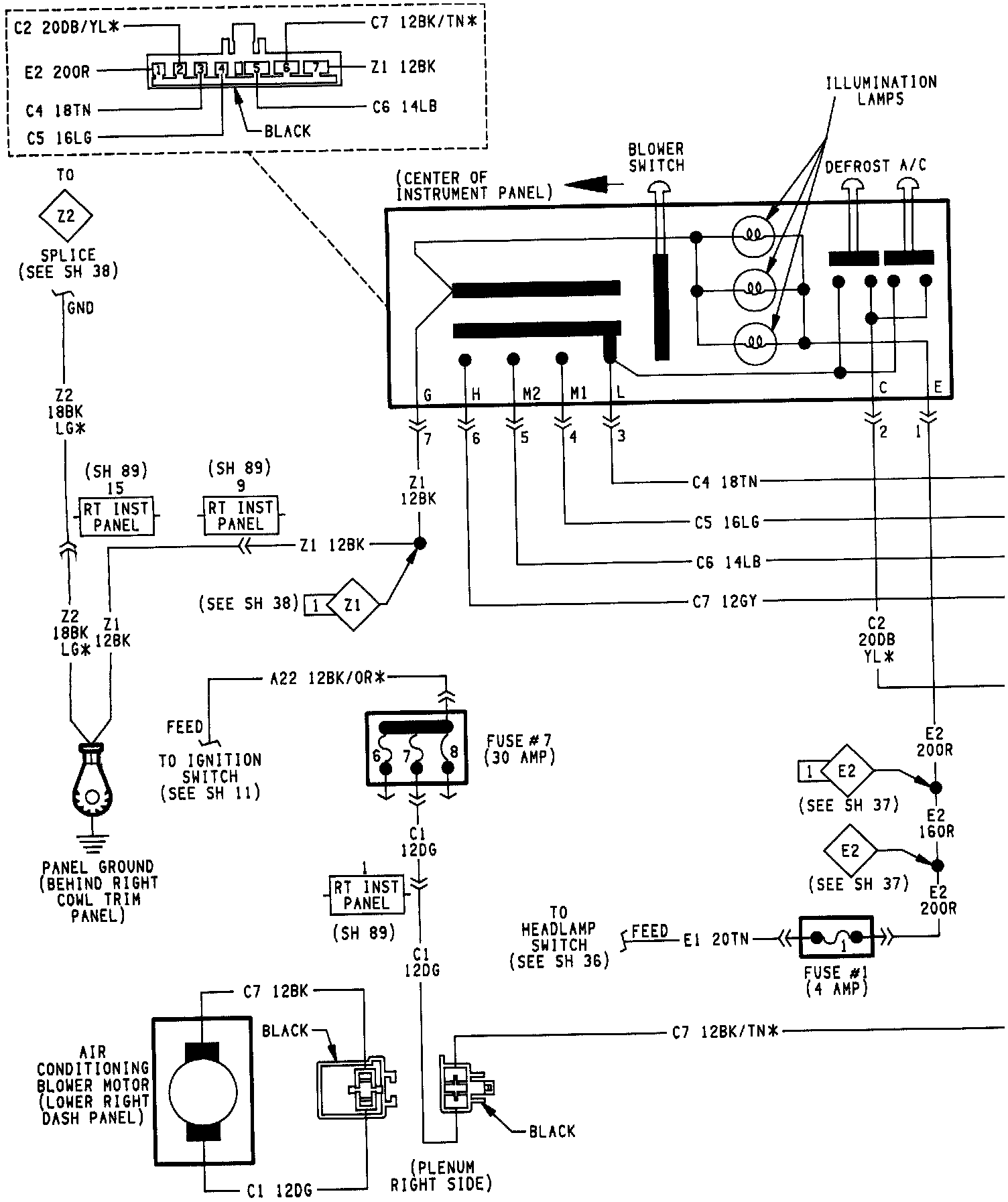

Air Conditioning And Heater System (Part 2 of 2):
