Courtesy Lamp

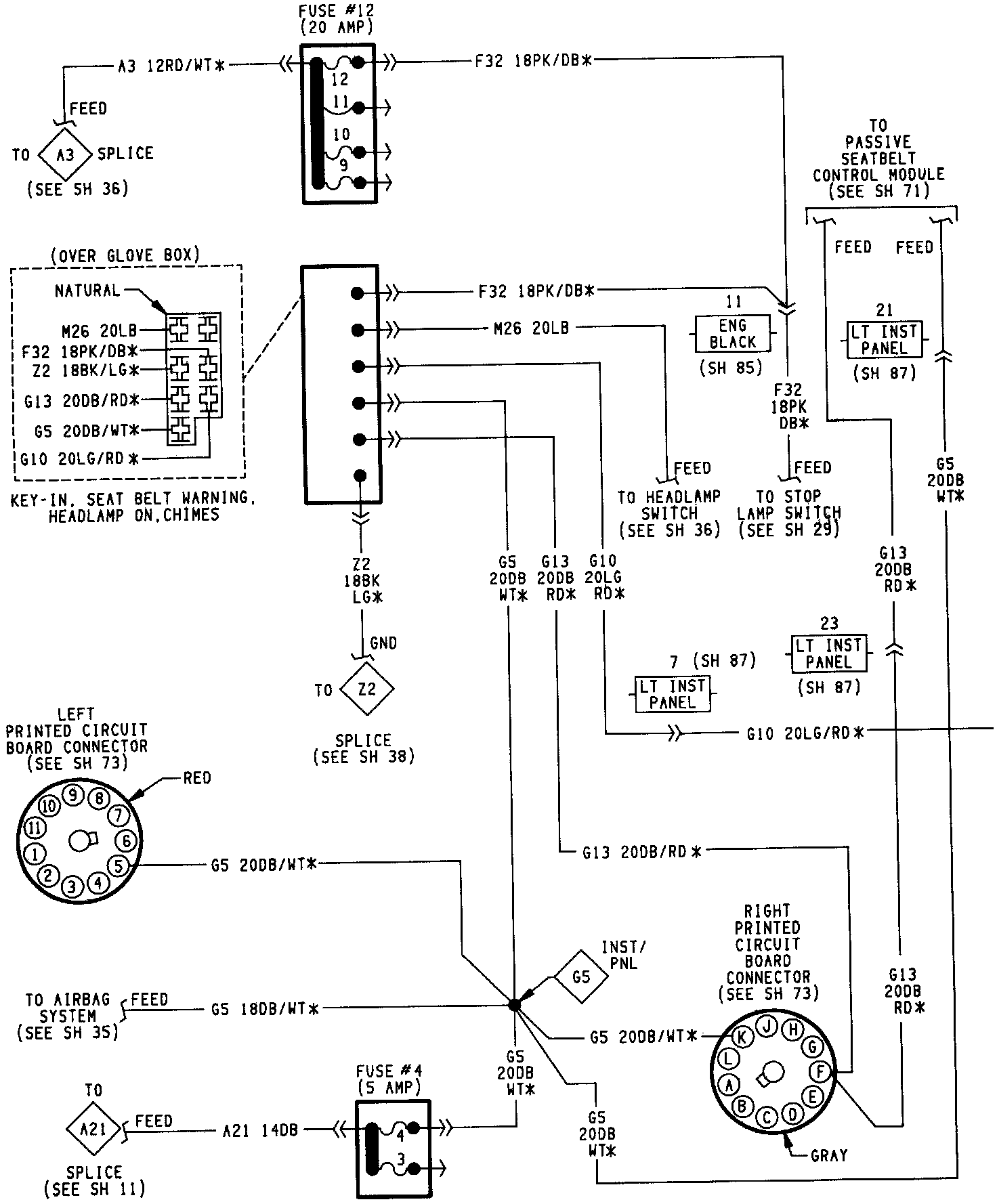

Seat Belt Warning System And Courtesy Lamps (Part 1 Of 2):

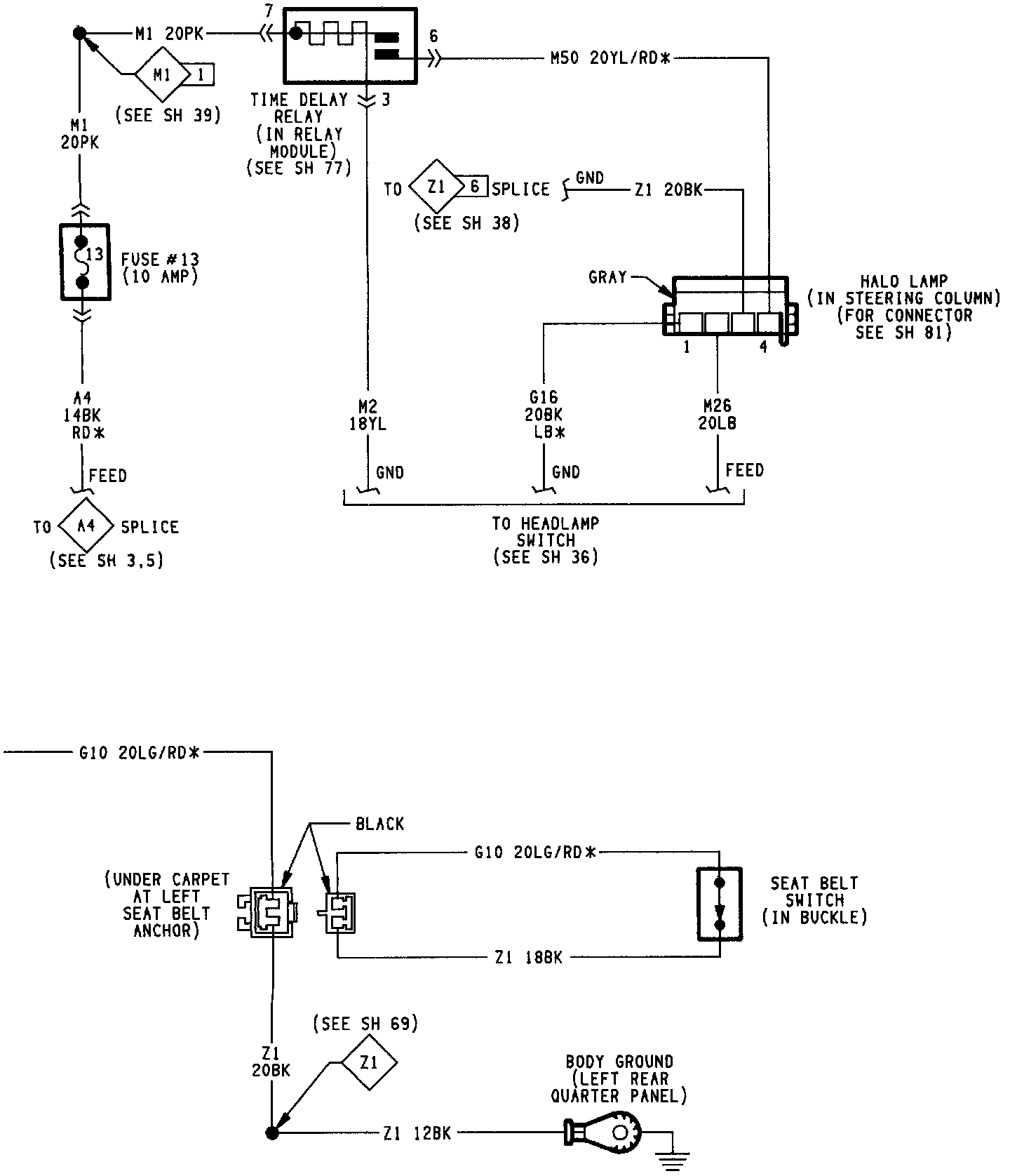

Seat Belt Warning System And Courtesy Lamps (Part 2 Of 2):

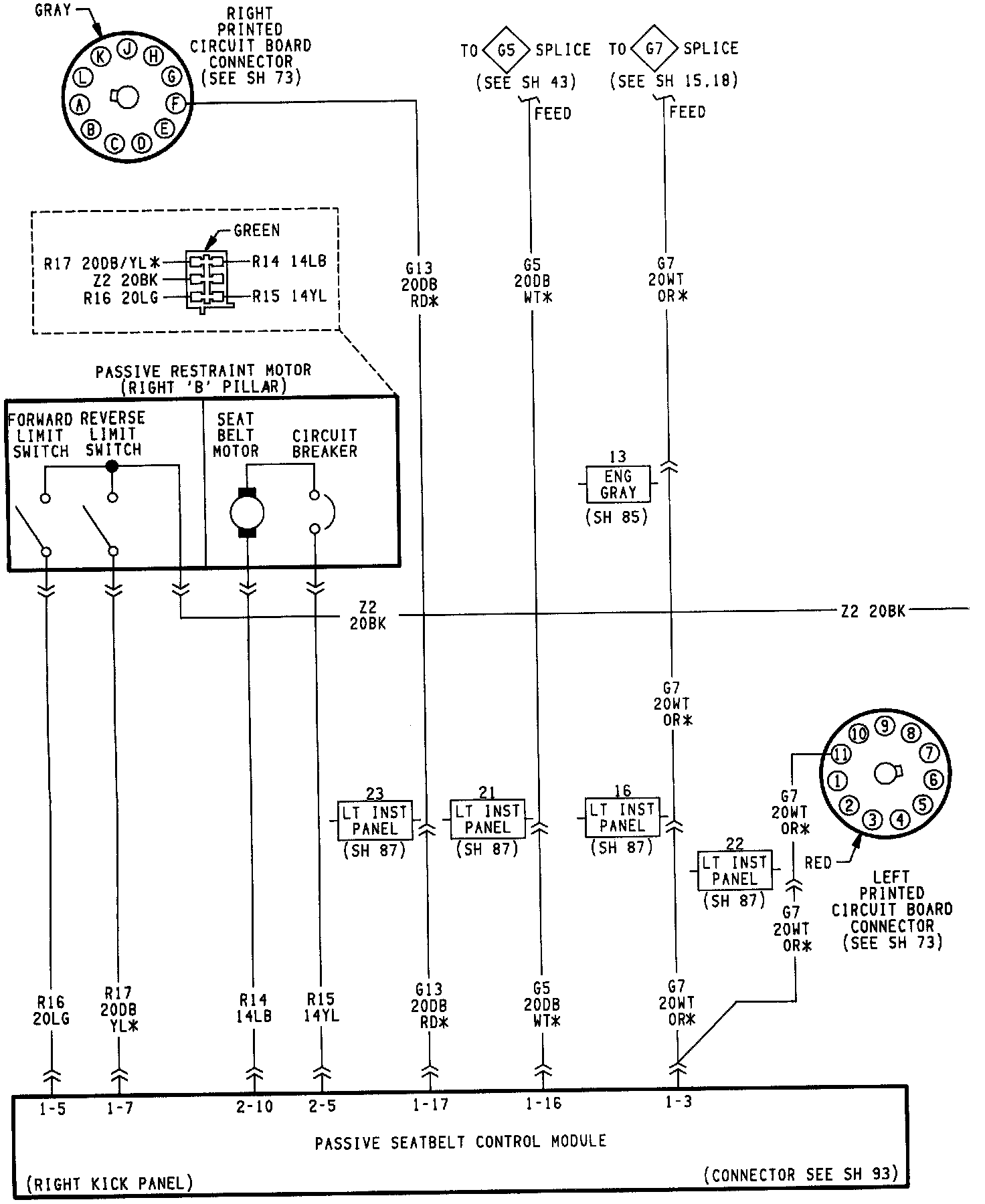

Passive Restraint System (Part 1 of 2):



Passive Restraint System (Part 2 of 2):
