Power Locks
>>
2 Door
2 Door

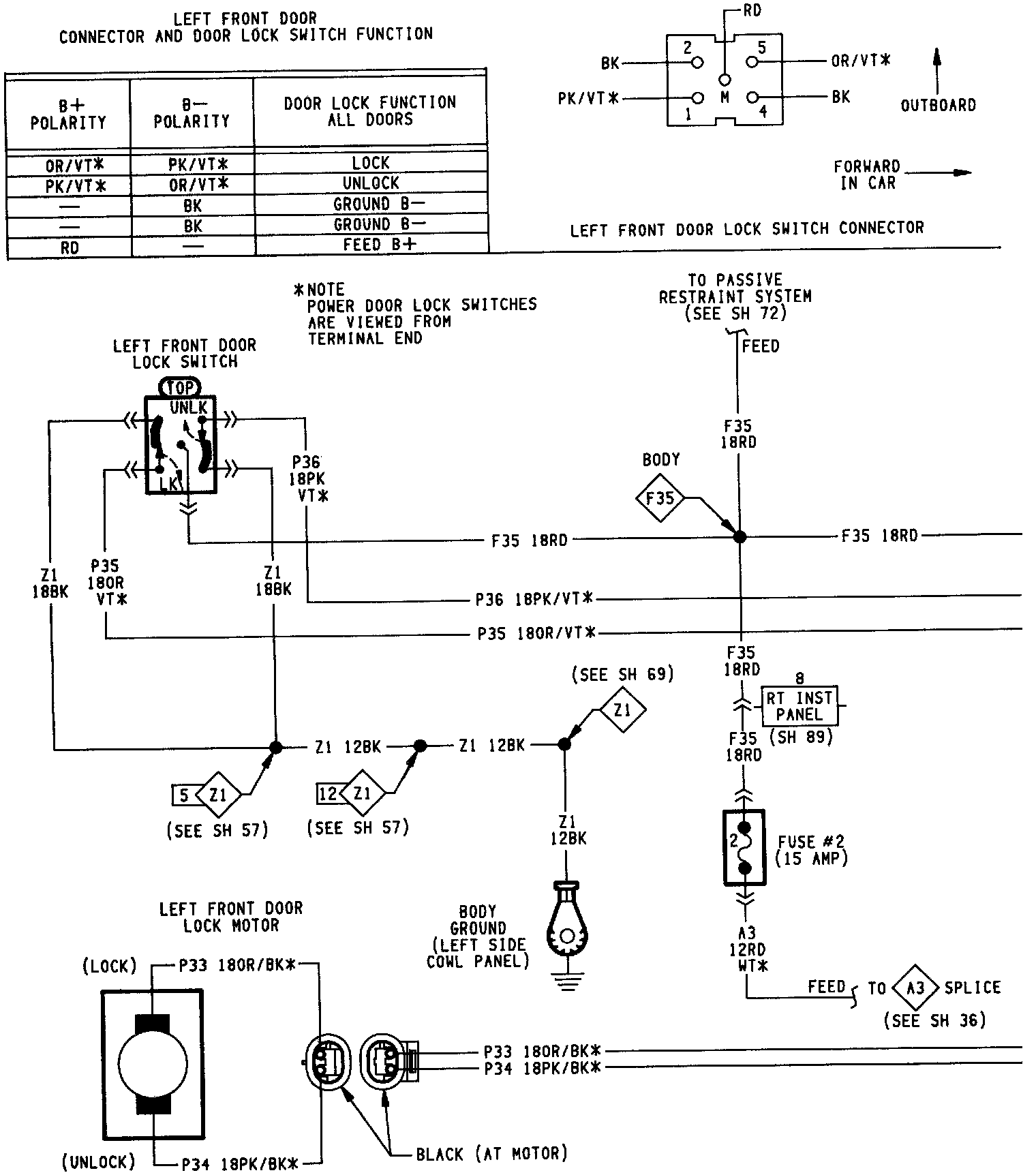

2 Door Power Lock System (Part 1 Of 2):
2 Door Power Lock System (Part 2 of 2):
