Radiator Cooling Fan Motor
>>
With Air Conditioning
With Air Conditioning

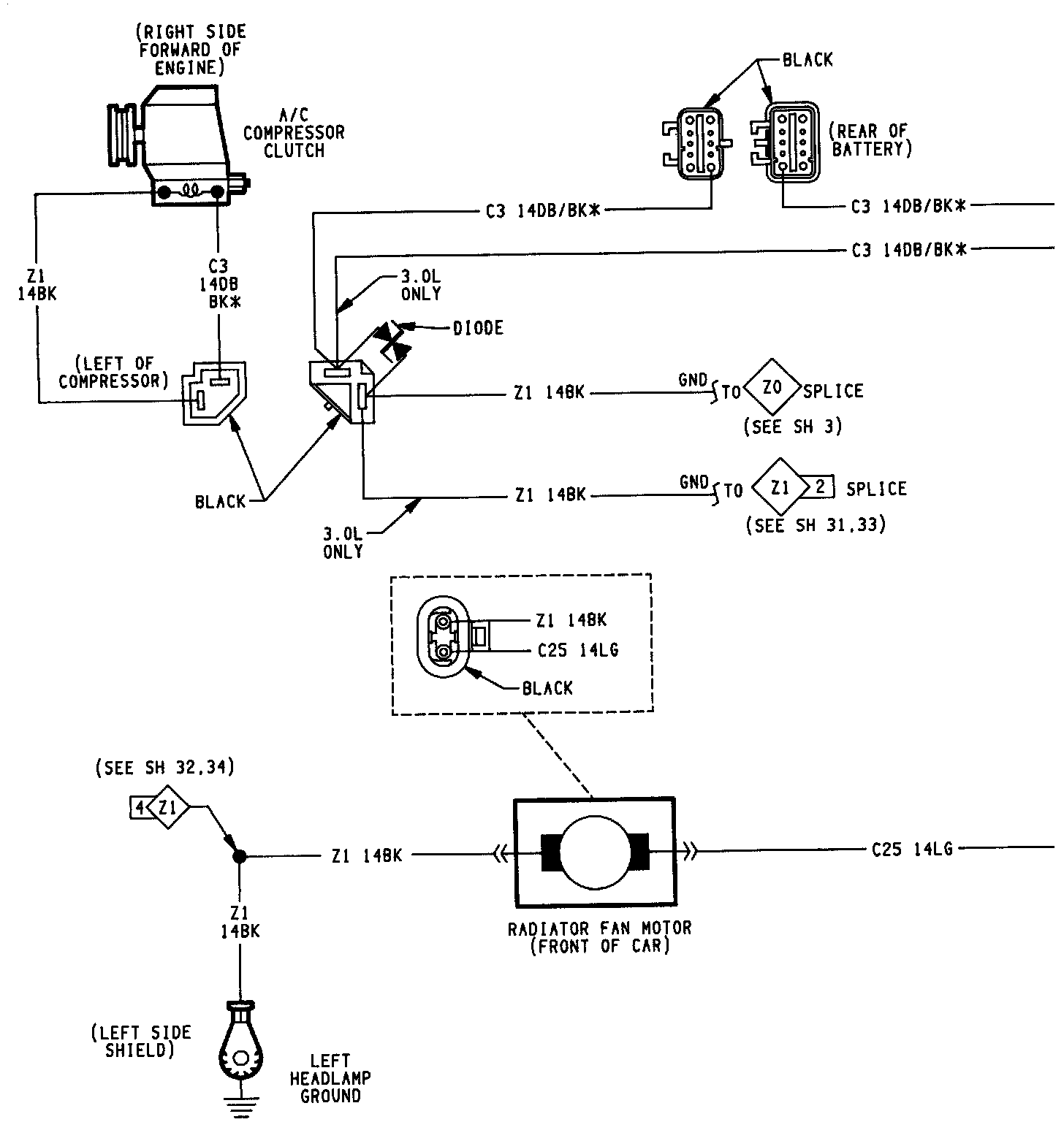

Fan Control With Air Conditioning And Heater System (Part 2 Of 2):

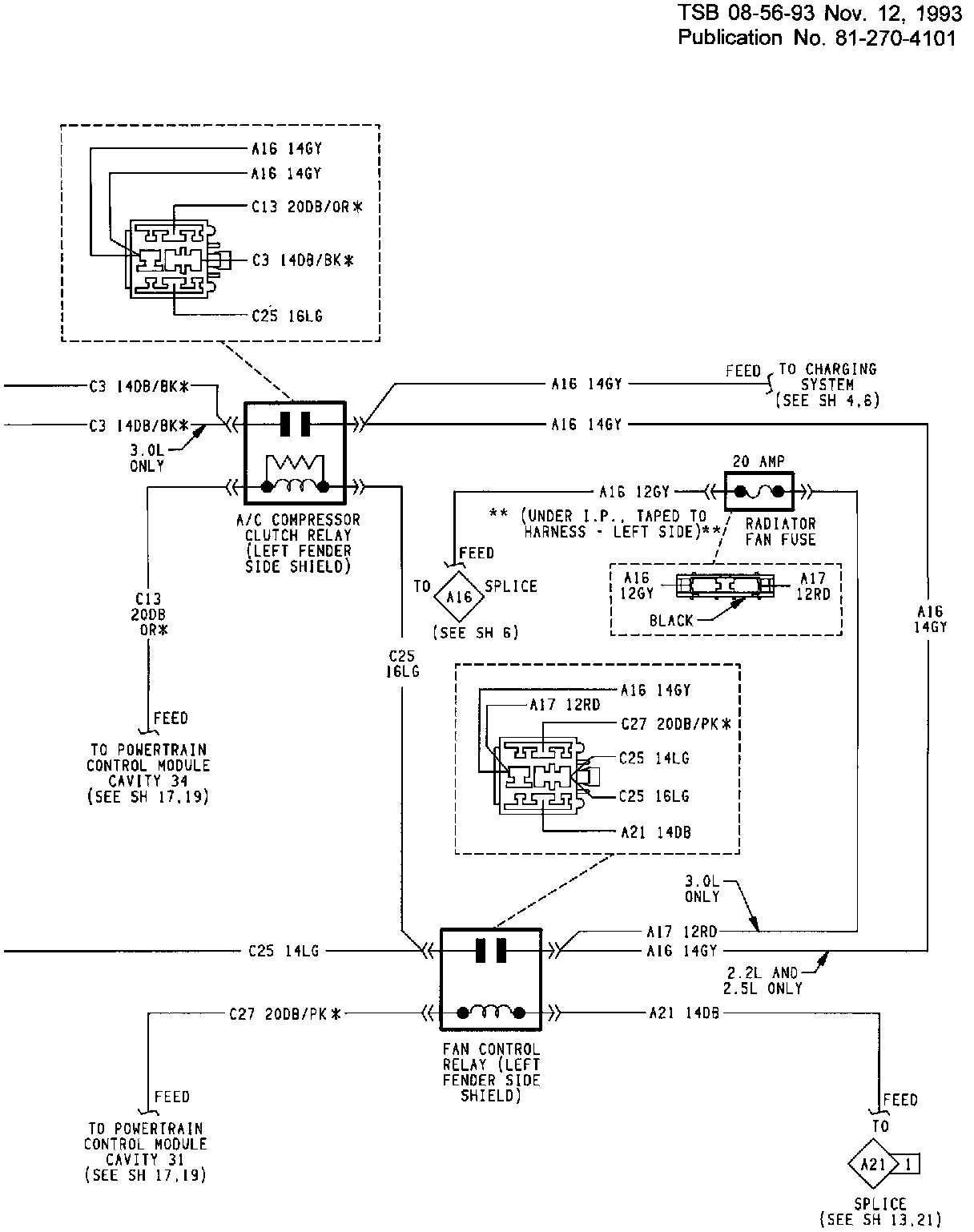

Fan Control With Air Conditioning And Heater System (Part 1 Of 2):
