Home >> Plymouth >> 1994 >> Sundance V6-181 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo

Radio/Stereo

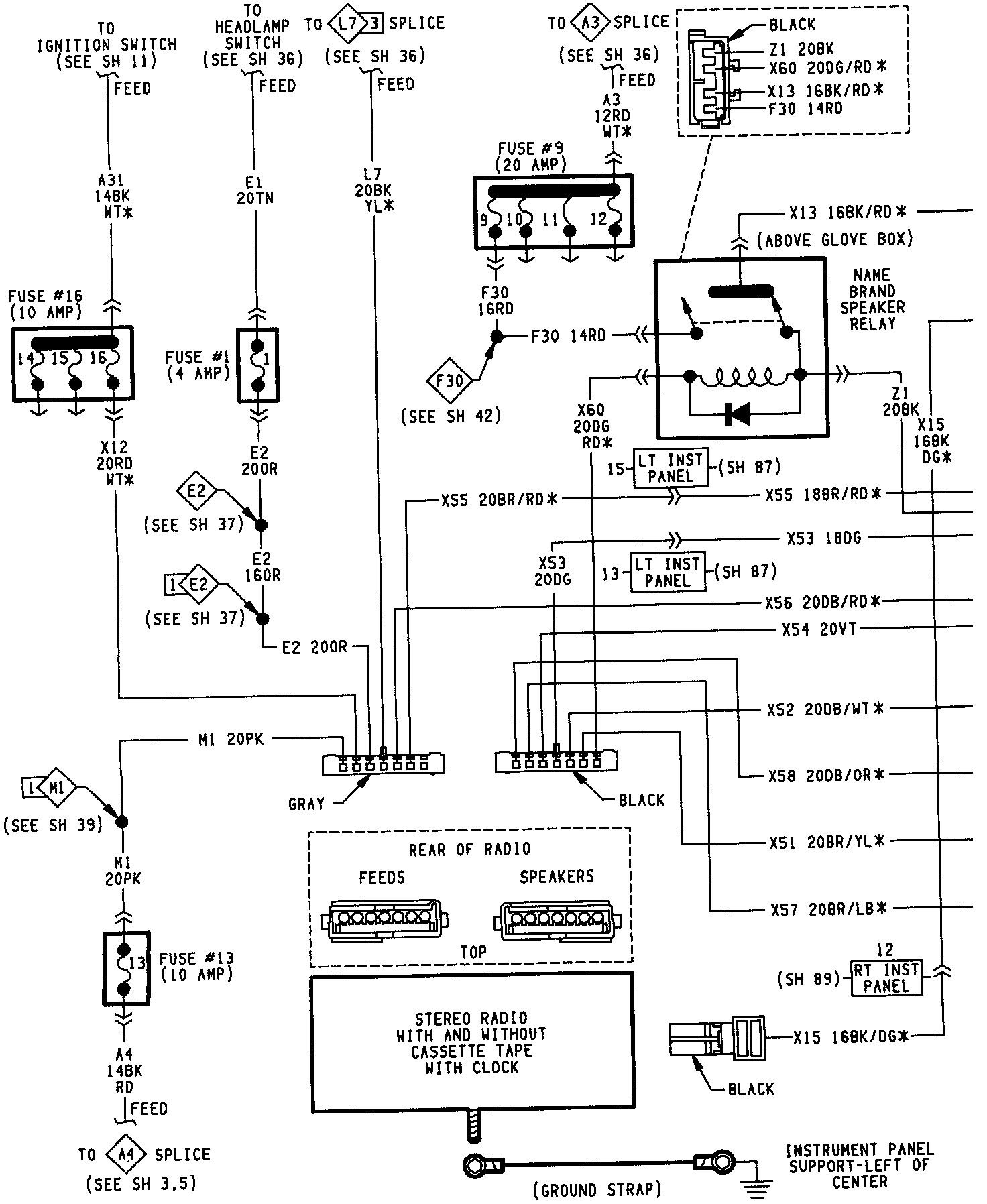

Stereo Radio:

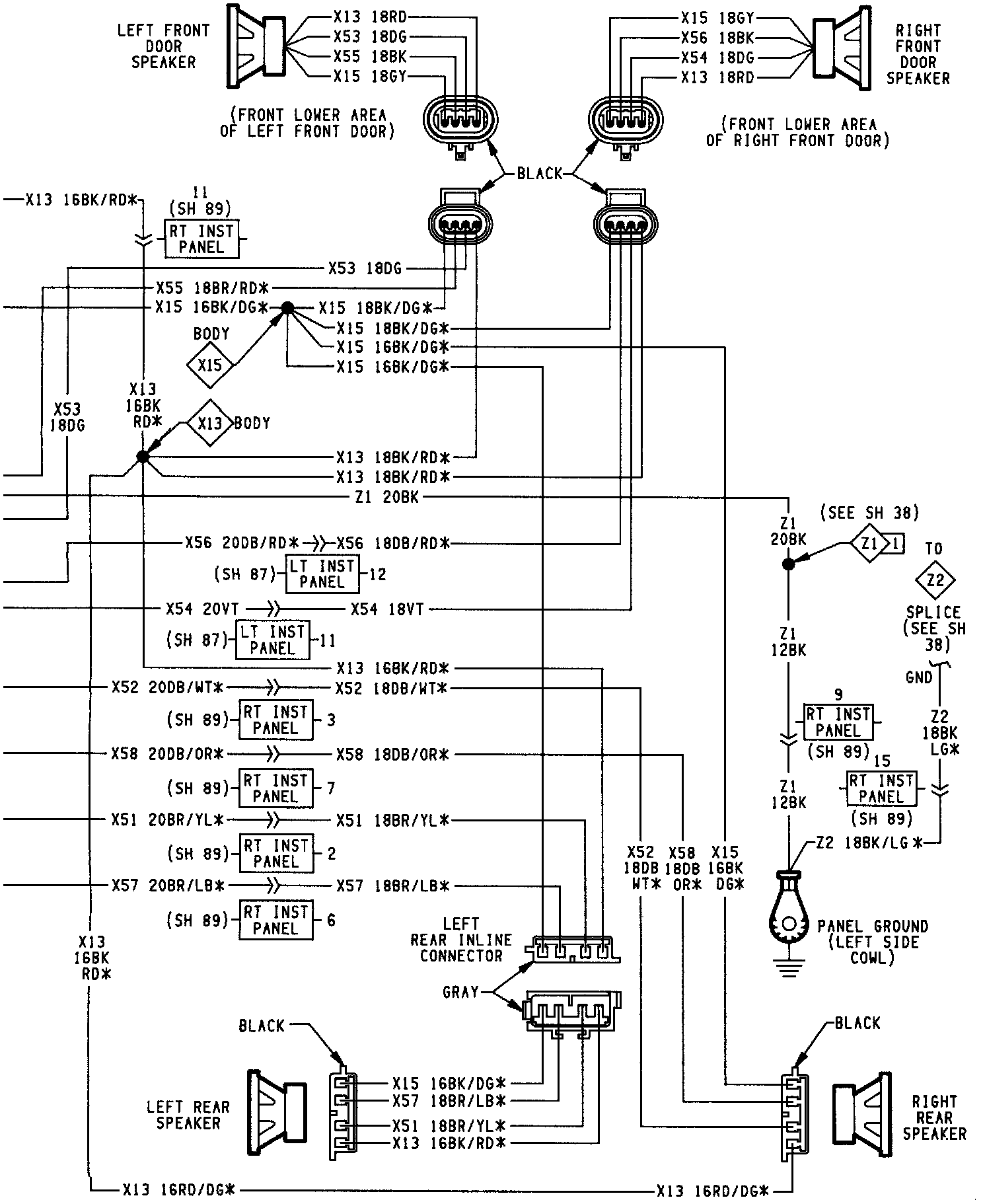

Door And Rear Speakers:
