Wiper and Washer Systems
Wiper and Washer Systems

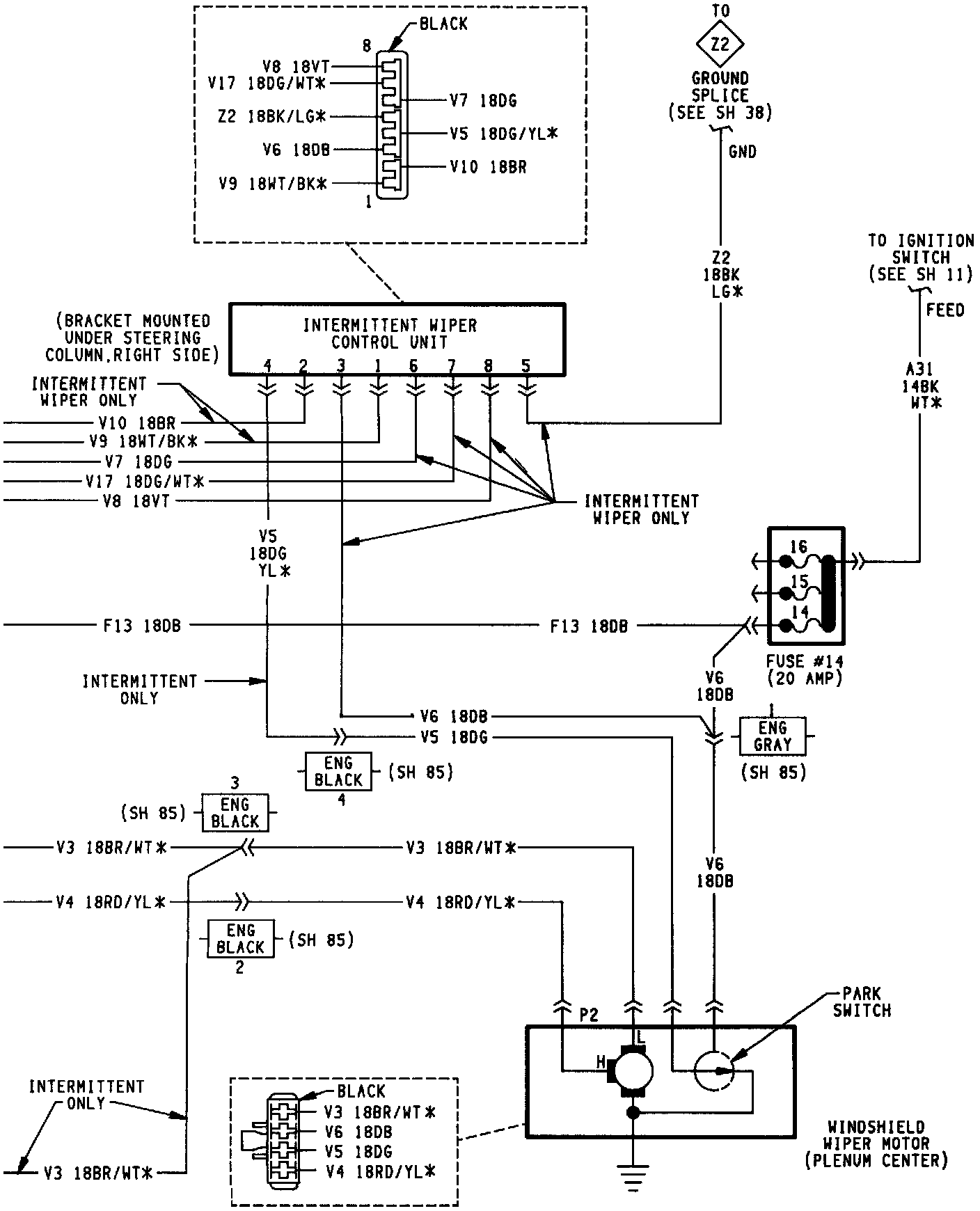

Wiper System (Part 1 of 2):

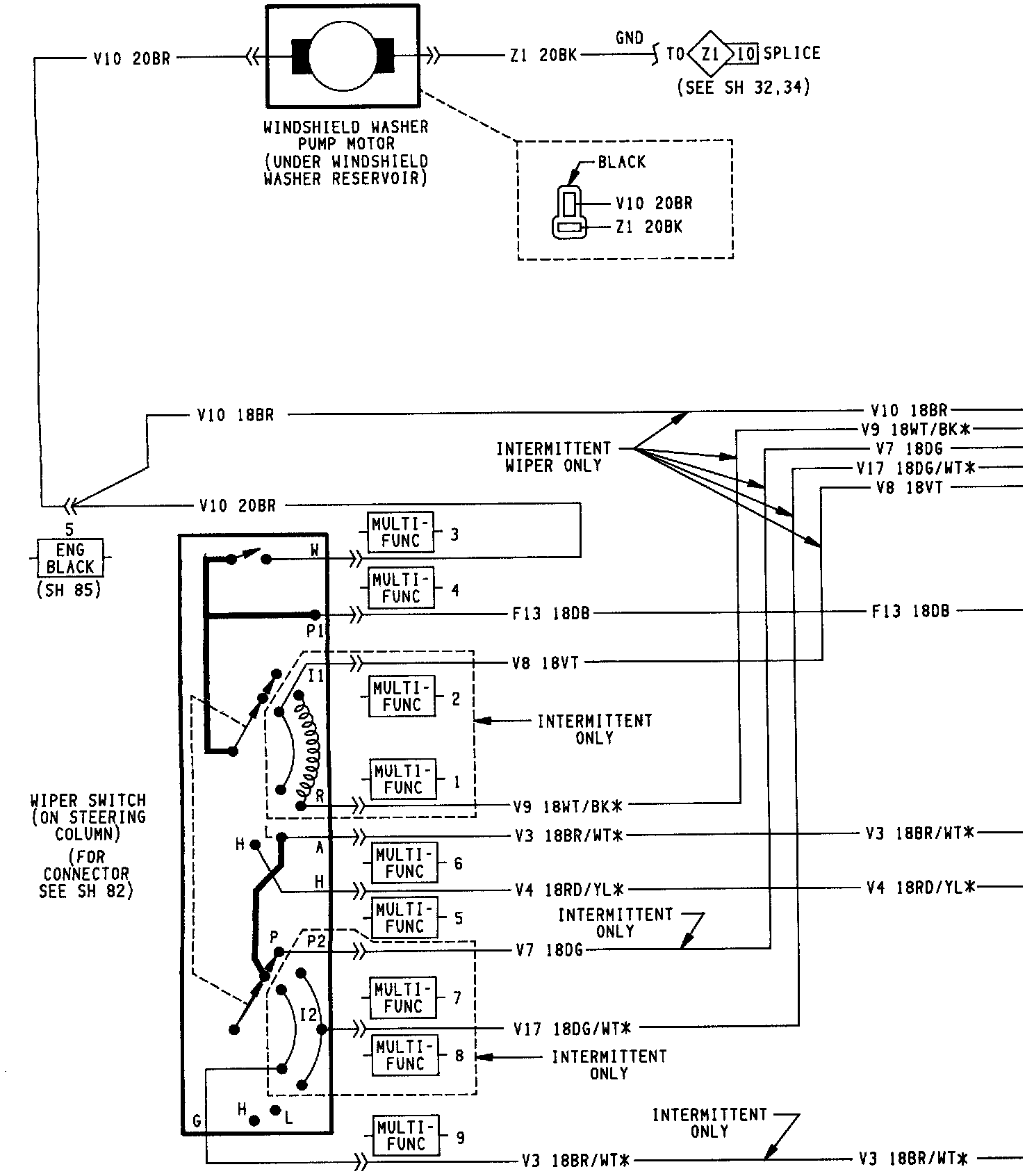

Wiper System (Part 2 of 2):
