Emission Control Systems
>>
With Automatic Transaxle
With Automatic Transaxle

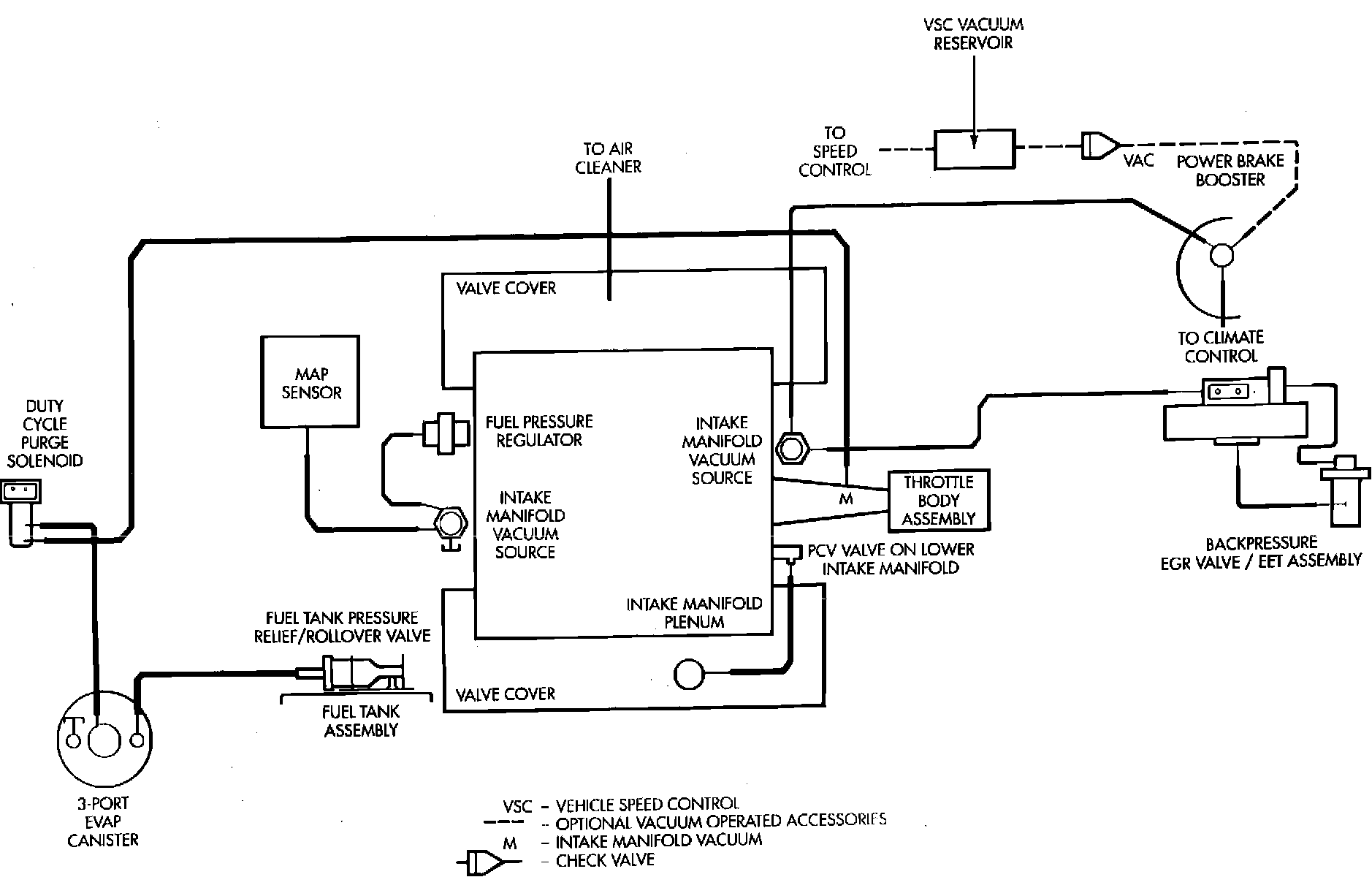

Engine Vacuum Schematic:
