Home >> Plymouth >> 1994 >> Sundance V6-181 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 3

Part 3

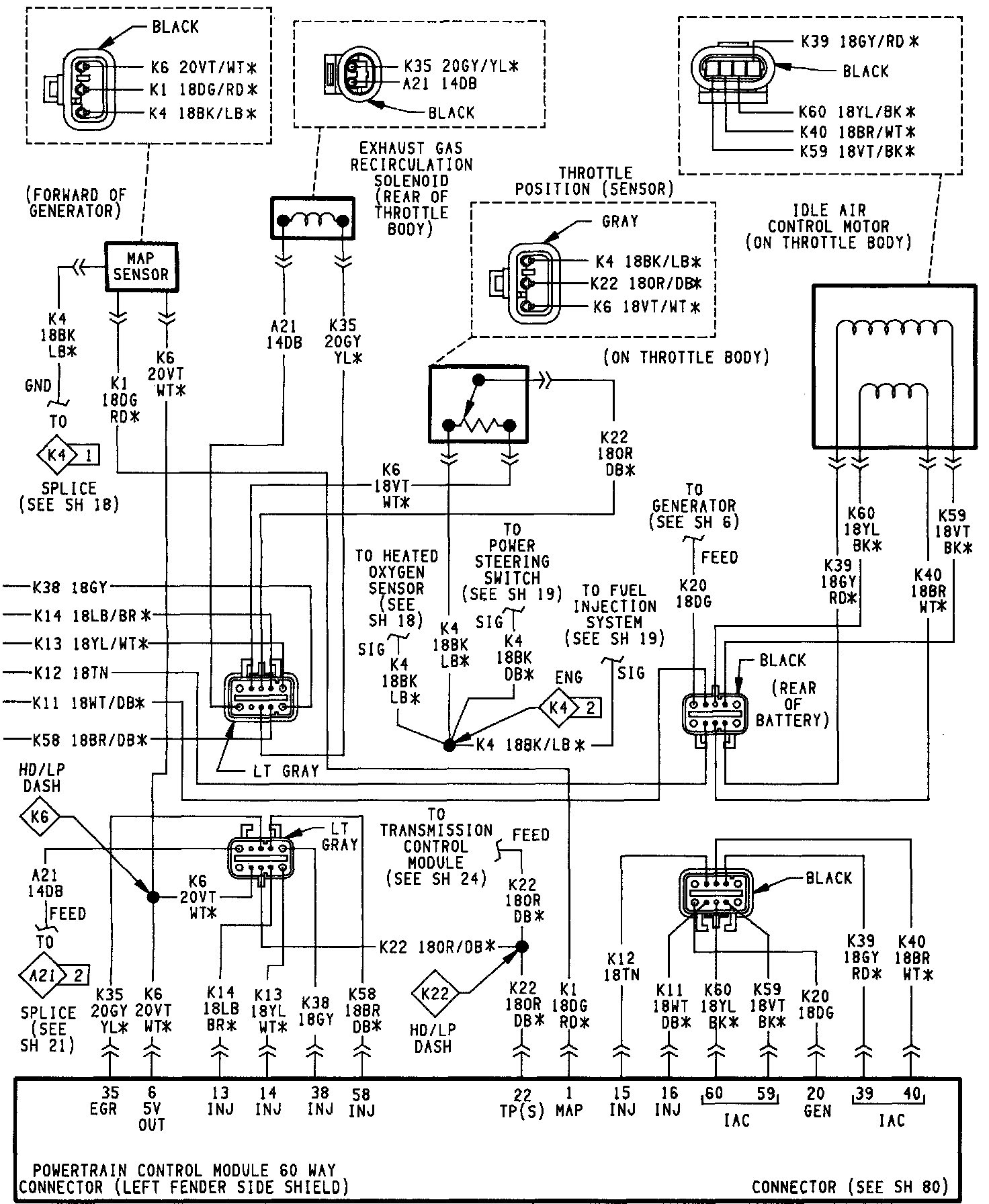

Fuel Injection & Ignition System (Part 3 of 5):
