Test 24A Washer Pump System Testing
Test 24A Washer Pump System Testing

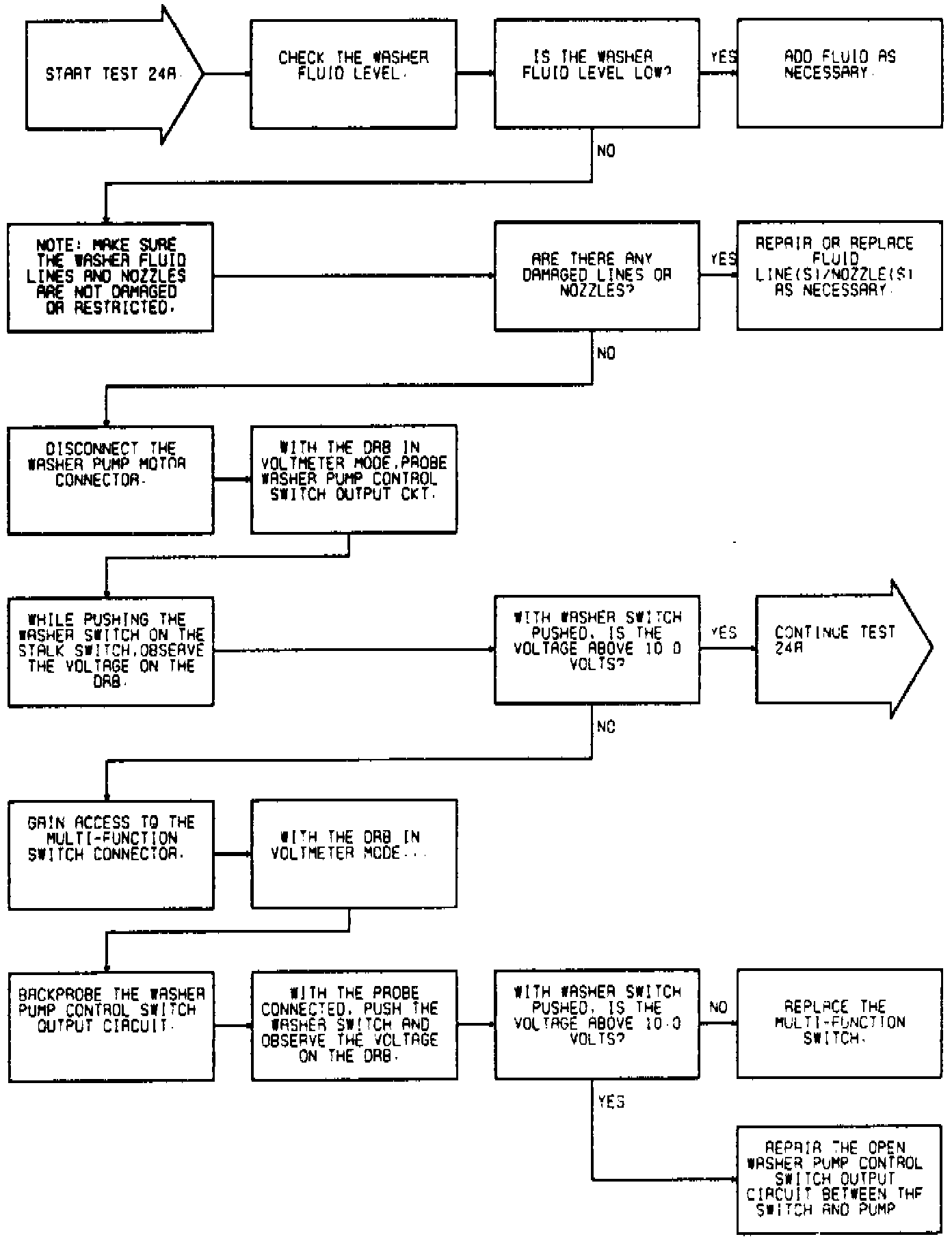

Fig.13 Test 24a: Washer Pump System Testing (Part 1 Of 2):
