Test 24C Wiper Park Switch Testing
Test 24C Wiper Park Switch Testing

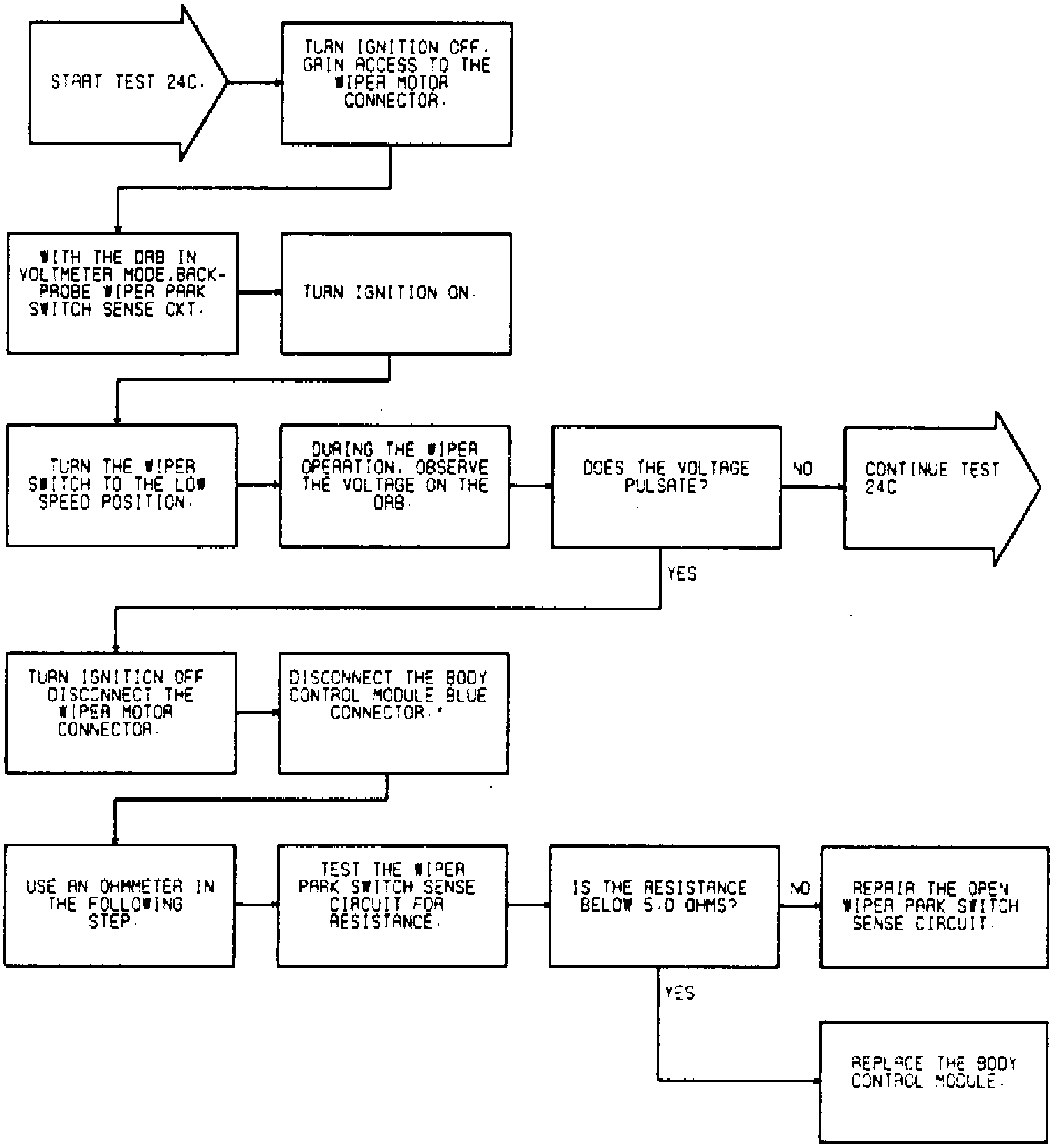

Fig.15 Test 24C: Wiper Park Switch Testing (Part 1 Of 2):
