Child Seat

Child Restraint Seat Back:

CHILD RESTRAINT SEAT BACK
Removal
1. Remove rear seat cushion.
2. Open child seat and remove lining.
3. Remove bolts holding seat back frame to trunk closure panel through access holes in child seat module.
4. Remove bolts holding bottom of rear seat back and seat belts to floor.
5. Lift seat back upward to disengage retainer hooks from trunk closure panel.
6. Separate rear seat back from vehicle.

Installation
1. Move child restraint seat back into position in vehicle.
2. Push seat back downward to engage hooks into trunk closure panel.
3. Install bolts holding bottom of rear seat back and seat belts to floor.
4. Install bolts holding seat back frame to trunk closure panel through access holes in child seat module.
5. Install child seat lining and close child seat.
6. Install rear seat cushion.

Child Seat Module:

CHILD SEAT MODULE
Removal
1. Remove rear seat back from vehicle.
2. Slide lower bolster cushion retainer from channel on child seat cushion.
3. Separate lower bolster from seat child seat.
4. Remove liner from child seat module.
5. Disengage push-in fasteners holding upper bolster to child seat module above shoulder belts.

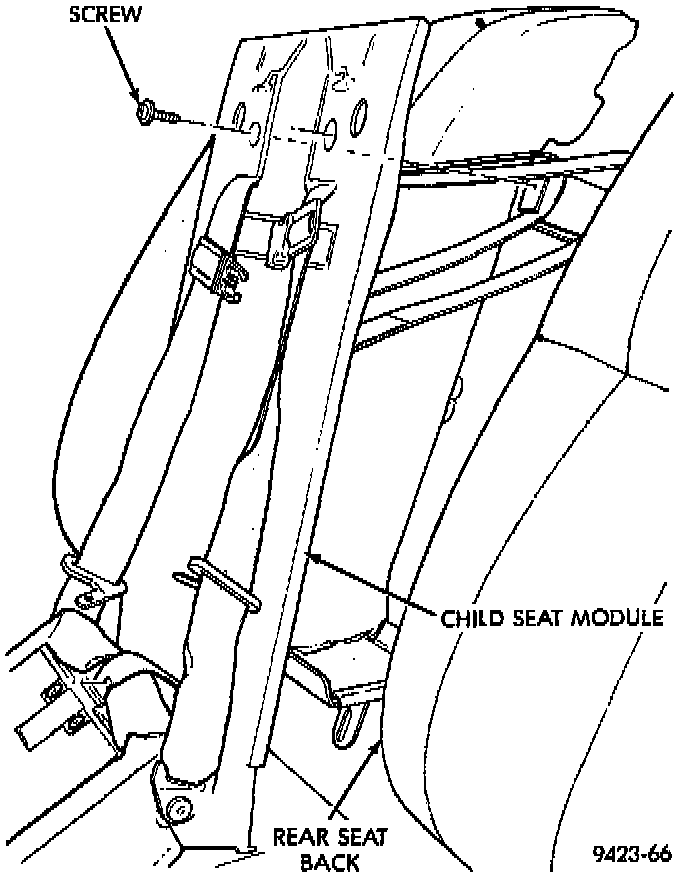

6. Remove screws ho] ding top of child seat module to seat back frame from behind shoulder belts.
7. Remove screws holding bottom of child seat module to seat back frame.
8. Separate child seat module from seat back.

Installation
1. Place child seat module in position on seat back.
2. Install screws to hold bottom of child seat module to seat back frame.

CAUTION: Do not capture seat belt webbing between module and seat back frame when installing upper screws.

3. Install screws to hold top of child seat module to seat back frame from behind shoulder belts.
4. Engage push-in fasteners to hold upper bolster to child seat module above shoulder belts.
5. Install liner in child seat module.
6. Place lower bolster in position on seat child seat.
7. Slide lower bolster cushion retainer into channel on child seat cushion.
8. Install rear seat back in vehicle.
