Cruise Control

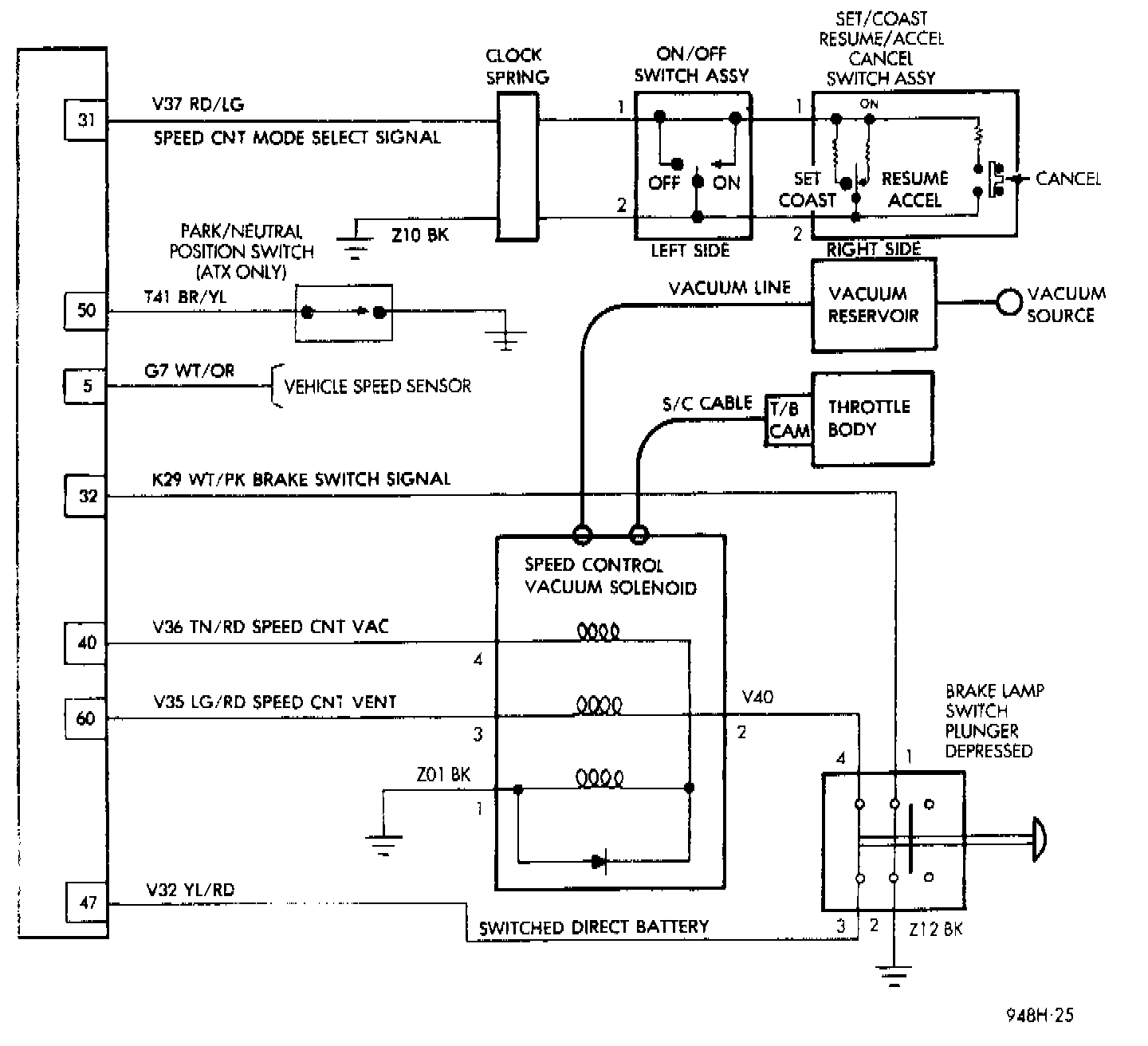

Vacuum/Electrical Schematic:

Note:
- This image is a schematic only, if a wiring color discrepancy exists with an electrical diagram, use the diagram.
- This schematic is included here to show the vacuum for the vehicle speed control system.
