Odometer: Service and Repair

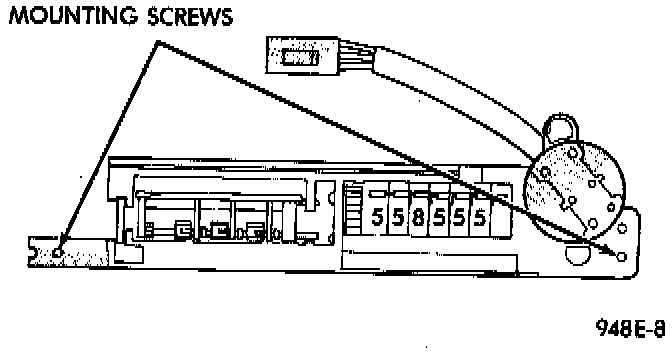

Fig. 6 Odometer:

REMOVAL
1. Remove instrument panel top cover and cluster bezel.
2. Remove four screws attaching cluster to instrument panel.
3. Remove cluster.
4. Remove six screws attaching PC board cover to cluster.
5. Disconnect odometer connector from printed circuit board.
6. Remove six screws attaching lens, dial and gauge assembly to housing. The bottom screws attaching lens to housing can be accessed without removing foam pad.
7. Remove lens and dial and gauge assembly from housing.
8. Remove two screws holding odometer to dial and gauge assembly When setting dial/gauge and/or cluster assembly down, it must be face up or damage will occur to the gauge operation.

INSTALLATION
1. For installation reverse above procedures.

NOTE: Carefully place board on the cluster and ensure that the odometer connector is placed through the board. Gently press board on cluster with a slight rocking motion to assure pins on gauges line up.
