Wiring Diagrams

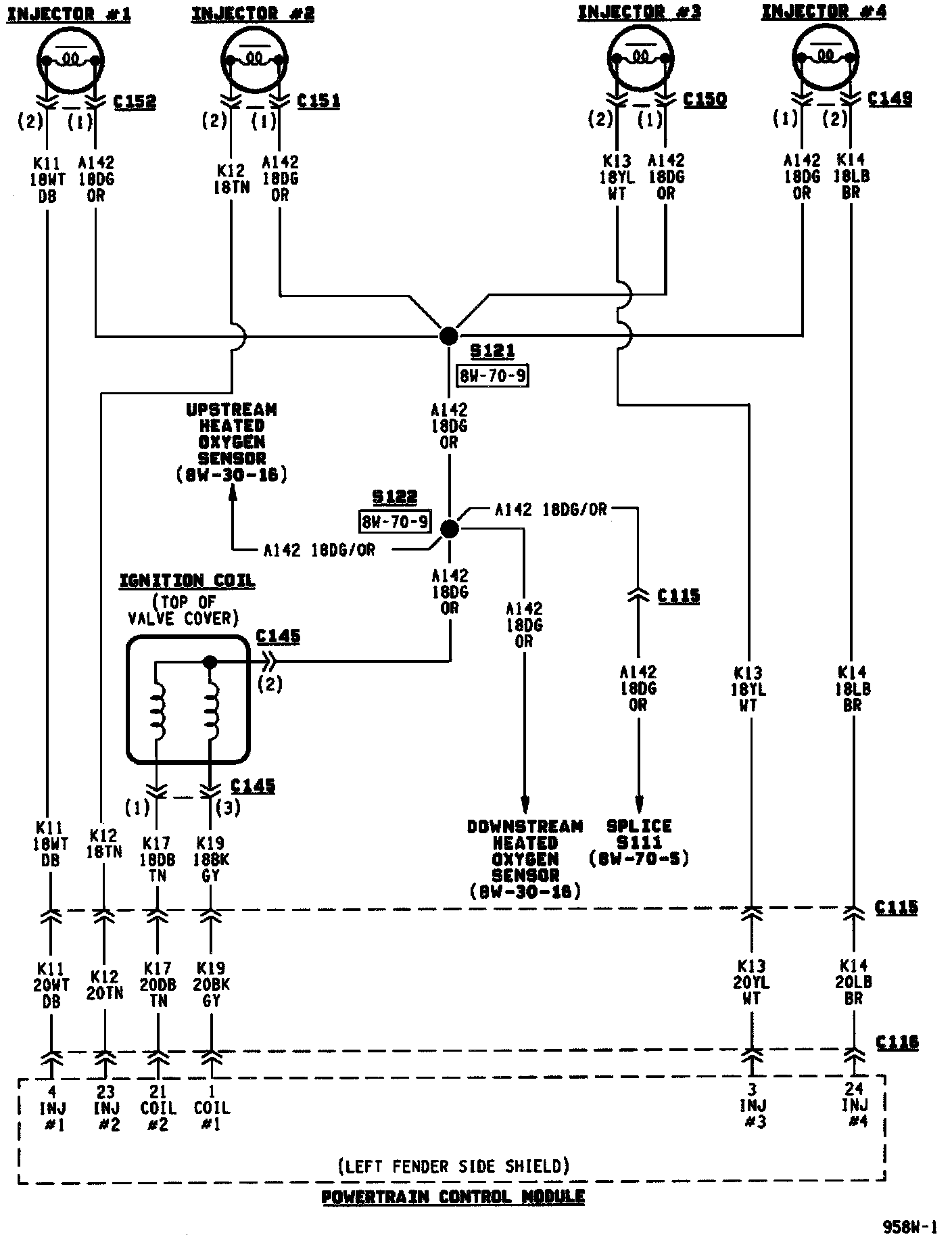

Fuel/Ignition (Part 1 Of 11):

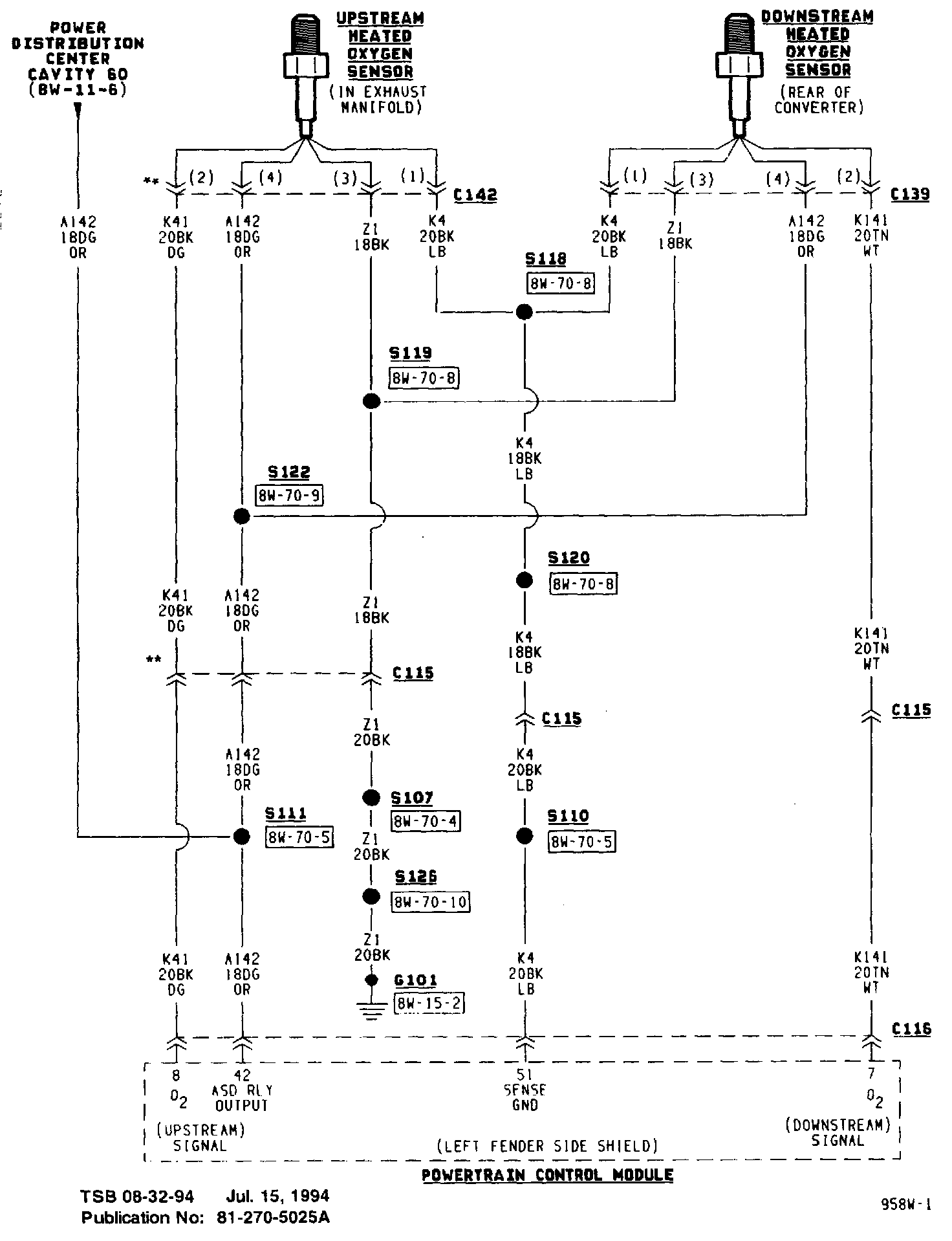

Fuel/Ignition (Part 2 Of 11):

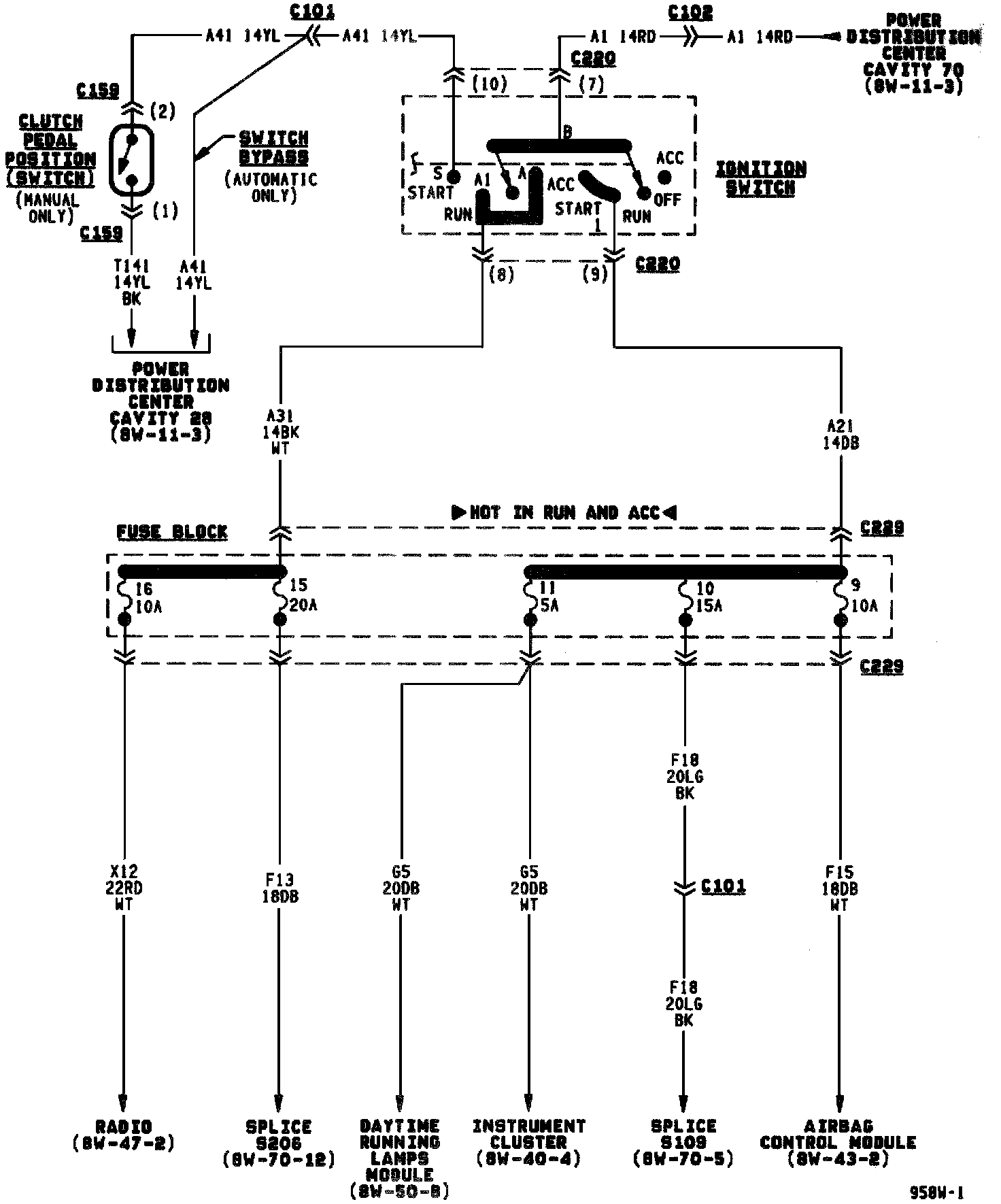

Fuel/Ignition (Part 3 Of 11):

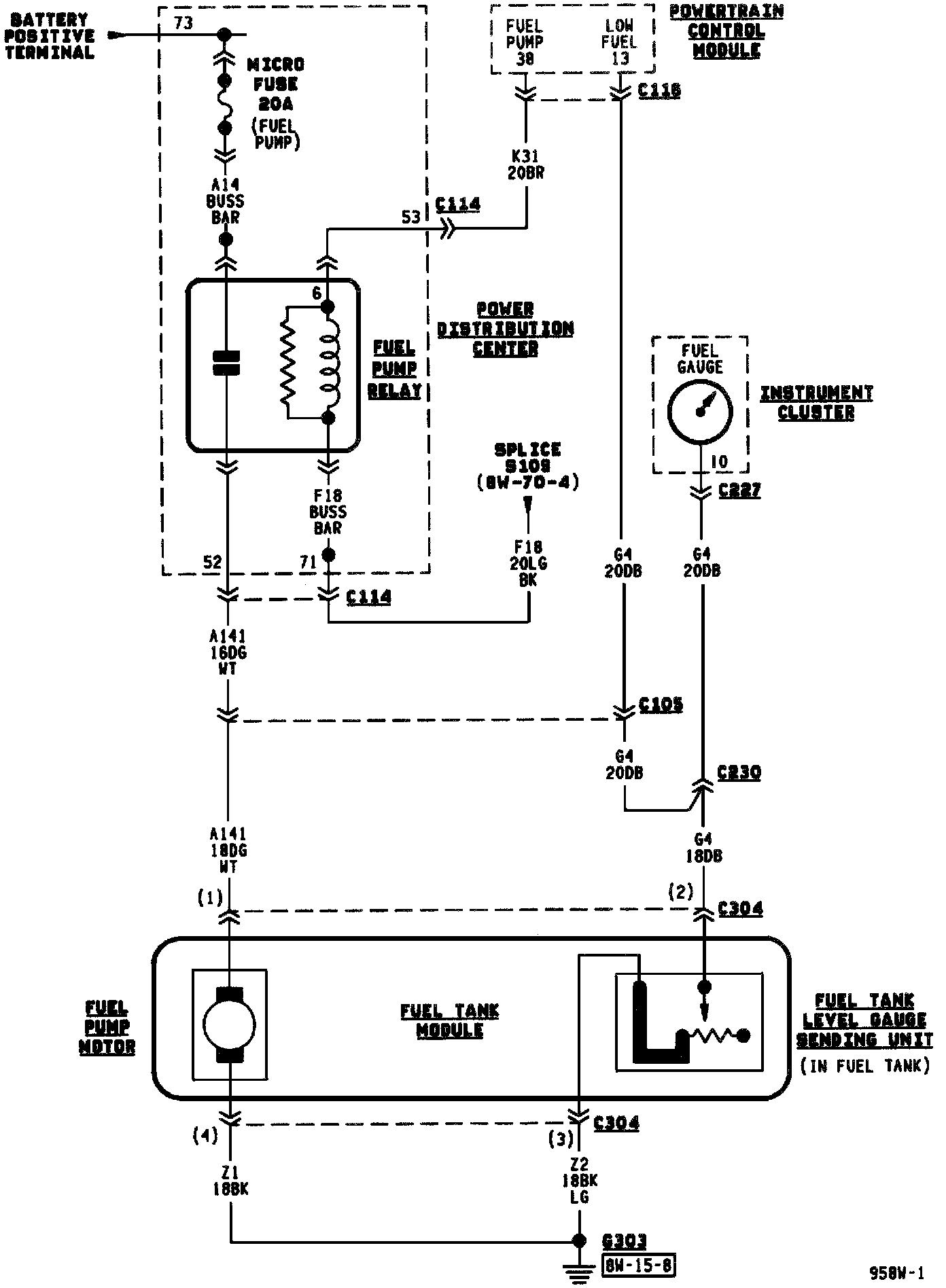

Fuel/Ignition (Part 4 Of 11):

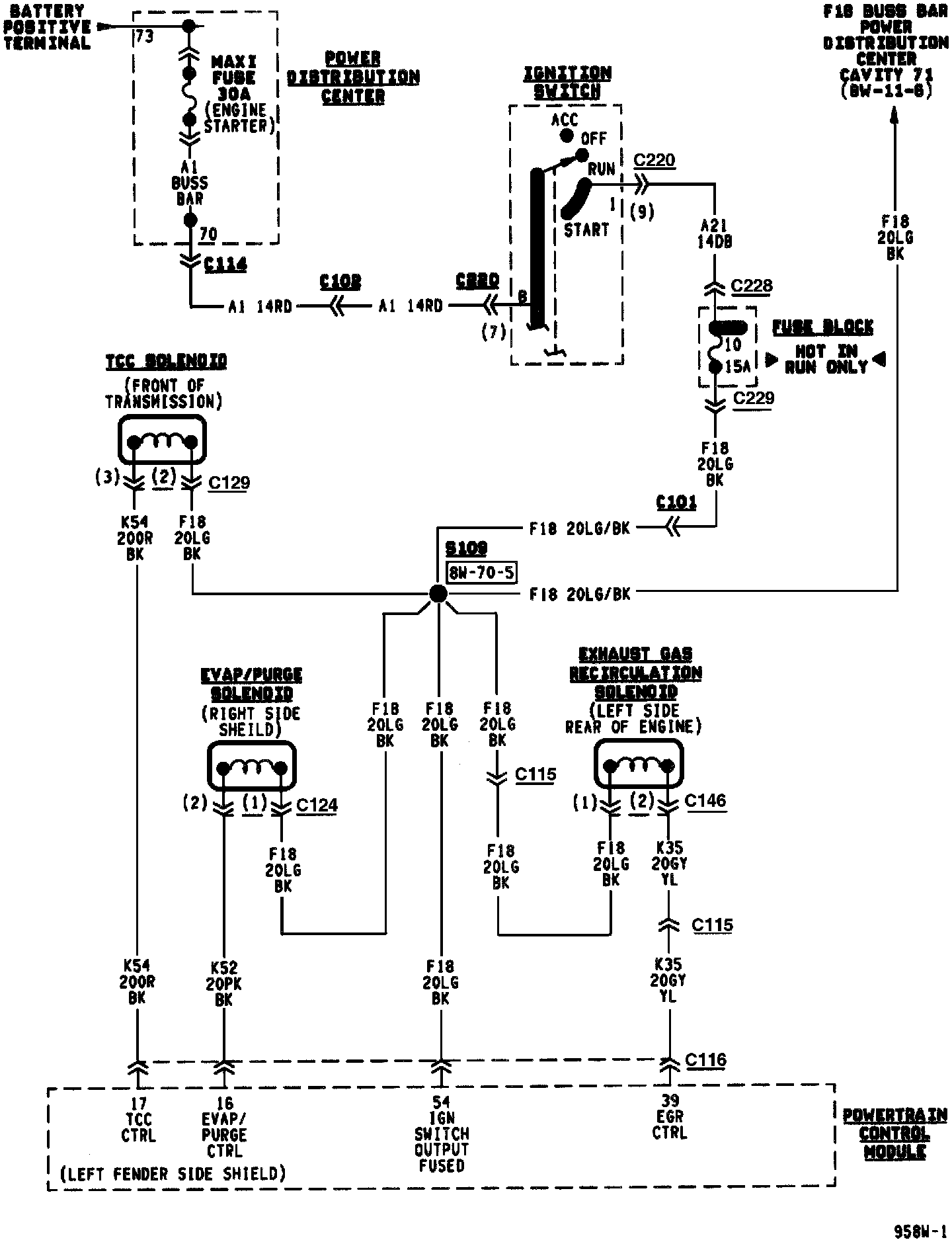

Fuel/Ignition (Part 5 Of 11):

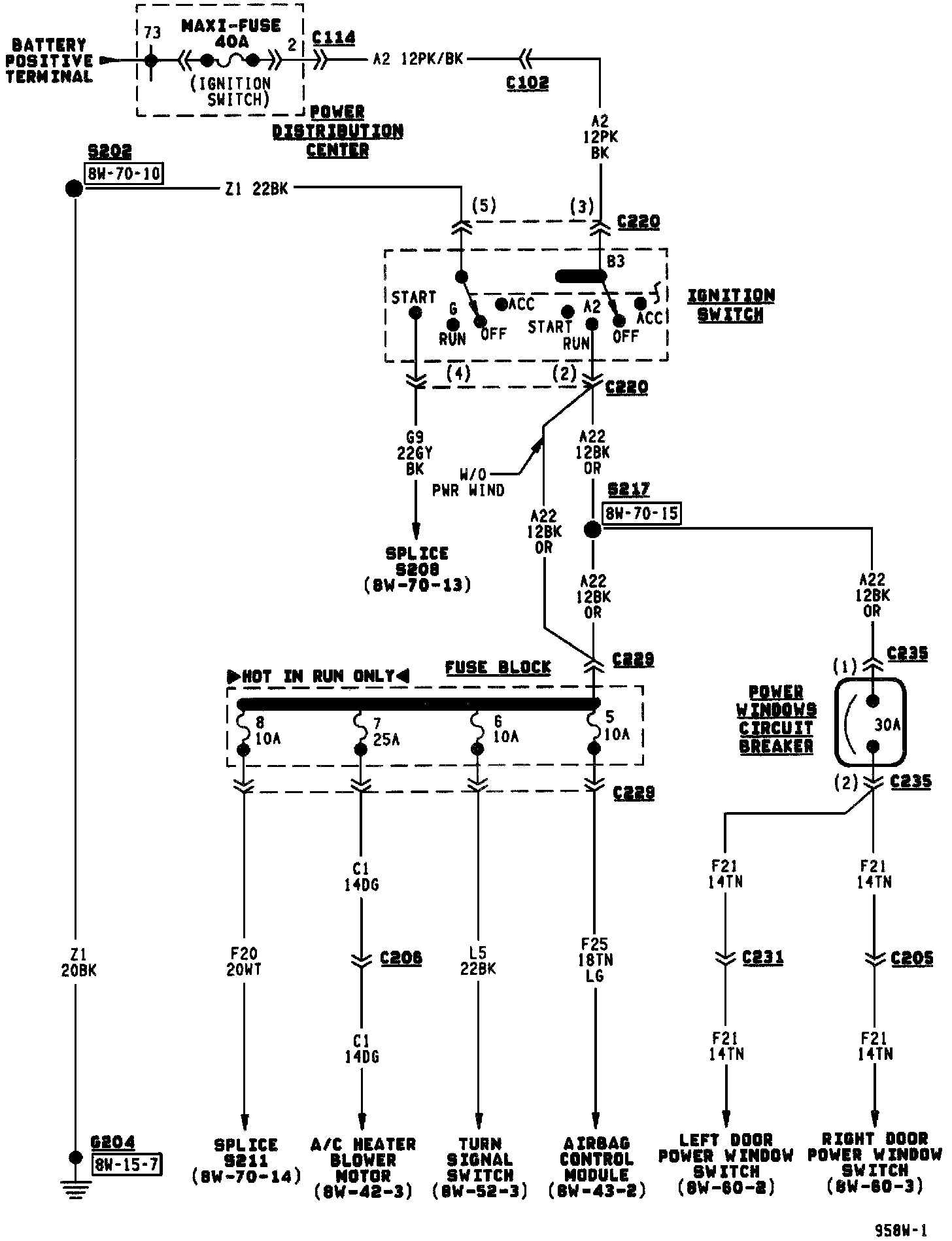

Fuel/Ignition (Part 6 Of 11):

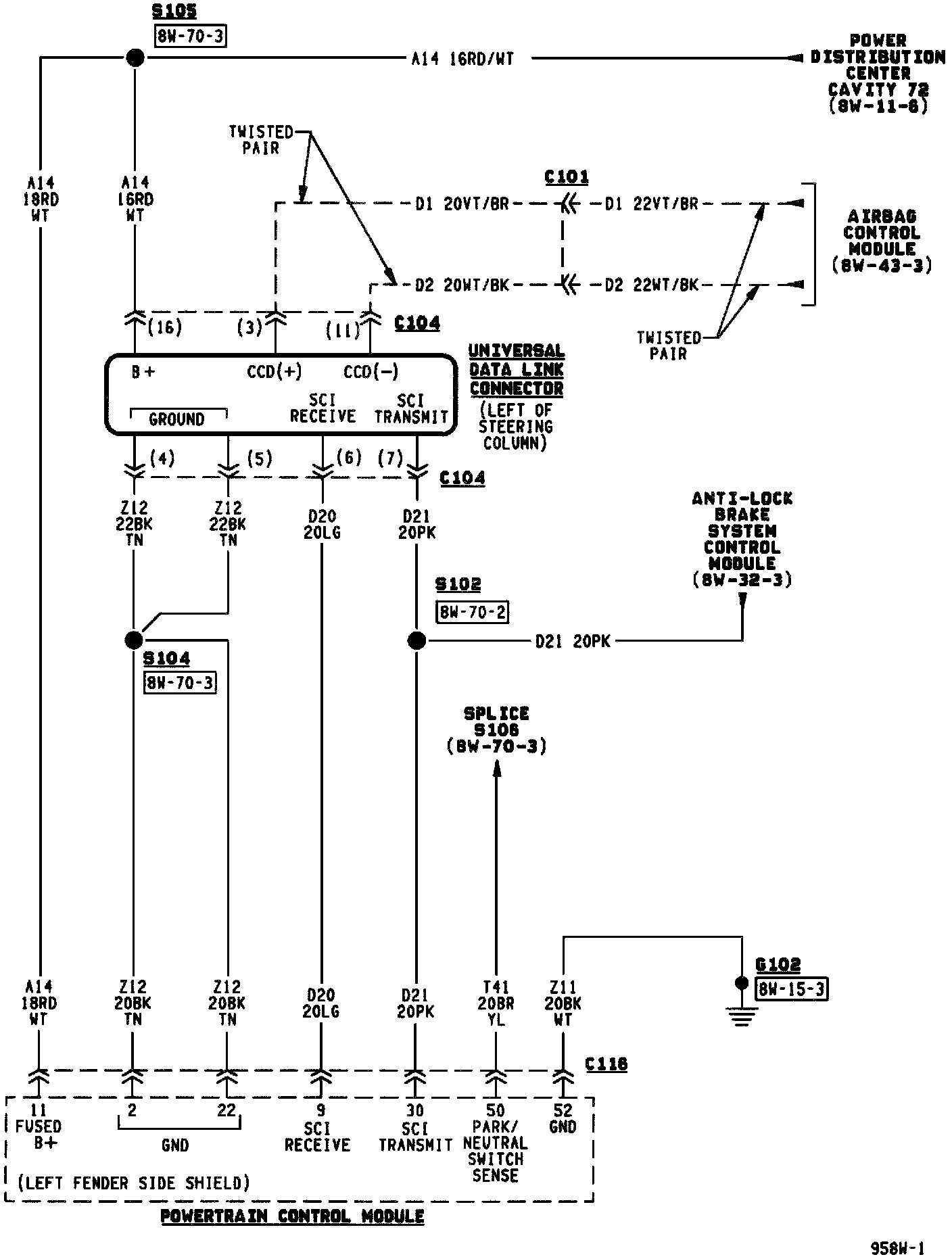

Fuel/Ignition (Part 7 Of 11):

Fuel/Ignition (Part 8 Of 11):

Fuel/Ignition (Part 9 Of 11):

Fuel/Ignition (Part 10 Of 11):

Fuel/Ignition (Part 11 Of 11):

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
