Electrical Accessory Panel: Description and Operation

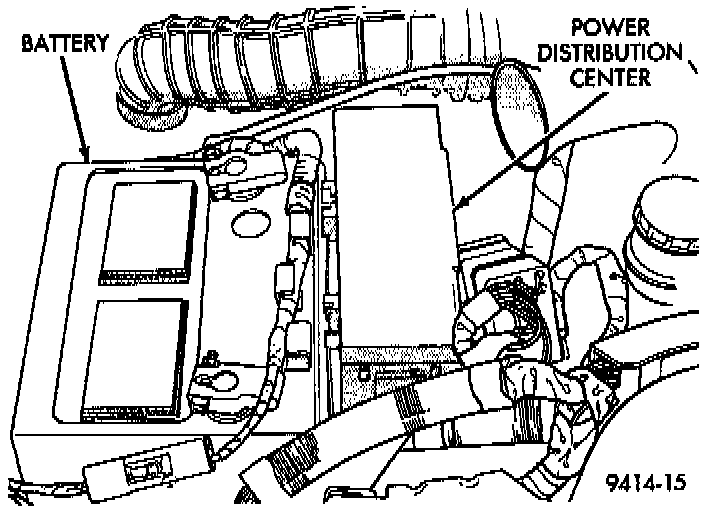

Fig. 1 Power Distribution Center (PDC):

The Power Distribution Center ([1][2]PDC) is located next to the battery.

The [1][2]PDC contains:
- Starter Relay
- Radiator Fan Relay
- A/C Compressor Clutch Relay
- Auto Shutdown (ASD) Relay
- Fuel Pump Relay
- and several fuses
