B Post - Wind Noise
NO: 23-29-94GROUP: Body
DATE: Mar. 25, 1994
SUBJECT:
Wind Noise at B-Post Belt Line
MODELS:
1995 (PL) Neon
NOTE:
THIS BULLETIN APPLIES TO VEHICLES BUILT PRIOR TO 2/15/94, MDH 021501.
SYMPTOM/CONDITION:
Wind noise at the rear edge of front side glass at the B-Post near the belt line. The noise can be described as a "whispery" type sound and occurs at freeway speeds typically in excess of 55 mph.
PARTS REQUIRED:
AR 6502328 Push Pin
AR 4318028 Vinyl Foam Tape
REPAIR PROCEDURE:
This bulletin involves adding vinyl foam tape under the B-Post body seal on one or both sides of the vehicle.

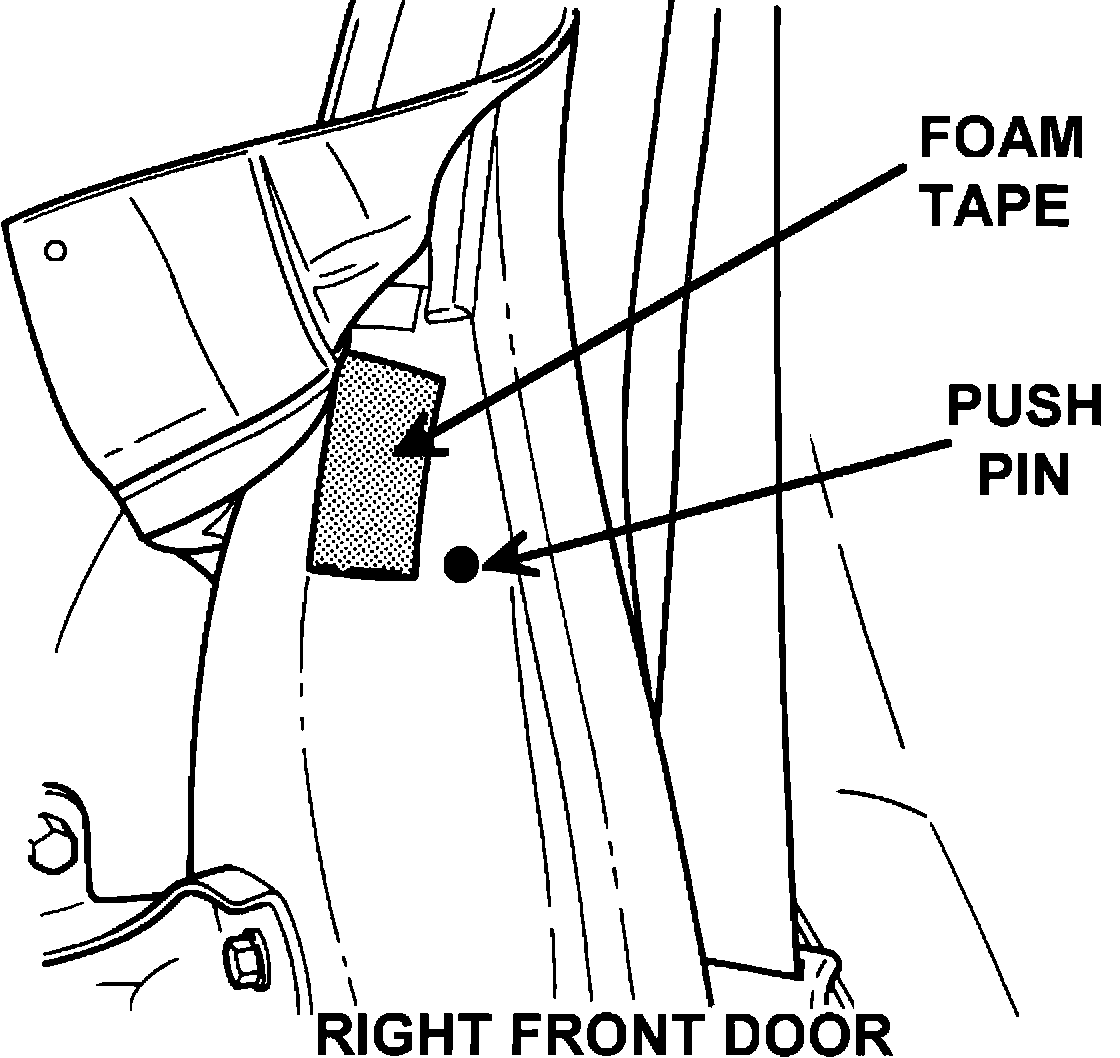

1. Remove the black push pin from the B-Post seal and pull back the seal to expose the B-Post (See Illustration).
2. Cut a 2 inch long piece of vinyl foam tape, P/N 4318028, and attach it to the B Post in the area identified in the illustration.
3. Re-install the B-Post seal and ensure that the foam tape is not visible from the outside. Secure the seal in place with a new push pin, P/N 4658673.
4. Repeat steps 1 through 3 for the opposite side if required.
POLICY: Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
Labor Operation No: 23-51-09-90 One Or Both Sides 0.3 Hrs.
FAILURE CODE: 8X - Wind Noise
