Brake Master Cylinder - Manual Updates
NO: 05-07-94GROUP: Brakes
DATE: Apr. 22, 1994
SUBJECT:
Service Manual Revision -
Brake System Master
cylinder
MODELS:
1995 (PL) Neon
DISCUSSION:
This technical service bulletin contains revised service manual pages. The revisions are marked with **ASTERISKS**.
Please insert the attached revised service manual pages in the appropriate Service Manual.
MANUAL PUBLICATION NO. PAGES CHANGE

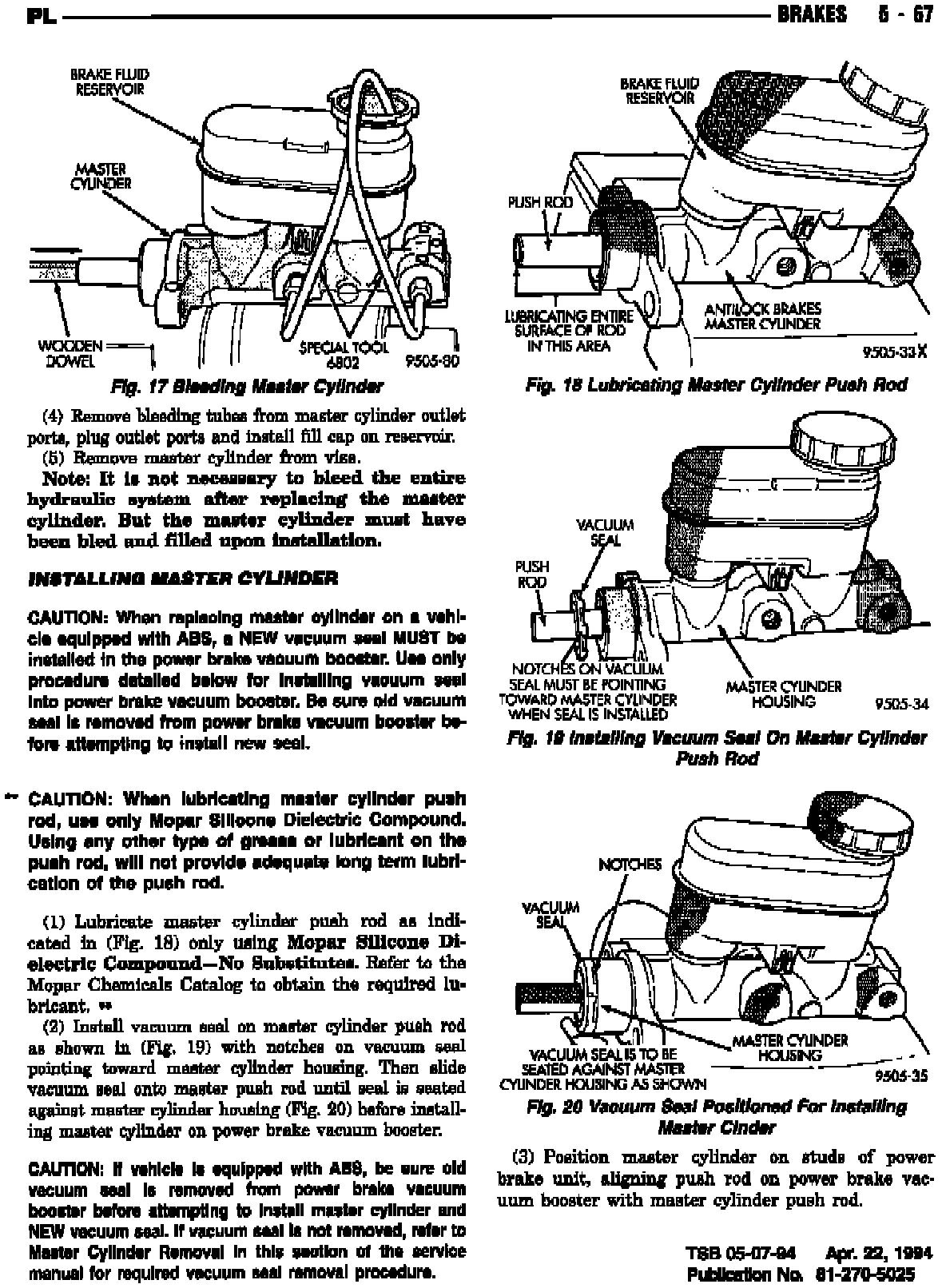

1995 Neon 81-270-5025 5-67 Push Rod Lubricant

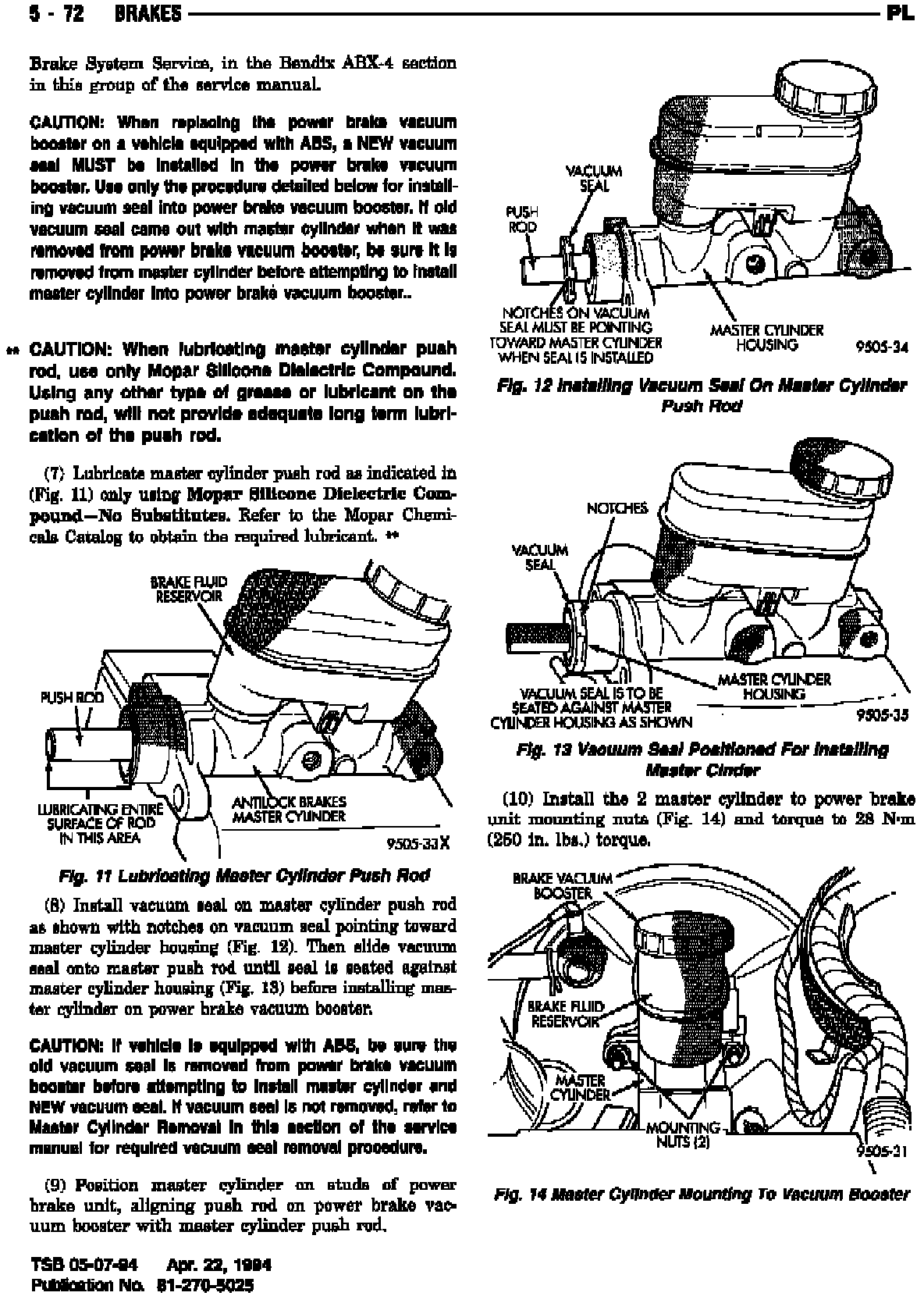

5-72 Push Rod Lubricant

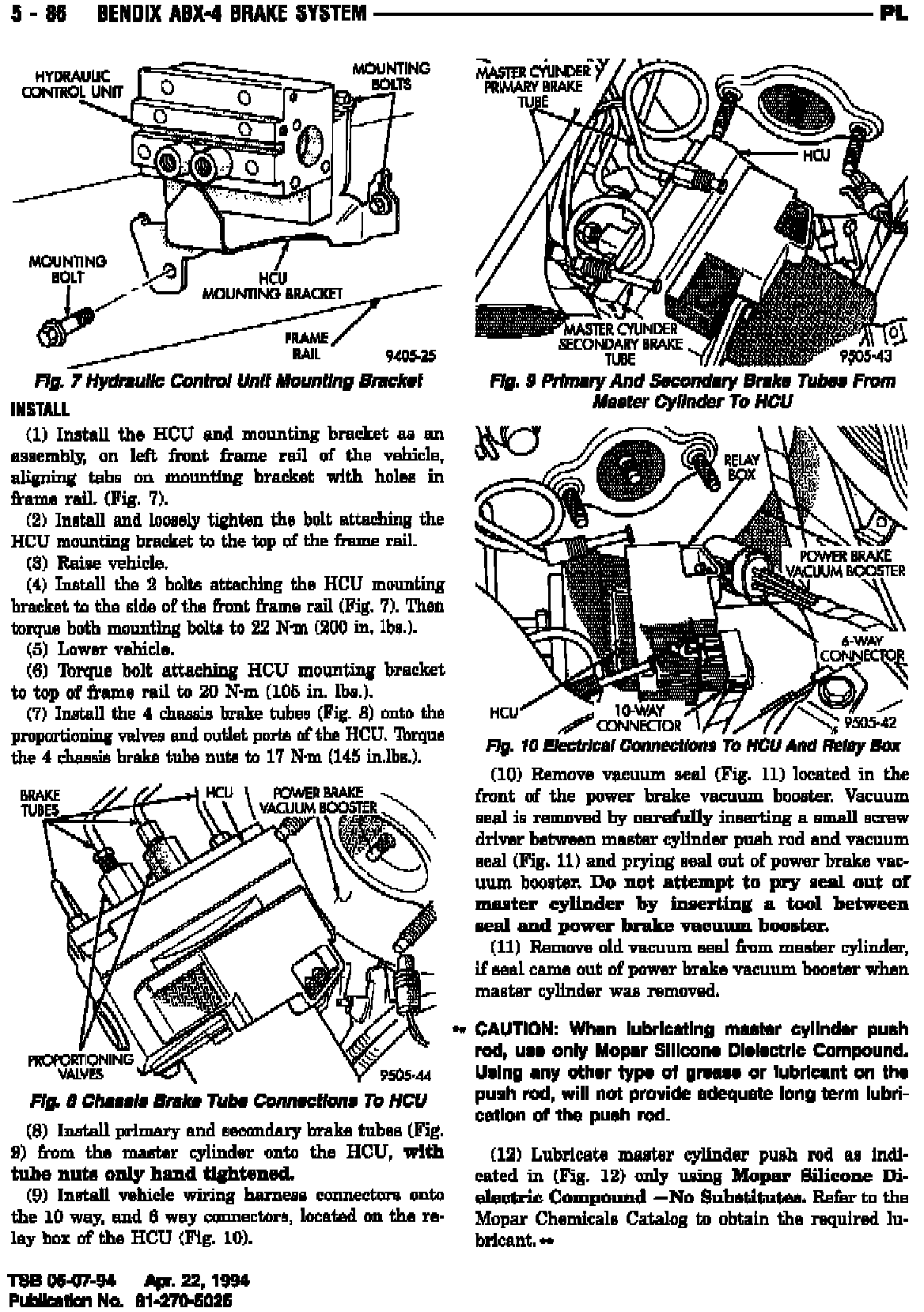

5-86 Push Rod Lubricant
NOTE:
THE REVISION PAGES ARE REDUCED IN SIZE TO ACCOMMODATE PLACEMENT OVER THE EXISTING PAGE. TWO SIDED TAPE IS ALSO APPLIED TO MAKE INSERTION INTO THE SERVICE MANUAL PERMANENT AND LESS CUMBERSOME.
POLICY: Information Only
