Clutch Pedal - Up Stop/Spacer Installation
NO.: 06-04-94GROUP: Clutch
DATE: Oct. 7, 1994
SUBJECT:
Clutch Up Stop/Spacer Installation
MODELS:
1995 (PL) Neon
DISCUSSION:

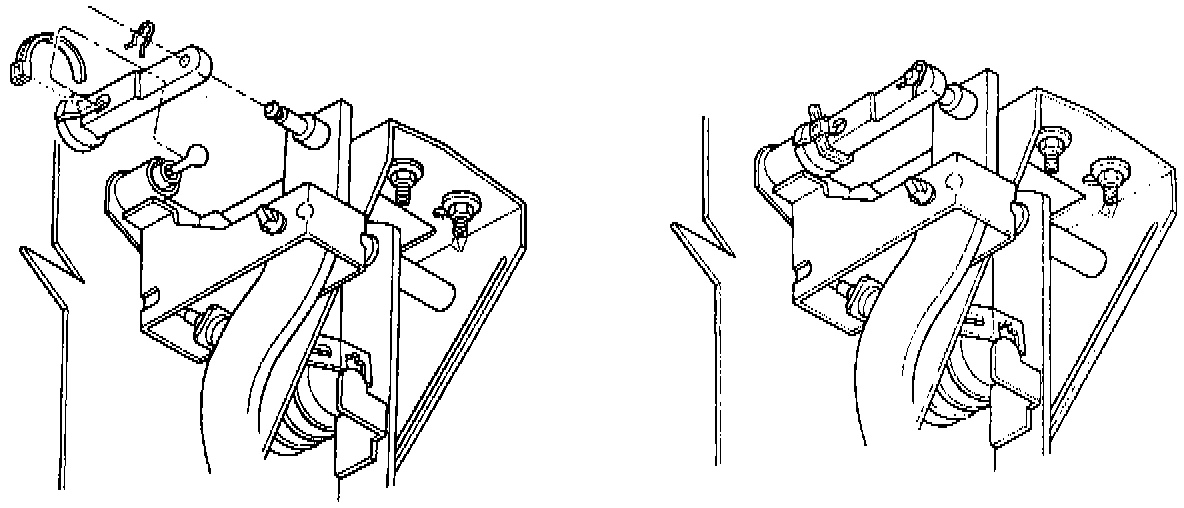

The installation procedure for the clutch up stop/spacer has been changed to provide for a more positive engagement onto the clutch pedal pin. The illustration provides the details for the new installation procedure.
When replacing the up stop/spacer for any reason, use this installation procedure and the new parts replacement package listed in Parts Required.
Note:
The clutch cable adjustment procedure remains the same as before.
PARTS REQUIRED:
1 4796913 Package - Clutch Up Stop/Spacer
POLICY: Information Only
