Control Arm Bushings - Steering Wheel Oscillation
NO: 22-01-95GROUP: Wheels & Tires
DATE: Jan. 27, 1995
SUBJECT:
Smooth Road Steering Wheel Oscillation
MODELS:
1995 (PL) Neon
NOTE:
THIS BULLETIN APPLIES TO VEHICLES BUILT PRIOR TO JAN. 3, 1995 (MDH 1-03-XX).
SYMPTOM/CONDITION:
A smooth road steering wheel oscillation/vibration back and forth may be observed when driving above 50 MPH.
PARTS REQUIRED:

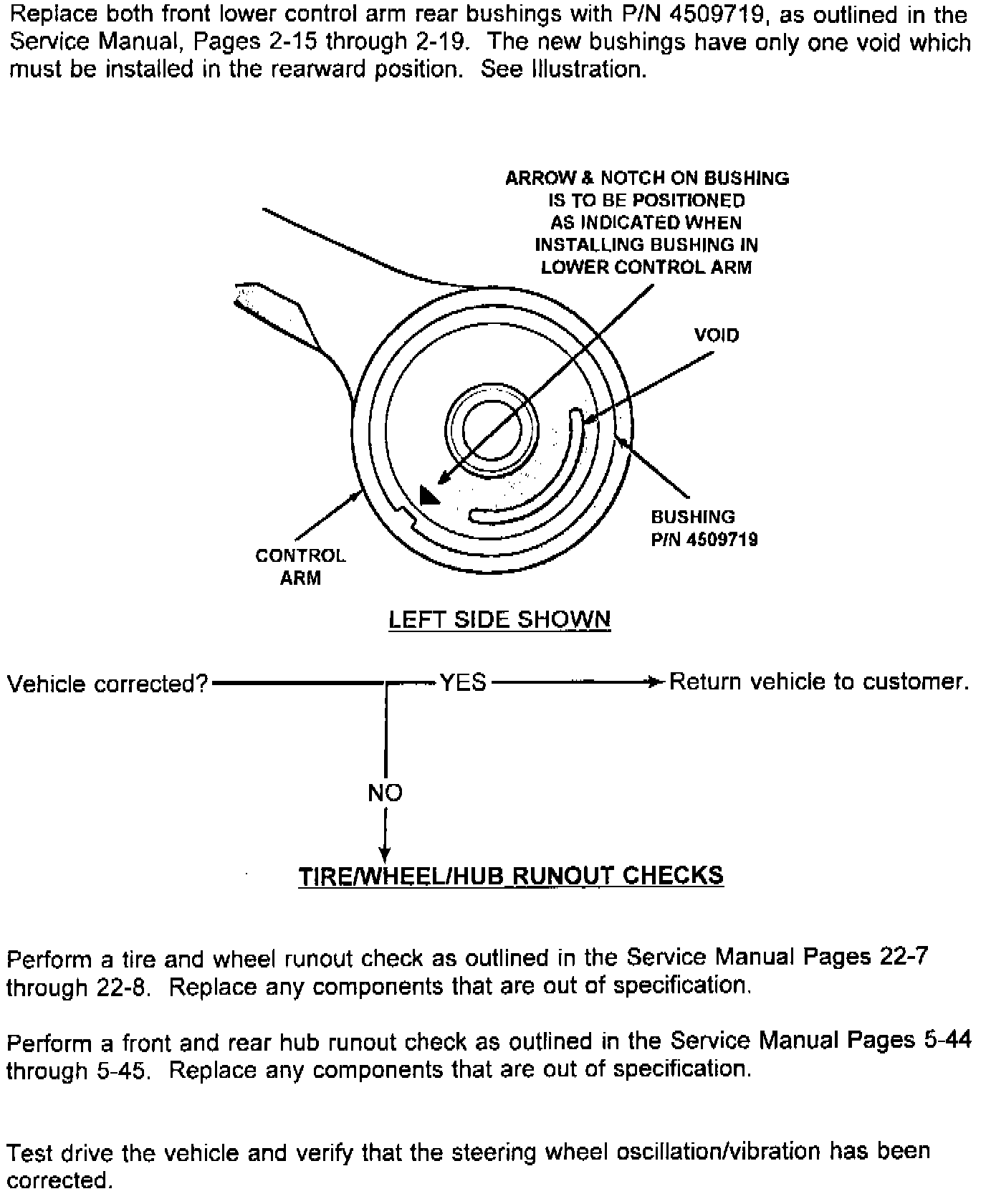

AR 4509719 Bushing, Front Lower Control Arm Rear
DIAGNOSIS/REPAIR PROCEDURE:

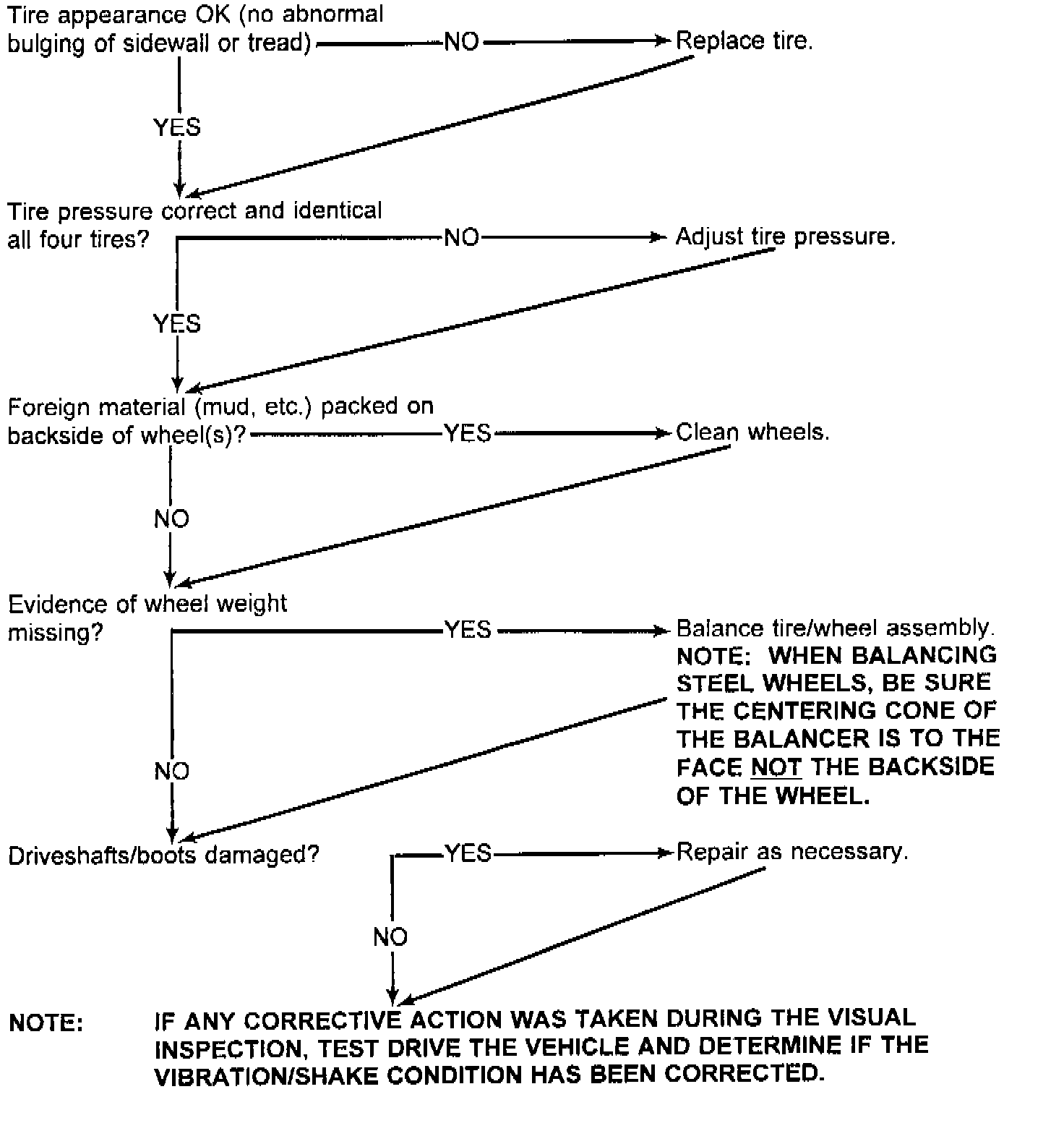

Use the flow charts for diagnosis and correction:
POLICY: Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
Labor Operation No:
Dynamic Check. Visual Insp. & Road Test
22-40-02-93 0.6 Hrs.
Dynamic Check, Visual Insp., Road Test, Balance Tires, and 2nd Road Test
22-40-02-94 1.3 Hrs.
Dynamic Check, Visual Insp., Road Test, Balance Tires, 2nd Road Test. Align Front End
22-40-02-95 2.0 Hrs.
Dynamic Check, Visual Insp., Road Test, Balance Tires, 2nd Road Test, Align Front End & Install Lower Control Arm Bushing. and 3rd Road Test
22-40-02-96 3.4 Hrs.
Dynamic Check, Visual Insp., Road Test, Balance Tires, 2nd Road Test, Align Front End & Install Lower Control Arm Bushing, 3rd Road Test, and Check Wheel/Tire and Front and Rear Hub Runout
22-40-02-97 5.4 Hrs.
Match Mount Tire/Wheel Assembly (Ea. Wheel/Tire Assembly)
22-40-02-98 0.5 Hrs.
FAILURE CODE: P8 - New Part
