Steering Column Dash Seal - Noise To The Interior
NO: 23-26-94GROUP: Body
DATE: Mar. 18, 1994
SUBJECT:
Engine Noise In Passenger Compartment
MODELS:
1995 (PL) Neon
SYMPTOM/CONDITION:
Excessive engine noise coming from the under the dash on the drivers side of the vehicle.
DIAGNOSIS:

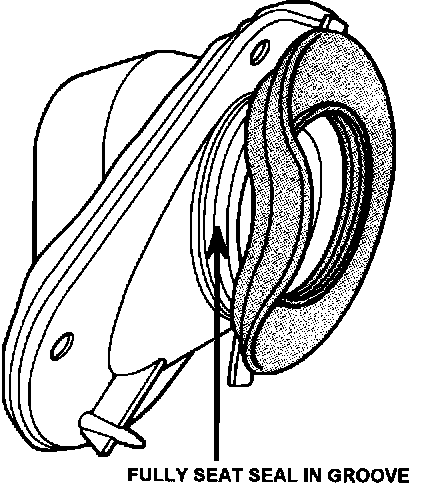

Visually inspect the lower steering column dash seal to dash cover. If it is not fully seated, proceed with the repair procedure. See Illustration.
REPAIR PROCEDURE:
This bulletin involves re-installing the lower steering column dash seal to dash cover.
Re-install the lower steering column dash seal to dash cover. Make sure the entire circumference is seated in the groove on the dash cover, and seal is not cut, ripped, or deformed. Replace the seal if it is damaged.
POLICY:Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
Labor Operation No: 23-11-41-90 0.2 Hrs.
FAILURE CODE: 51- Improperly Installed
