Wheel Cover - Clicking Noise

NO: 22-05-94

GROUP: Wheels & Tires

DATE: Sep. 30, 1994

SUBJECT:
Wheel Cover Noise

MODELS:

1995 (PL) Neon

NOTE:
THIS BULLETIN APPLIES TO SPORT MODELS EQUIPPED WITH 14", CENTRIFUGE WHEEL COVERS BUILT PRIOR TO 5/9/94, (MDH 05-09-XX).

SYMPTOM/CONDITION:

A "cycling" clicking noise coming from the wheel area of the vehicle. The sound is most noticeable when the vehicle is driven at low speeds.

DIAGNOSIS:

Remove all four wheel covers and drive the vehicle. If the noise is eliminated, proceed with the repair procedure.

PARTS REQUIRED:

AR 4472591 Cover, Full Wheel, Brushed Aluminum
AR 4472593 Cover, Full Wheel, White

REPAIR PROCEDURE:

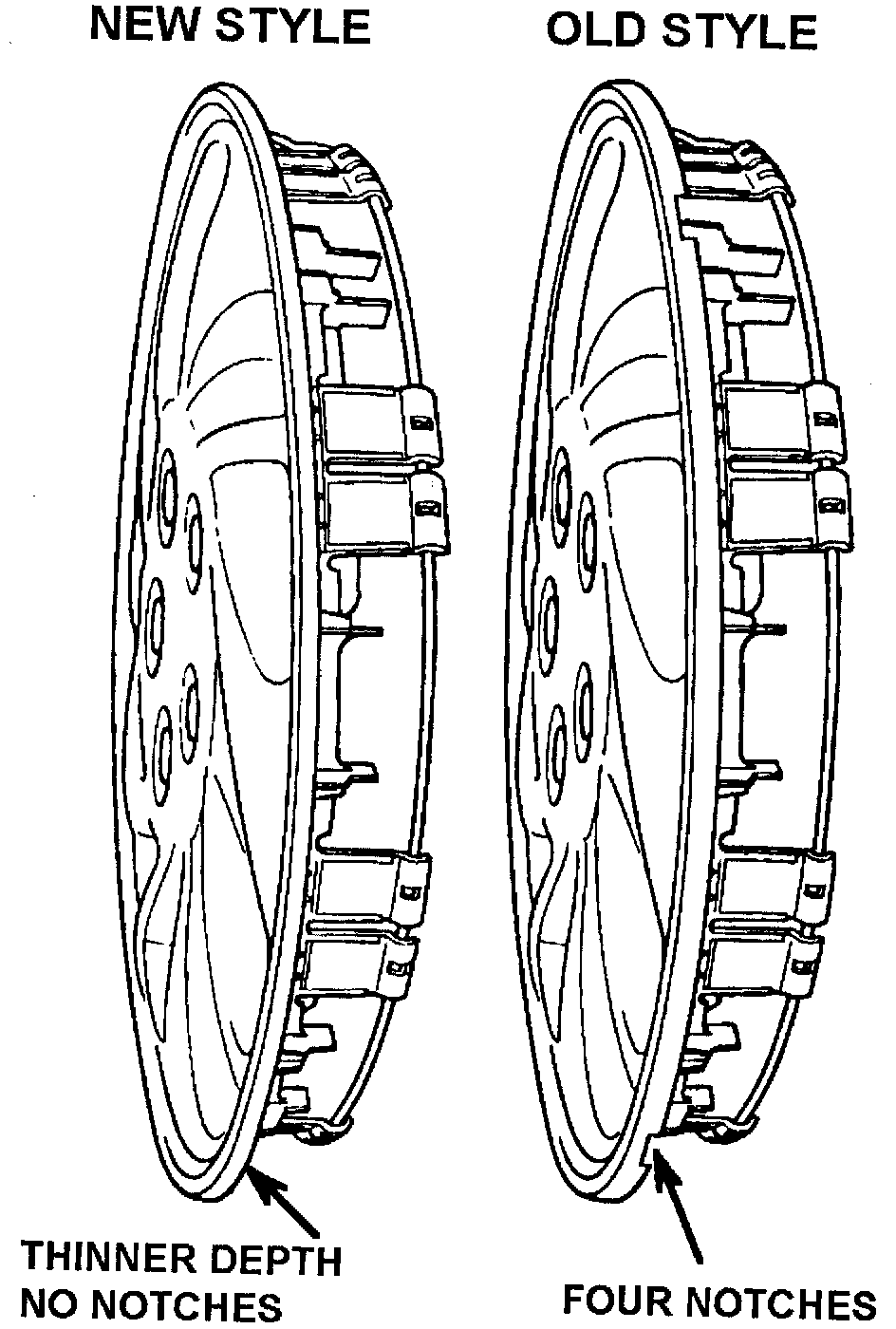

This bulletin involves replacing all four wheel covers with revised parts. See illustration for identification of wheel covers.

Replace the wheel covers with appropriate parts, as called out in the parts required section.

POLICY: Reimbursable within the provisions of the warranty.

TIME ALLOWANCE:
Labor Operation No: 22-20-01-90 0.2 Hrs.

FAILURE CODE: P8 - New Part
