Home >> Plymouth >> 1995 >> Neon L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> Figure 18

Figure 18

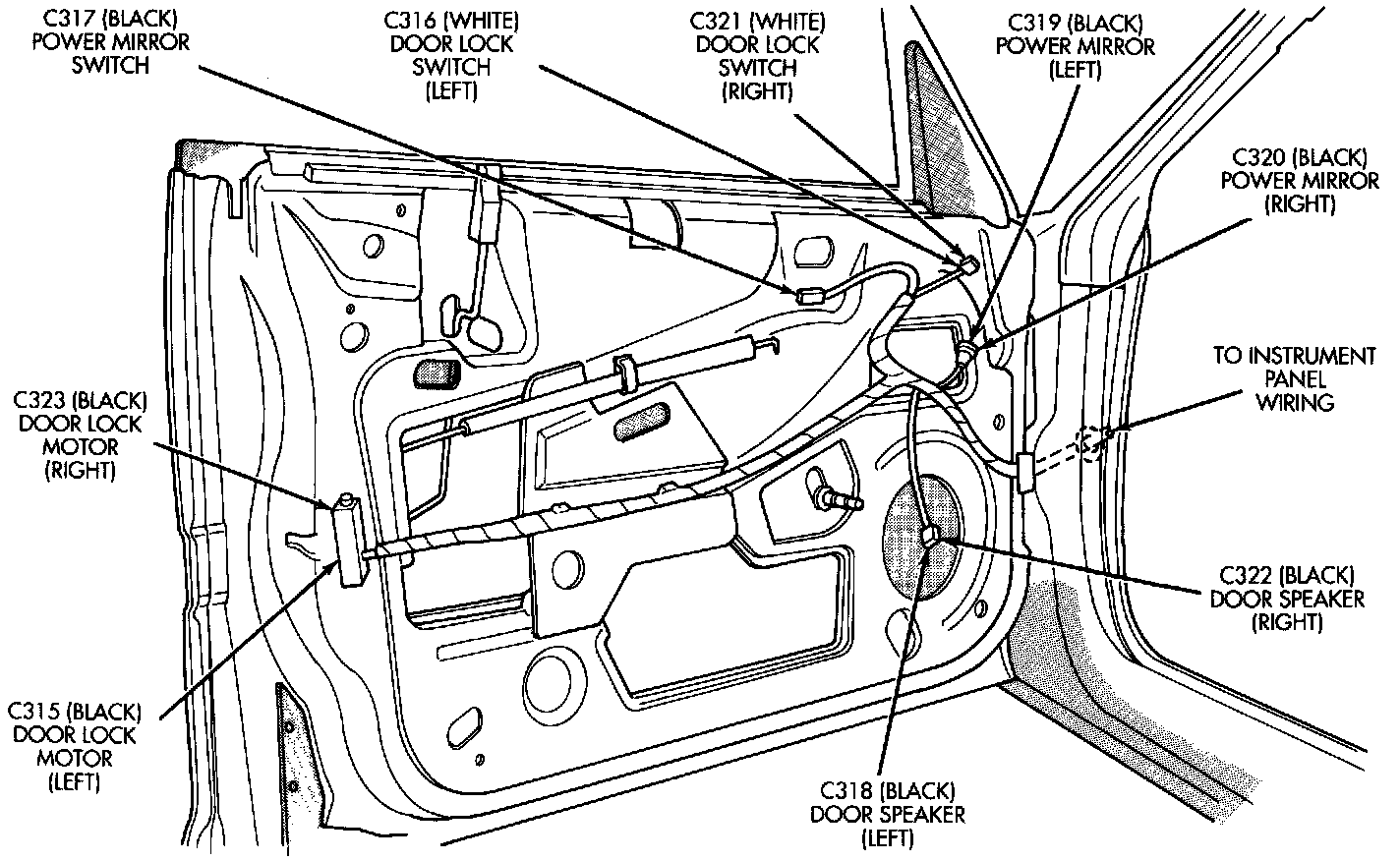

Fig.18 Door Connections (Front):
