Home >> Plymouth >> 1995 >> Neon L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> Figure 20

Figure 20

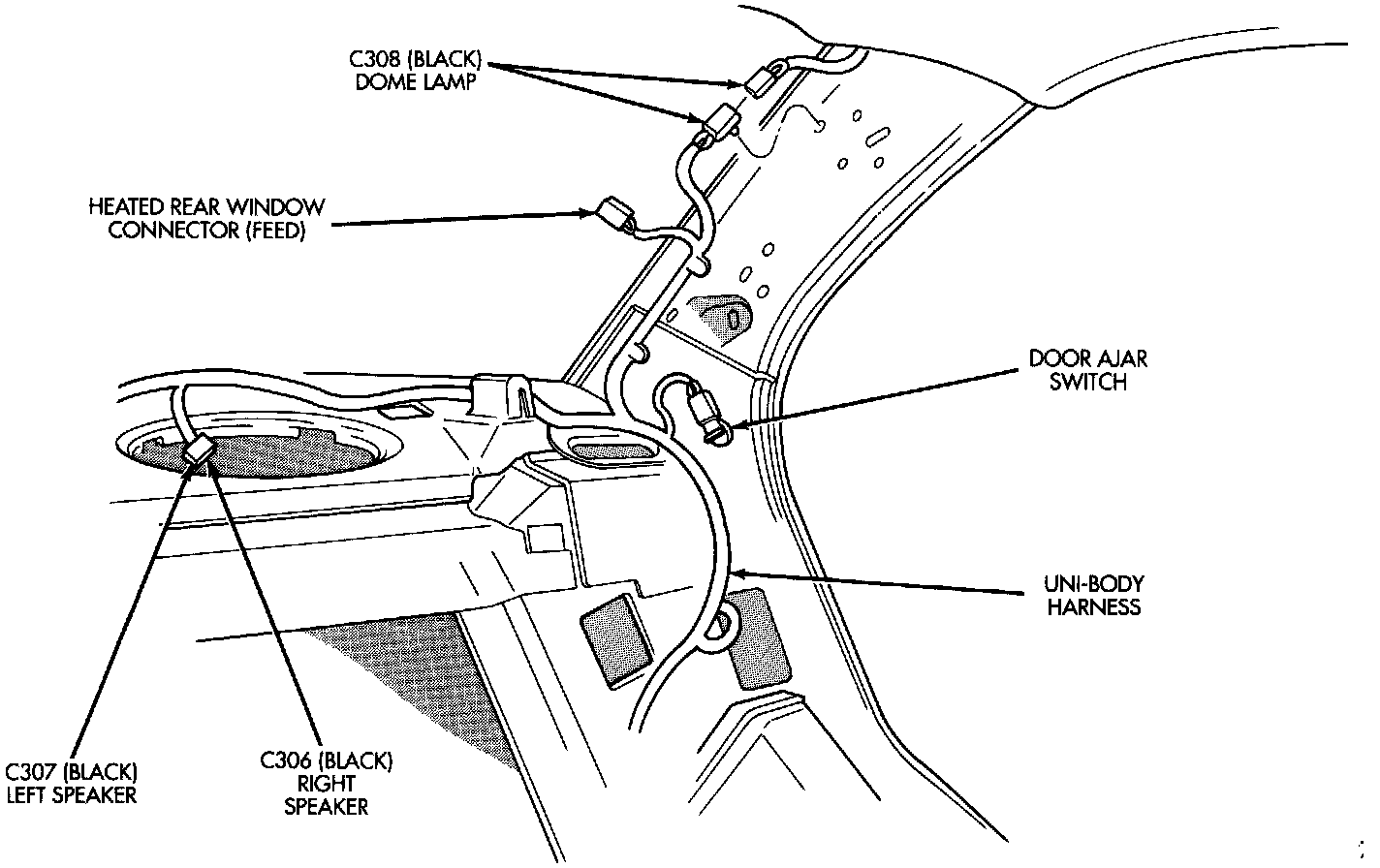

Fig.20 Body Connections (Left Rear):
